Built for larger-diameter hose handling in bulk fluid delivery areas, lube skids, service trucks, washdown stations, and industrial maintenance setups, the Coxreels SMPL-675 Single Hose Spring Rewind Hose Reel provides capacity for a compatible 1" I.D. hose up to 75 ft. As part of the SP Series, this reel is made for single product delivery where higher flow volume, hose storage, and controlled payout matter in daily service work. Rated for 2,000 PSI, the SMPL-675 is a less hose reel for buyers who need to specify their own compatible 1" hose for the fluid, pressure, temperature, and fitting requirements of the job. Its box-style steel frame, reinforced base, self-lubricated flange bearings, stainless steel pinch-proof rollers, cartridge-style spring motor, and multi-position lock ratchet help manage large hose safely and efficiently in shop, vehicle-mounted, and plant utility environments.

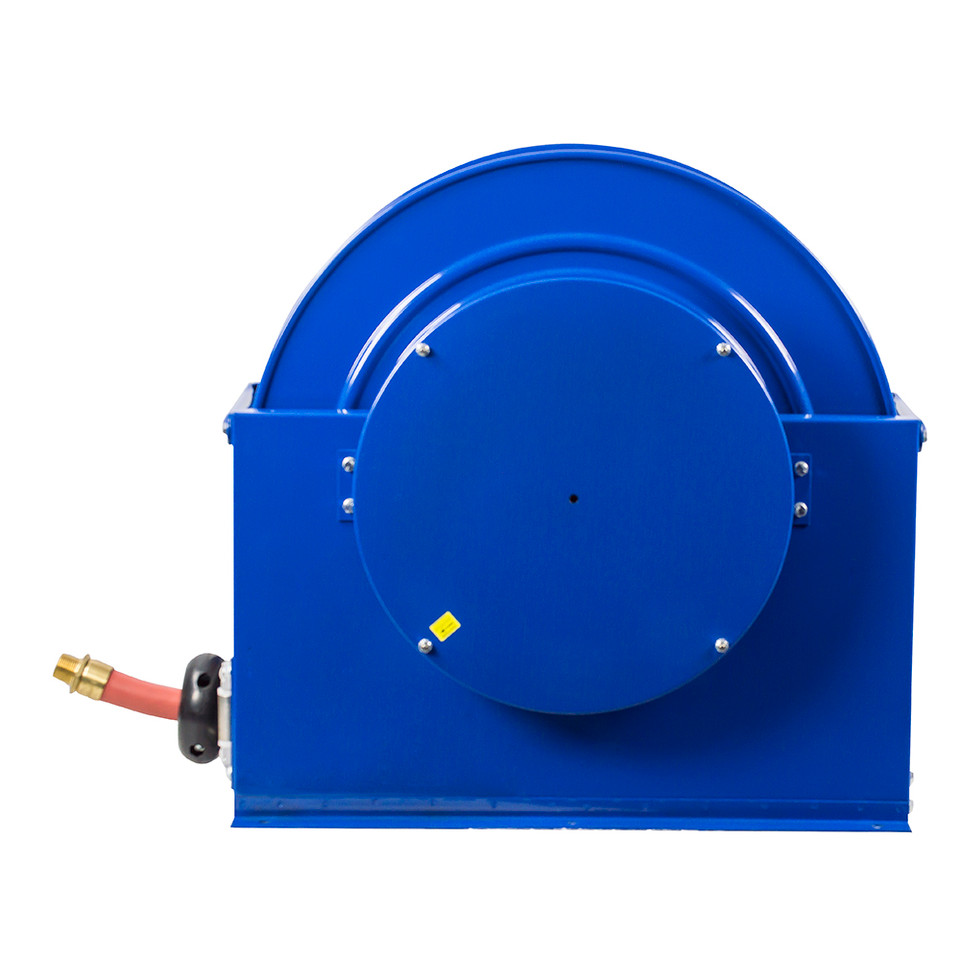

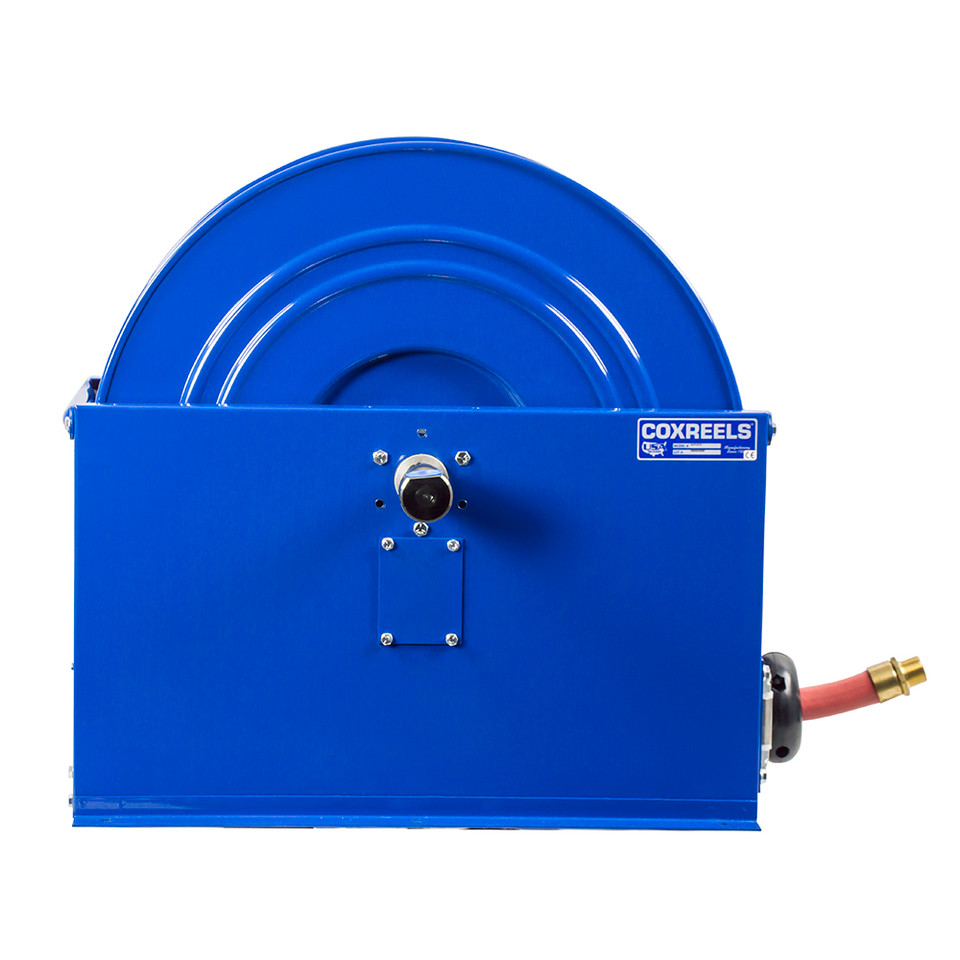

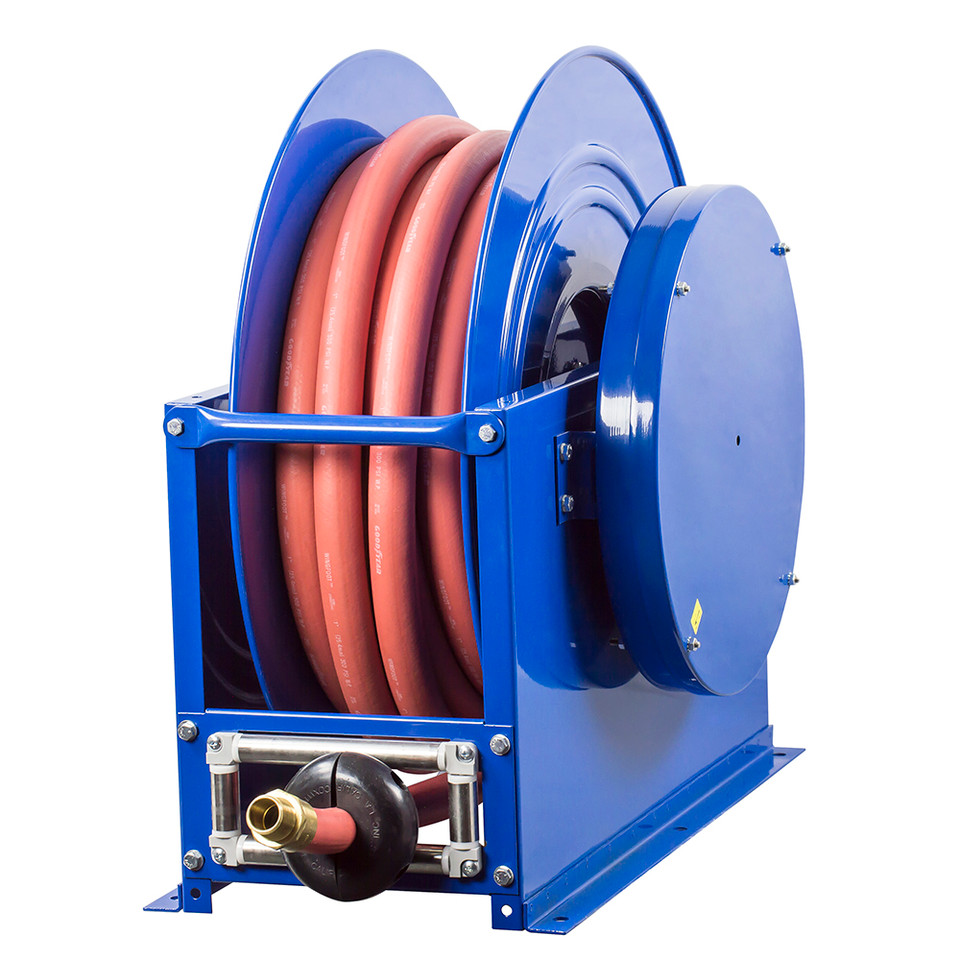

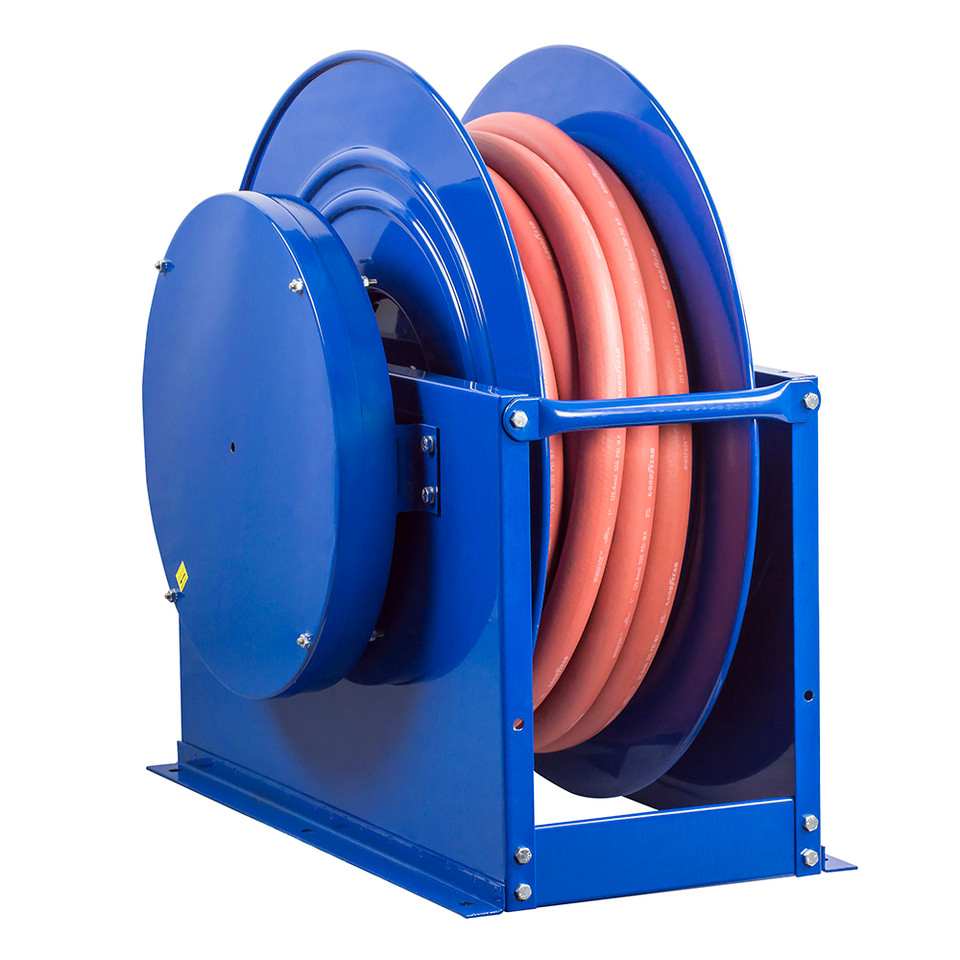

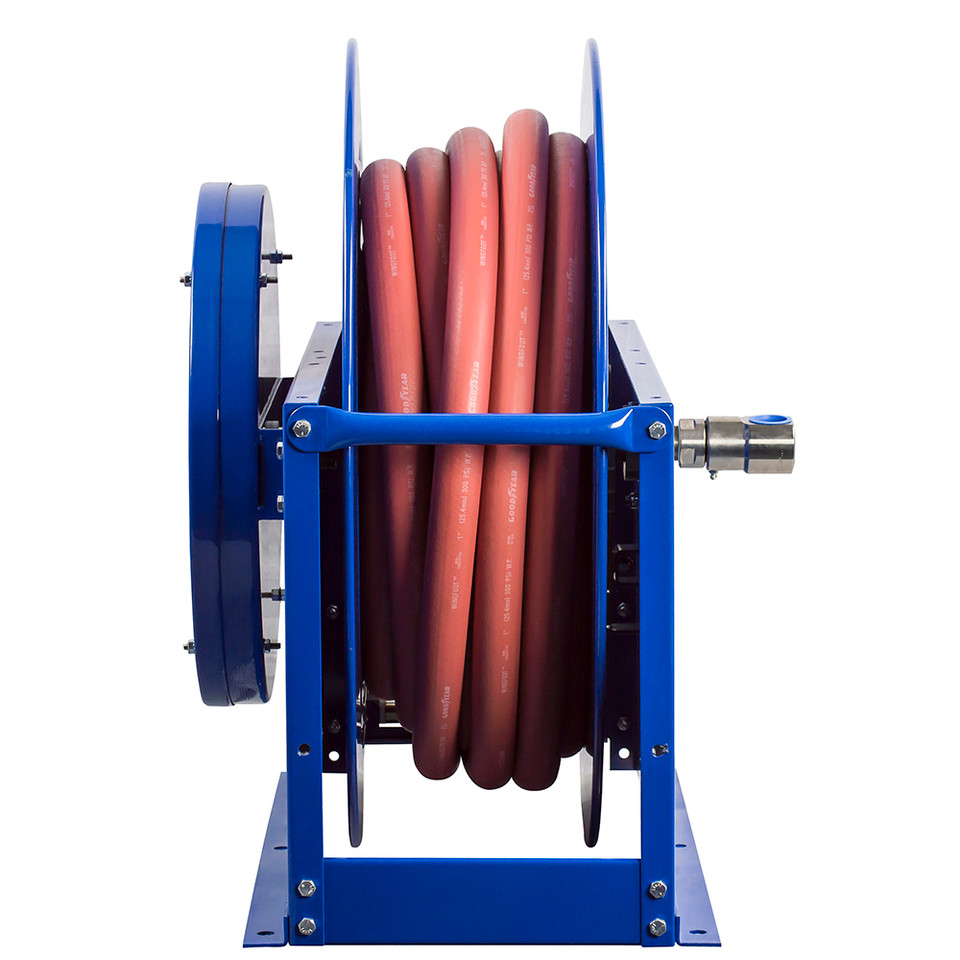

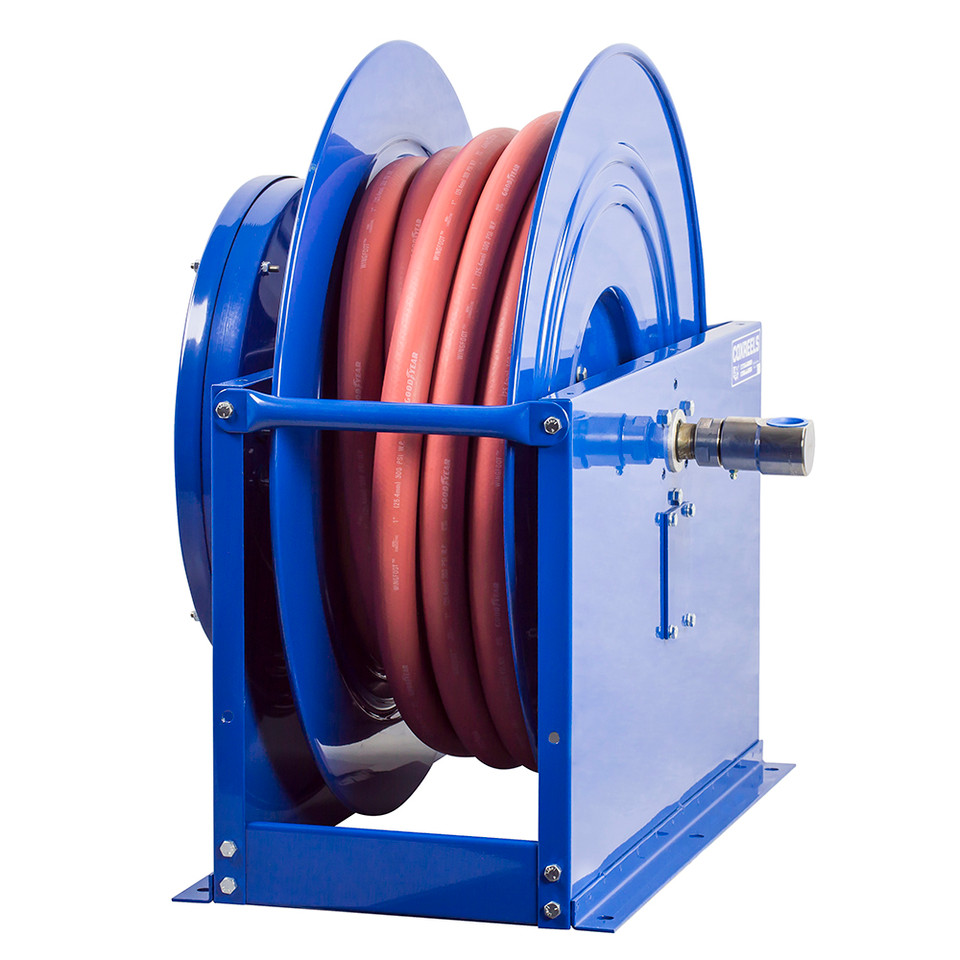

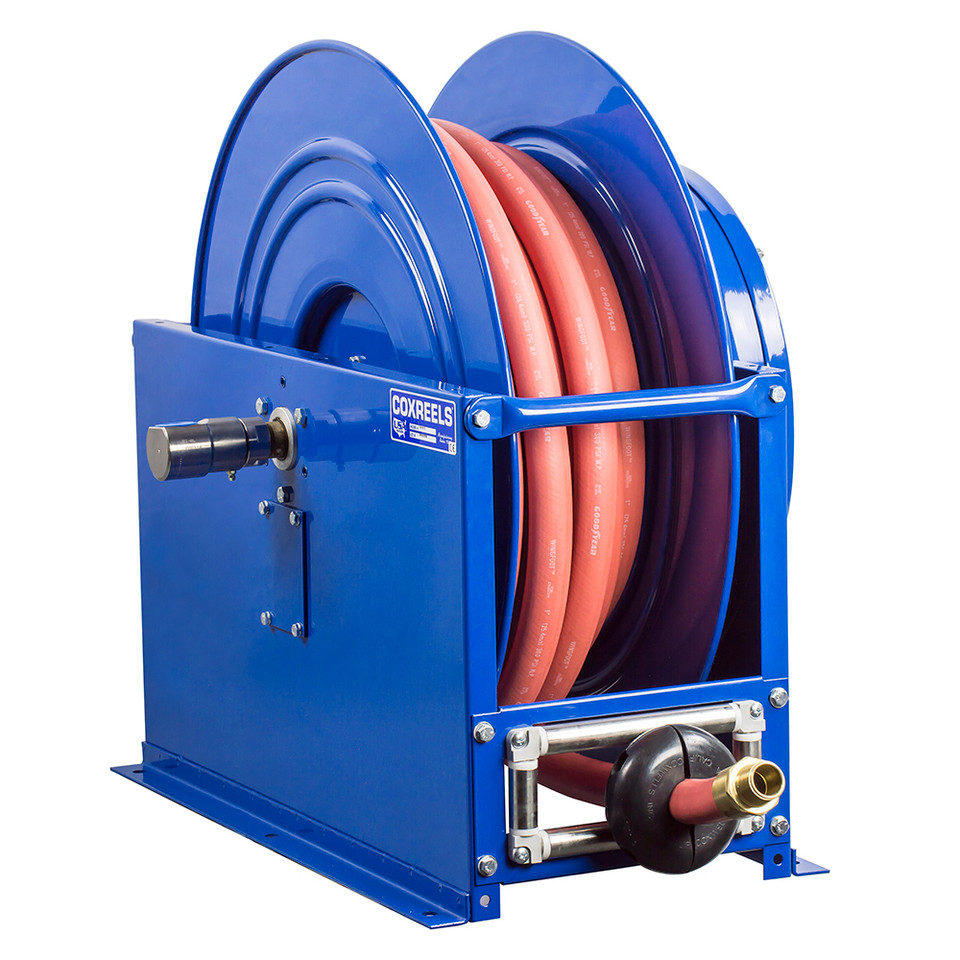

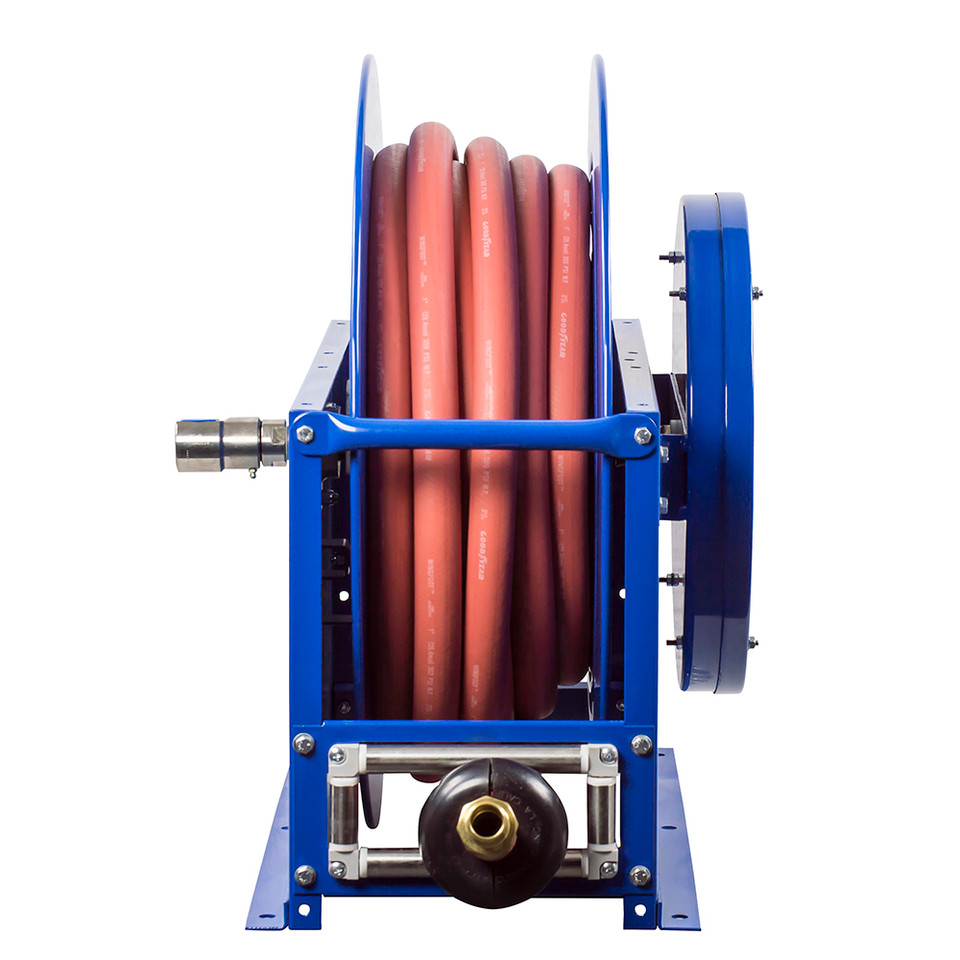

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Model: SMPL-675 | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-3/8" | Hose Capacity: 75 ft | Max Pressure: 2,000 PSI | Hose Included: No | Inlet: 1" FNPT | Swivel Material: Nickel Plated Steel | Maximum Temperature: 250°F | Approx. Ship Weight: 135 lbs
Features:
- SP Series “Single Product Delivery” design is built to handle large hose diameters for large-volume delivery in low and medium pressure applications.
- Less-hose configuration allows the buyer to install a compatible 1" hose selected for the fluid, pressure, temperature, and fitting requirements of the application.
- Sturdy box-style frame includes steel cross supports at all four corners to add strength and rigidity around the reel body.
- External fluid path supports single product delivery while keeping the hose connection accessible for service and installation.
- Adjustable reel mounting supports wall, floor, vehicle, and overhead positions to match the hose pull direction in the work area.
- Heavy gauge steel base and reinforced steel frame provide a stable mounting platform for large-diameter hose.
- Self-lubricated flange bearings support smooth reel rotation during payout and rewind.
- Heavy duty 1" stainless steel pinch-proof rollers help guide the hose and reduce pinch points during use.
- Enclosed factory tuned and matched cartridge-style spring motor supports consistent spring rewind operation.
- Cast iron lock ring with non-sparking bronze pawl and multi-position lock ratchet secures the hose at the desired working length.
Made in USA:
Applications:
- Bulk fluid delivery — managing 1" hose for higher-volume fluid transfer where smaller hose diameters would limit flow.
- Lube skids and service trucks — mounting a large-capacity reel for mobile fluid delivery, equipment service, and field maintenance work.
- Industrial MRO departments — storing large hose off floors near pumps, tanks, utility stations, wash areas, and maintenance bays.
- Fleet and equipment service areas — organizing hose around trucks, trailers, off-road equipment, and shop service points.
- Construction, mining, railroad, and utility operations — supporting hose management on fixed workstations, maintenance trailers, and rugged service sites.
FAQs:
- Q: What does “less hose” mean on the Coxreels SMPL-675?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1" I.D. hose that matches the reel capacity, 2,000 PSI pressure rating, fluid type, fittings, and temperature requirements. - Q: What is the SP Series used for?
A: Coxreels SP Series reels are built for single product delivery with larger hose diameters. They are commonly used where higher flow volume is needed in low or medium pressure applications, including fluid delivery, washdown, lubrication, and mobile service work. - Q: Is this reel supplied with hose like the SMP-675?
A: No. The SMPL-675 is the less-hose version. It is intended for customers who want to choose and install their own compatible 1" hose rather than use a factory-supplied hose assembly. - Q: Can this reel be mounted on a service truck or skid?
A: Yes. The reel can be mounted in wall, floor, vehicle, or overhead positions when properly supported. The mounting structure must handle the reel weight, hose weight, fluid load, and pull forces created during use. - Q: Can the SMPL-675 be used for fuel, oil, or water?
A: This reel is used in single product delivery applications where the hose, fittings, seals, and swivel are compatible with the fluid being handled. Always verify the selected hose assembly and system components before using the reel for fuel, oil, water, or specialty fluids.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | INLET/OUTLET N.P.T. | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | |||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1- 1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1- 1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1- 1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose | 1-1/4" | 1- 13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| Please consult factory for reels with hose | 1- 1/4" | 1- 13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 |
| MEDIUM PRESSURE | |||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1- 1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1- 1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1- 1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
