Coxreels SLPL-850 single hose spring rewind hose reel is designed to provide efficient hose storage, controlled deployment, and automatic retrieval for compressed air, water, and other compatible low-pressure fluid transfer applications. As part of the SP Series, this reel is designed to accommodate a 1-1/2-inch hose with a 50-foot hose capacity and a maximum operating pressure of 250 PSI. Supplied in a Less Hose configuration, it allows users to install a compatible hose that best matches their equipment and application requirements.
The spring rewind mechanism automatically retracts the hose after use, helping reduce manual handling while minimizing hose kinking, abrasion, and tangling. By keeping the hose neatly stored and readily accessible, the reel helps improve workplace organization, reduce trip hazards, and extend hose service life in industrial plants, maintenance facilities, and commercial operations where dependable hose management is essential.

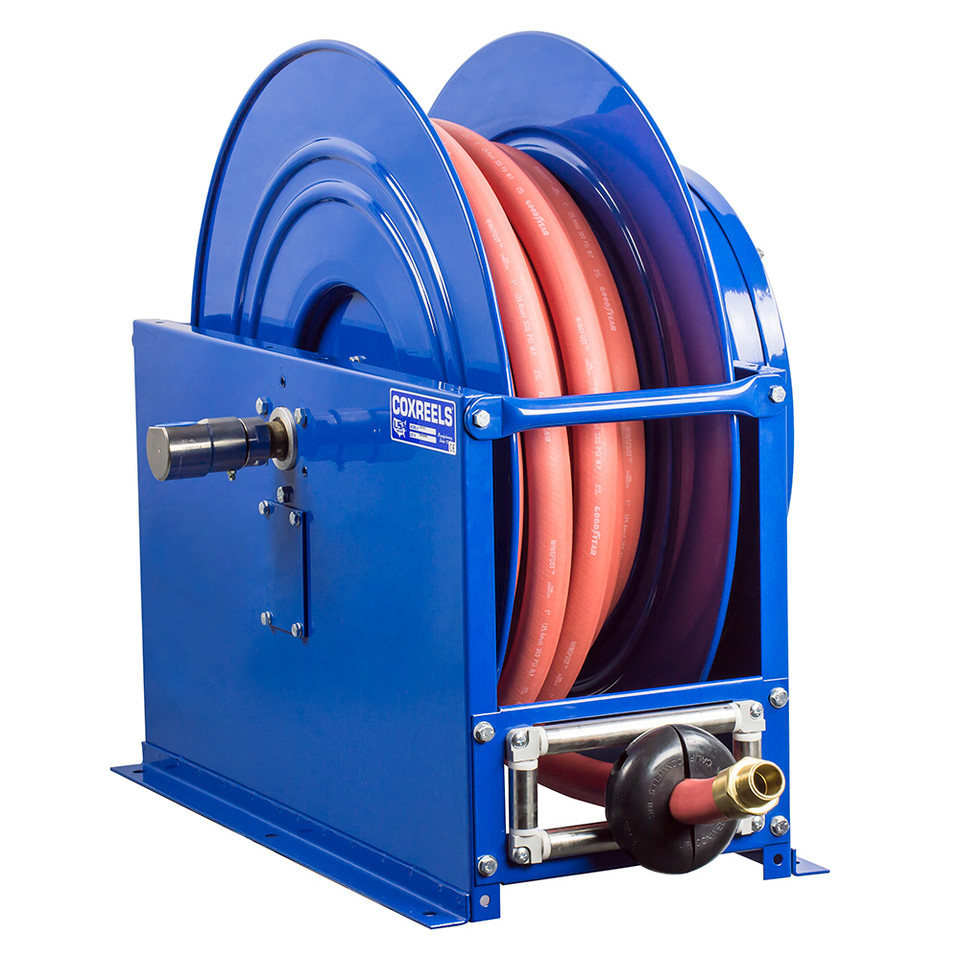

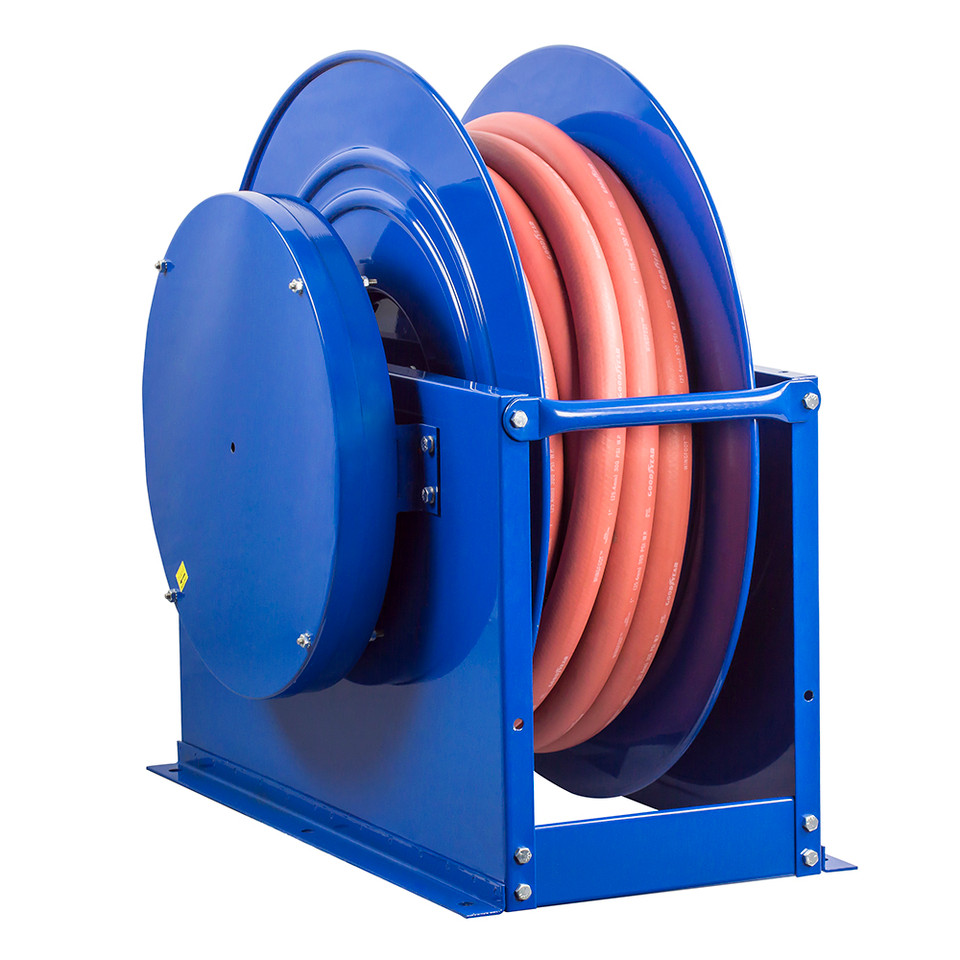

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Model: SLPL-850 | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose Capacity: 50 ft | Maximum Pressure: 250 PSI
Features:
- Spring rewind mechanism automatically retracts the hose for fast and efficient hose management.
- Designed to accommodate up to 50 feet of 1-1/2-inch hose.
- 250 PSI maximum operating pressure supports compatible low-pressure air and fluid transfer applications.
- Less hose configuration allows users to install a hose suited to their specific equipment and operating requirements.
- Automatic hose retrieval helps reduce hose kinking, abrasion, tangling, and unnecessary hose wear.
- SP Series construction promotes organized hose storage while helping maintain a cleaner and safer work environment.
Made in USA:
Applications:
- Compressed air distribution systems.
- Water transfer and washdown operations.
- Industrial manufacturing and maintenance facilities.
- Fleet maintenance and equipment service centers.
- Commercial and municipal facilities requiring organized hose management.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose. A compatible 1-1/2-inch hose must be installed separately. - Q: How much hose can this reel accommodate?
A: This model is designed to hold up to 50 feet of 1-1/2-inch hose. - Q: How does the spring rewind mechanism work?
A: An internal spring automatically retracts the hose after use, helping keep the hose neatly stored while reducing manual handling. - Q: What is the maximum operating pressure?
A: The reel is rated for applications up to 250 PSI when used with compatible hose and system components.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | INLET/ OUTLET N.P.T. |
APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Dual braid hose for applications 250 to 300 psi and temperatures to 150° F. Reel less hose 250° F. For higher temperatures and pressures, see price sheet or consult factory.
|
|||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1-1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1-1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1-1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose |
1-1/4" | 1-13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| 1-1/4" | 1-13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 | |
| 1-1/2" | 2-1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 | |
| 1-1/2" | 2-1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 | |
| 1-1/2" | 2-1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 | |
|
MEDIUM PRESSURE Steel reinforced 100 R1 hose for applications 1500 to 2500 psi and temperatures to 250° F. For higher temperatures and pressures, see price sheet or consult factory.
|
|||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1-1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1-1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1-1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose |
1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 | |
| 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 | |
Looking for more information about the Coxreels Hose Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Hose Reels, please call (800) 608-5210 or email info@intlairtool.com
