Built for high-capacity hose storage in fuel, water, and medium-pressure transfer applications, the Coxreels SMPL-650 SP Series Spring Rewind Hose Reel provides capacity for 50 ft of 1" I.D. hose with a 2,000 PSI maximum pressure rating. This SP Series reel is supplied less hose, giving buyers the ability to select a hose assembly that matches the fluid, pressure, temperature, fitting, and installation requirements of the job. The larger 1" hose capacity makes this reel a strong fit for applications where flow volume matters more than compact reel size. Coxreels SP Series “Single Product Delivery” reels are built to handle large hose diameters in low and medium pressure service. The SMPL-650 uses a reinforced box-style steel frame with cross supports to all four corners, helping keep the reel stable during hose pull-out and rewind. For service trucks, bulk fluid stations, equipment yards, and maintenance facilities, this less-hose reel offers a flexible platform for organizing larger hose while allowing the buyer to specify the exact hose type needed for the application.

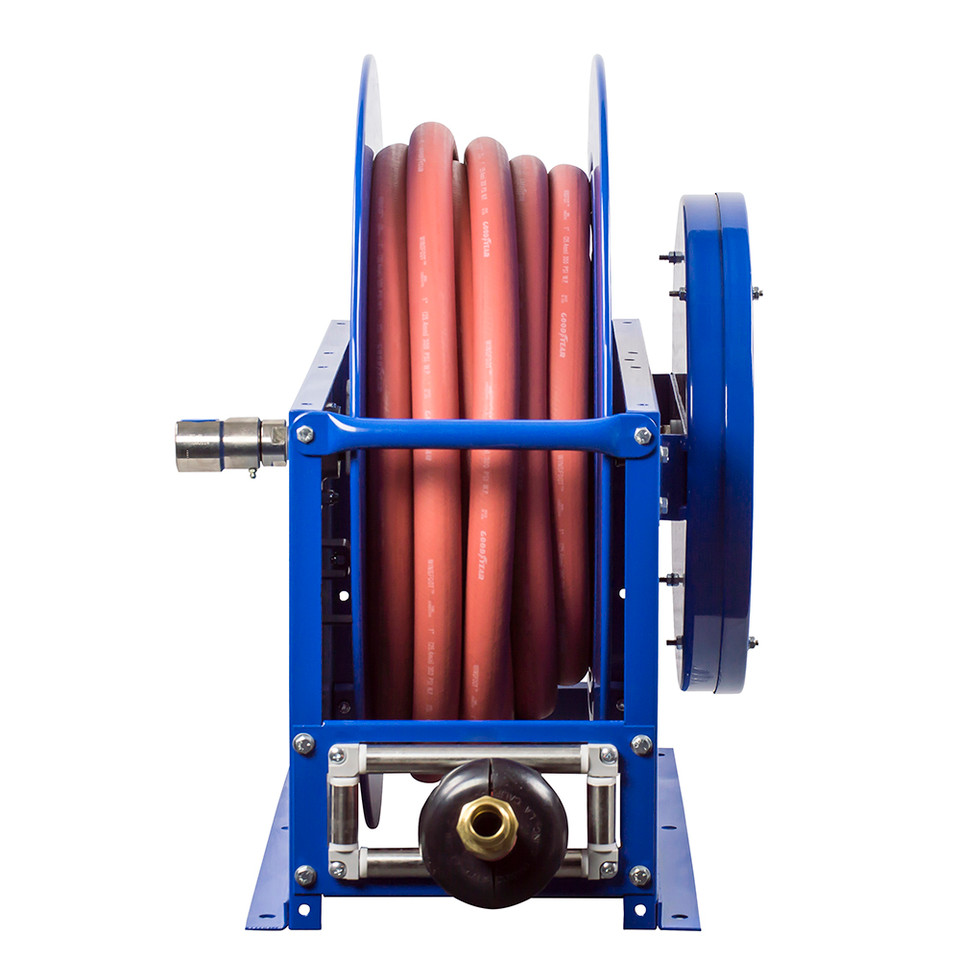

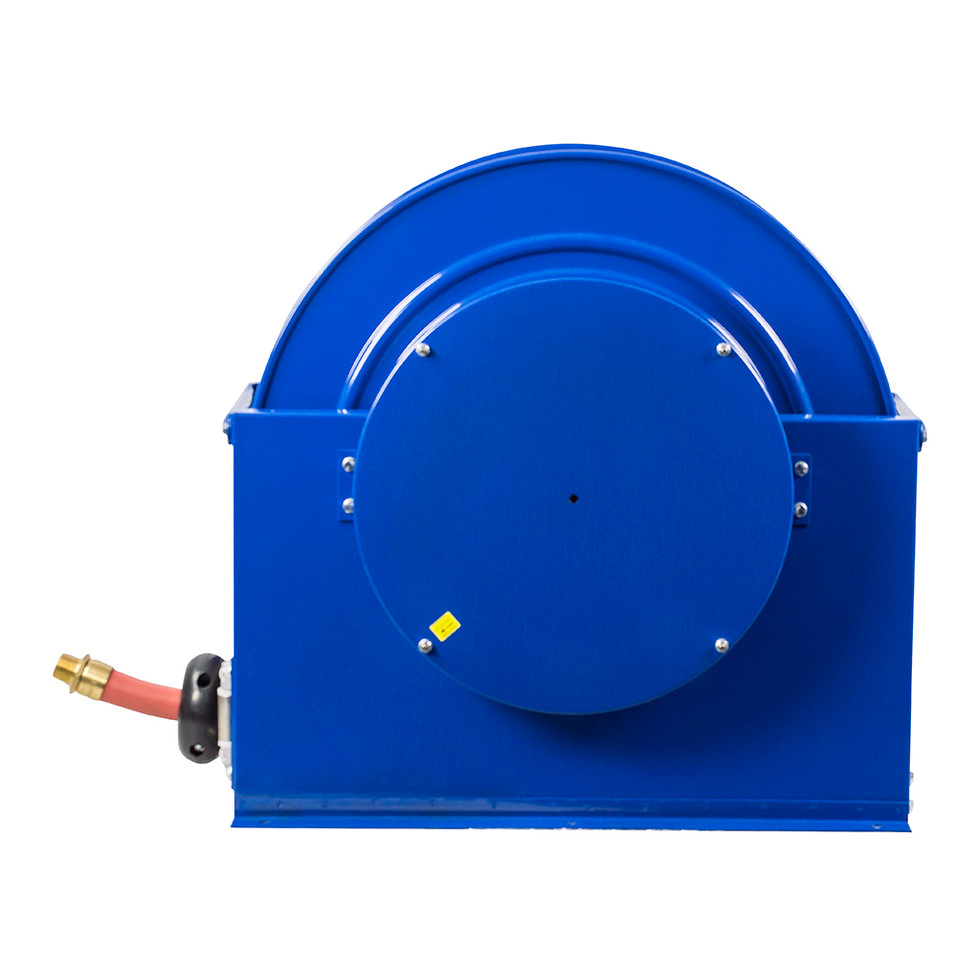

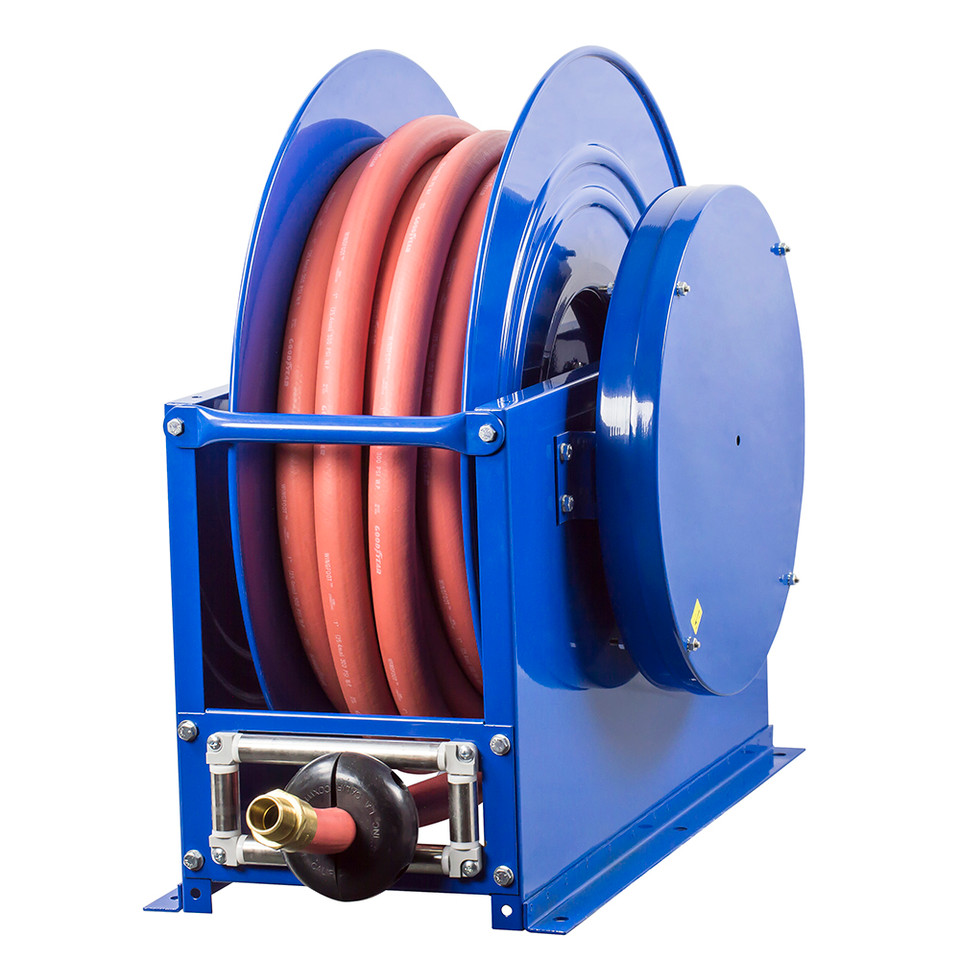

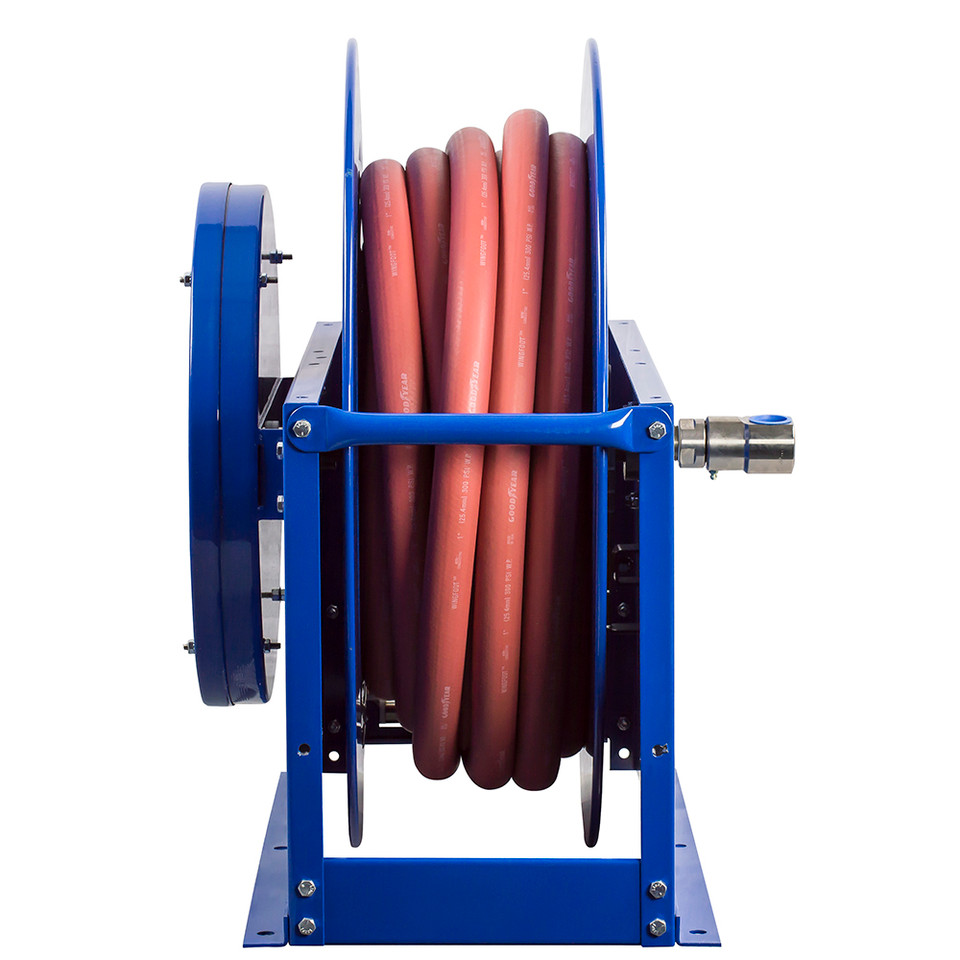

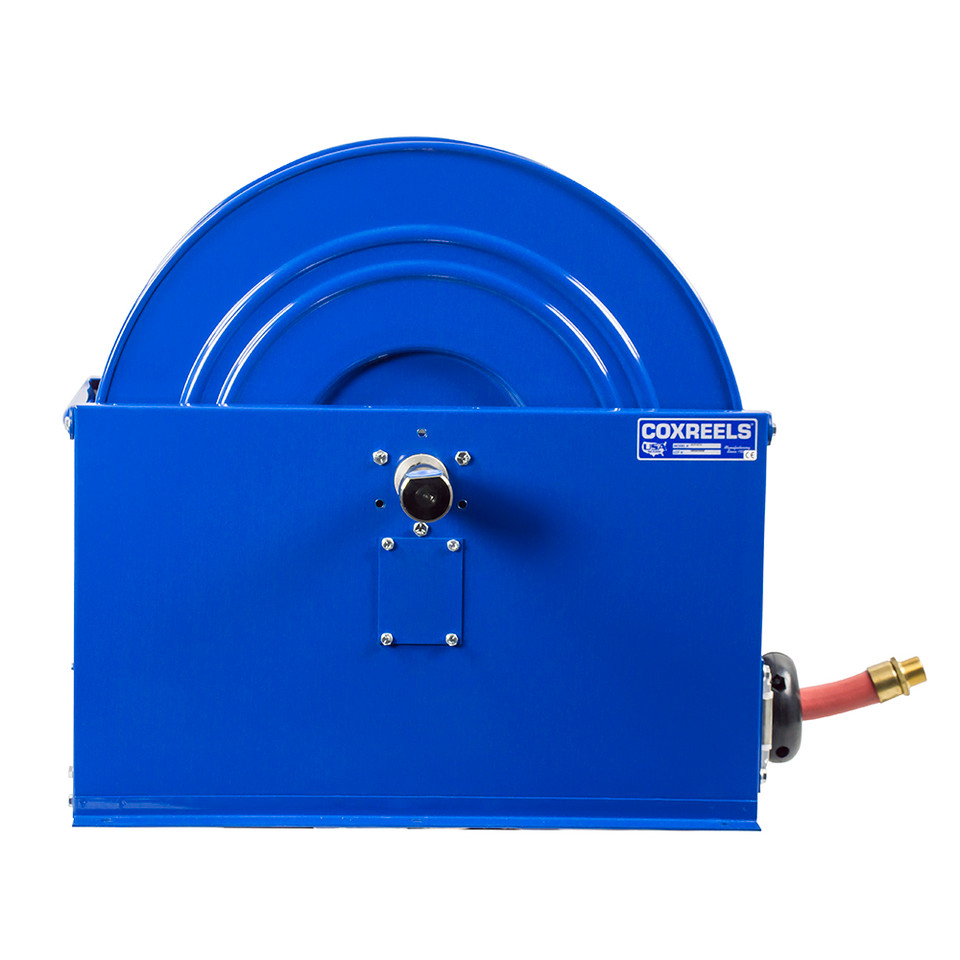

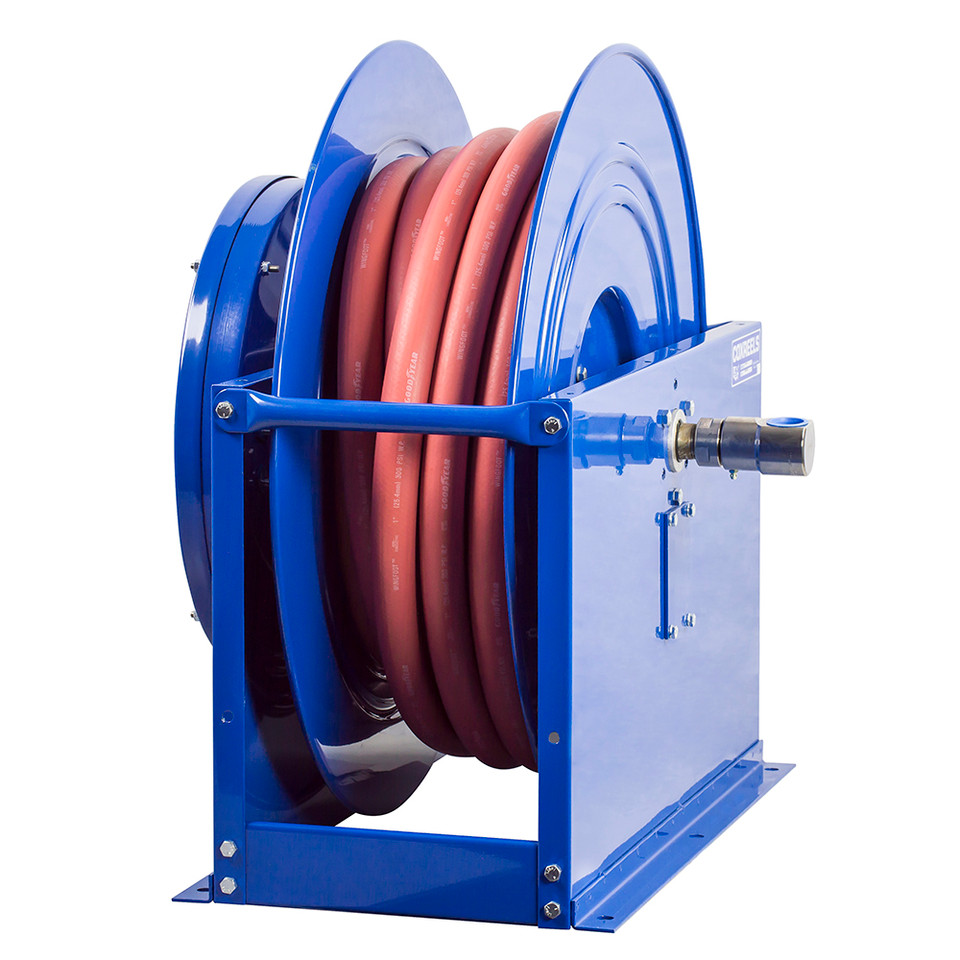

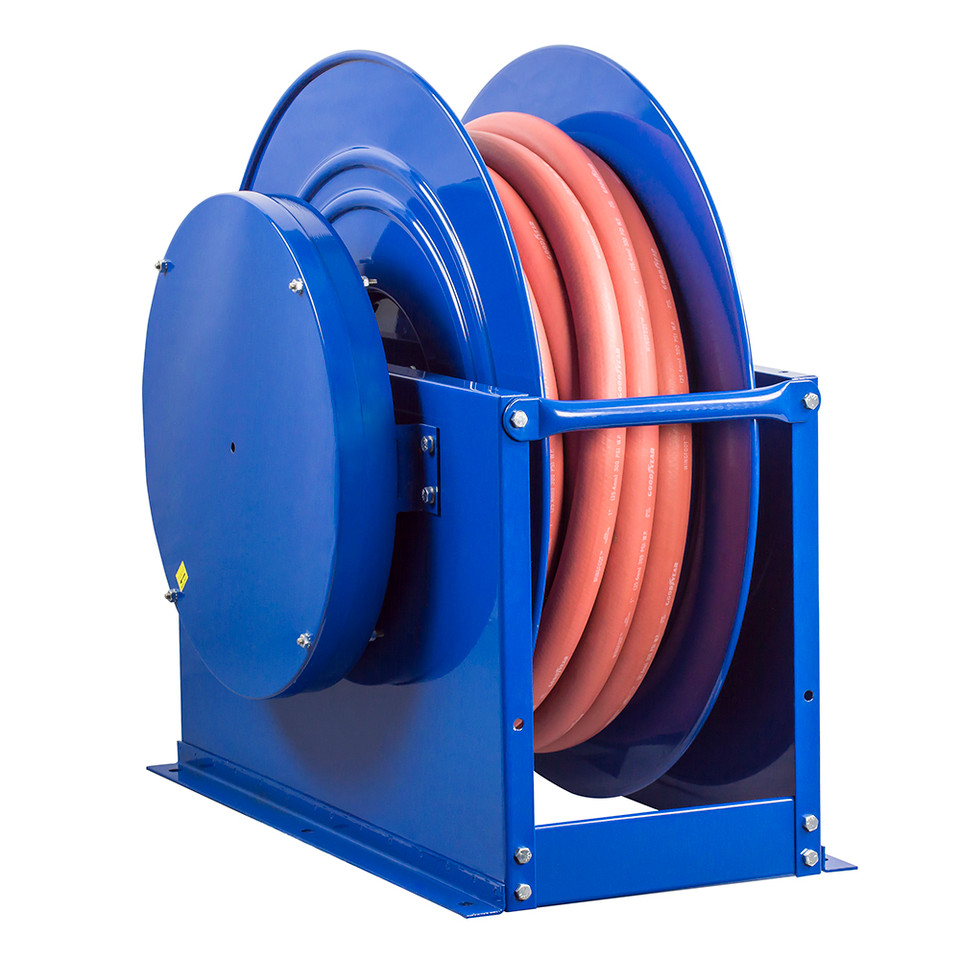

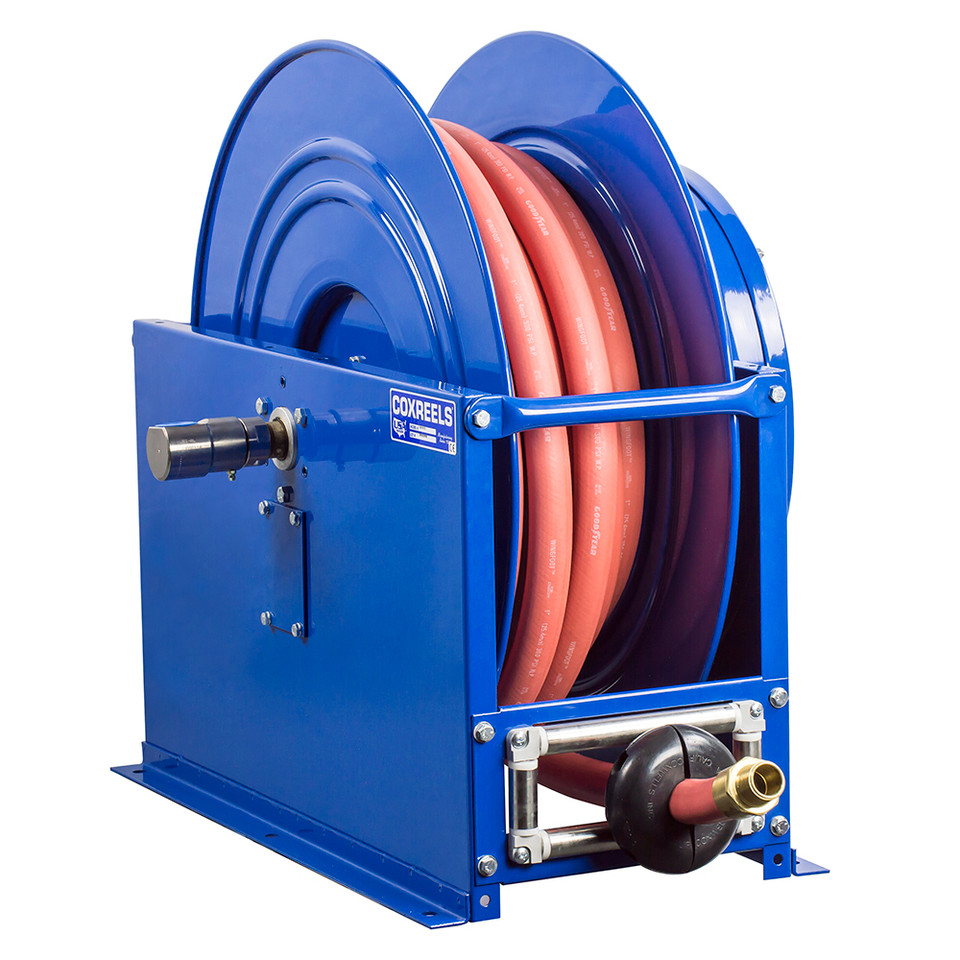

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: SP Series | Configuration: Less Hose | Model: SMPL-650 | Hose I.D.: 1" | Hose Capacity: 50 ft | Max Pressure: 2,000 PSI | Service: Fuel, Water | Inlet/Outlet: 1" NPT | Swivel: Electroless Nickel Plated Steel 90° Full-Flow NPT Swivel | Swivel Seals: AFLAS | Hose Included: No | Frame: Reinforced Box-Style Steel Frame | Finish: CPC Powder Coat | Approx. Weight: 110 lbs | Overall Dimensions: 21" W x 28-1/2" H x 30.38" L | Base Size: 15.38" x 25" | Mounting Pattern: 14" x 22"
Features:
- SP Series “Single Product Delivery” design handles large hose diameters for large-volume fuel and water transfer applications.
- Less-hose configuration allows the buyer to select the hose material, length, pressure rating, and fitting arrangement required for the system.
- Sturdy box-style reinforced steel frame includes heavy gauge steel cross supports to all four corners for added rigidity.
- Electroless nickel plated steel 90° full-flow NPT swivel on 1" models supports flow while allowing seal maintenance and hose installation without removing the reel from its mount.
- AFLAS swivel seals support compatible fuel and fluid transfer applications when the selected hose and system components are properly matched.
- Heavy duty CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during storage and rewind.
- Heavy duty 1" stainless steel pinch-proof rollers help guide the hose and reduce pinch points during reel operation.
- Lubricated and enclosed cartridge-style spring motor is removable for safer and more convenient service.
- Coxreels CPC powder coat finish helps resist chips and corrosion in truck, shop, and outdoor service environments.
Made in USA:
Applications:
- Fuel transfer stations — managing 1" hose for bulk dispensing setups where larger hose diameter supports higher-volume delivery.
- Water transfer and utility service — storing large-diameter hose for washdown, filling, drainage, and general water handling tasks within the reel rating.
- Fleet service and equipment yards — mounting a less-hose reel on service areas, trailers, or fixed stations where hose selection must match the fluid system.
- Industrial maintenance departments — organizing medium-pressure hose in plant utility areas, repair bays, and equipment service zones.
- Agricultural and municipal service work — supporting vehicle-mounted or shop-mounted hose storage for transfer applications that require longer reach and larger flow capacity.
FAQs:
- Q: Does the Coxreels SMPL-650 include hose?
A: No. The SMPL-650 is a less-hose reel, meaning the reel is supplied without hose installed. The buyer must provide a compatible 1" I.D. hose rated for the fluid, pressure, temperature, and fittings used in the system. - Q: What is the SP Series used for?
A: Coxreels SP Series reels are “Single Product Delivery” reels built for large hose diameters. They are commonly used where larger-volume delivery is needed in low and medium pressure service, such as fuel and water transfer. - Q: What pressure is the SMPL-650 rated for?
A: The reel is rated for 2,000 PSI maximum pressure. The installed hose, fittings, swivel, and complete fluid system must all be suitable for the actual operating pressure. - Q: Why choose a less-hose reel?
A: A less-hose reel is useful when the application requires a specific hose material, end fitting, temperature rating, or fluid compatibility. It gives maintenance teams and equipment builders more control over the final hose assembly. - Q: Can this reel be mounted on a truck or fixed station?
A: Yes, the reinforced SP Series frame can be used in vehicle-mounted or stationary installations when properly supported. Check the listed base size and mounting pattern against the mounting surface before installation.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | INLET/OUTLET N.P.T. | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | |||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1- 1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1- 1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1- 1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose | 1-1/4" | 1- 13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| Please consult factory for reels with hose | 1- 1/4" | 1- 13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 |
| MEDIUM PRESSURE | |||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1- 1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1- 1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1- 1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 |
