Coxreels SMPL-4100 Single Hose Spring Rewind Hose Reel | SP Series | 1/2" Hose Diameter | 100' Hose Length | 2500 Max PSI | Less Hose

Built for medium-pressure hose handling where long reach and organized storage matter, the Coxreels SMPL-4100 is a single hose spring rewind hose reel from the SP Series “Single Product Delivery” lineup. This reel is configured for 1/2" I.D. hose with up to 100 ft of capacity, giving lubrication bays, fuel dispensing areas, fleet shops, and industrial service points the reach needed for larger work zones without leaving hose loose across the floor.

Rated for 2500 PSI, the SMPL-4100 supports medium-pressure applications when paired with a compatible customer-supplied hose, fittings, and fluid path. Its spring rewind mechanism stores hose automatically after use, while the SP Series box-style frame and cross-supported steel construction help the reel stay stable during repeated pull-out and rewind cycles in oil, lubrication, water, and other approved medium-pressure service environments.

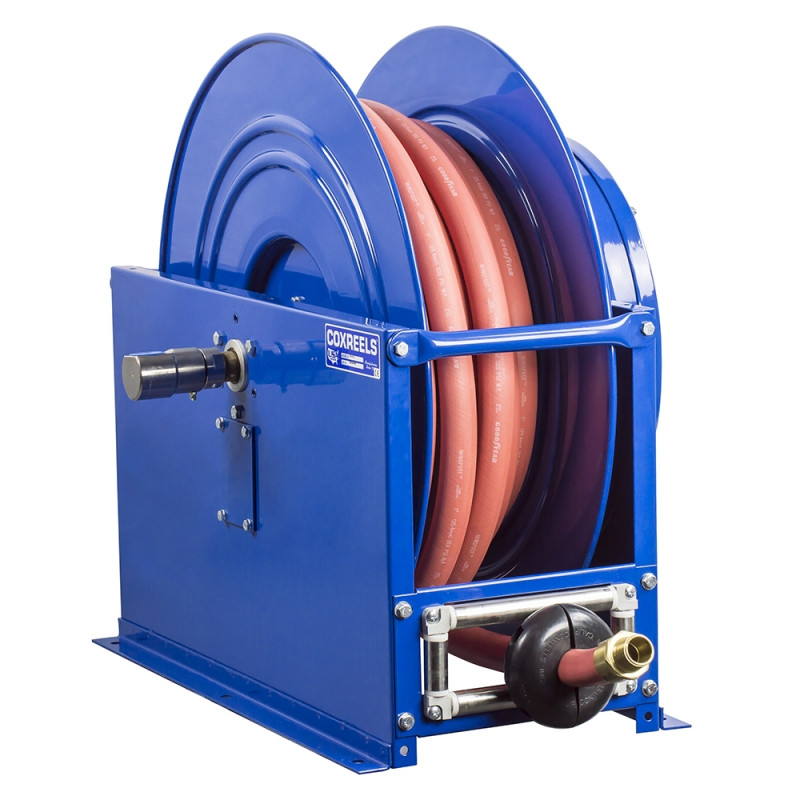

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Capacity: 100 ft | Max Pressure: 2500 PSI | Inlet/Outlet: 1/2" NPT | Swivel: Machined solid brass 90° full-flow NPT swivel inlet | Swivel Seals: Nitrile | Ship Weight: 113 lbs | Overall Dimensions: 18.5" W x 20.5" H x 22.88" L | Mounting Pattern: 14" M x 18.5" N | Base: 15.38" X x 21.5" Y

Features:

• SP Series “Single Product Delivery” construction handles larger hose diameters used in low and medium-pressure fluid delivery.
• Spring driven rewind automatically retrieves hose after use, helping reduce manual coiling and improve work area organization.
• Machined solid brass 90° full-flow NPT swivel inlet supports smooth fluid transfer and allows seal maintenance without removing the reel from its mount.
• Nitrile swivel seals support the listed medium-pressure service range when matched with compatible fluids and hose materials.
• Box-style frame with steel cross supports at all four corners adds rigidity for repeated hose pull-out and rewind cycles.
• Reel adjusts to wall, floor, vehicle, and overhead mounting positions to suit shop layouts, service vehicles, and fixed dispensing points.
• Heavy gauge 1/4" steel base provides a stable mounting foundation for the reel and hose load.
• Enclosed factory-tuned cartridge-style spring motor is lubricated and removable for service access.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during dispensing.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and service bays for dispensing medium-pressure oil, lubrication fluids, or compatible service fluids across longer work areas.
• Industrial MRO departments that need a 100 ft hose capacity for equipment service, machinery maintenance, and centralized fluid handling points.
• Fuel and water delivery stations where a spring rewind reel helps keep hose stored cleanly between dispensing cycles.
• Mobile service trucks and utility vehicles requiring a high-capacity reel body with wall, floor, vehicle, or overhead mounting flexibility.
• Manufacturing and process support areas where controlled hose storage helps reduce floor clutter around pumps, tanks, and service equipment.

FAQs:

• Q: What does “less hose” mean for the SMPL-4100?
  A: It means the reel is supplied without hose installed. The buyer must install a compatible hose separately, staying within the listed 1/2" I.D., 13/16" O.D., 100 ft capacity, and 2500 PSI pressure rating.
• Q: Is the SMPL-4100 a low-pressure or medium-pressure hose reel?
  A: This model is a medium-pressure SP Series reel rated to 2500 PSI. Confirm that the selected hose, fittings, and fluid are all suitable for the working pressure of the system.
• Q: Can this reel be used for oil or lubrication service?
  A: Yes, this reel is commonly selected for oil and lubrication handling when the installed hose and seals are compatible with the fluid being dispensed. Always verify chemical compatibility before installation.
• Q: What hose size should be installed on this reel?
  A: The reel is sized for 1/2" I.D. hose with a maximum 13/16" O.D. if the full 100 ft capacity is needed. Larger outside diameters may reduce the amount of hose the reel can safely hold.
• Q: Can this reel be mounted on a service truck?
  A: Yes, the SP Series reel can be mounted in vehicle positions when the mounting surface is properly reinforced. Account for the reel weight, hose weight, fluid load, and pull forces before final installation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
