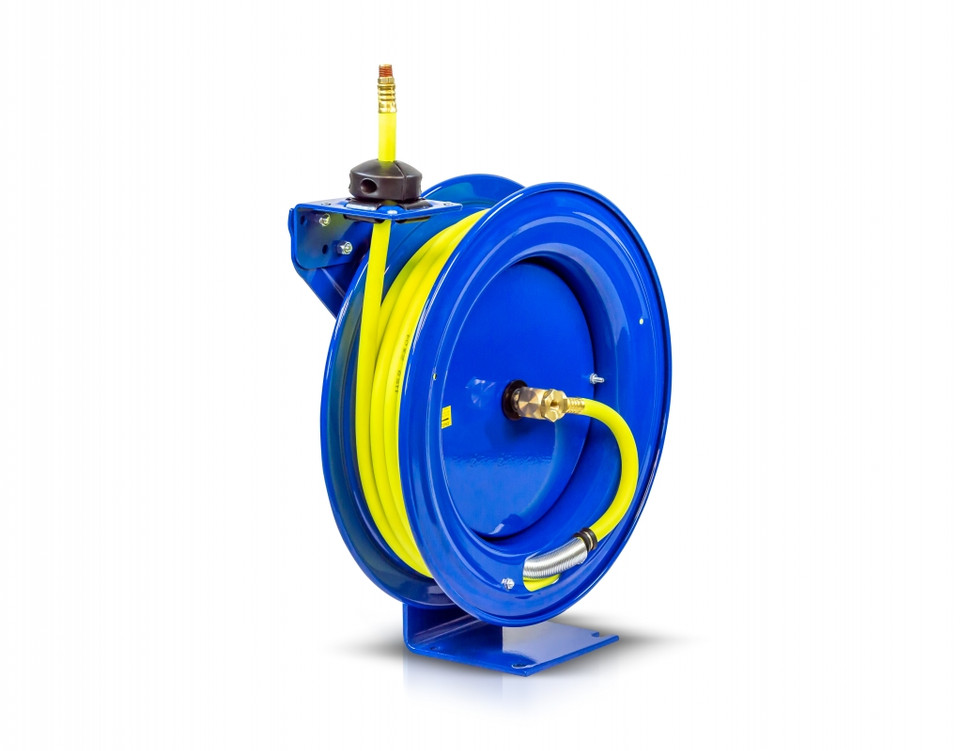

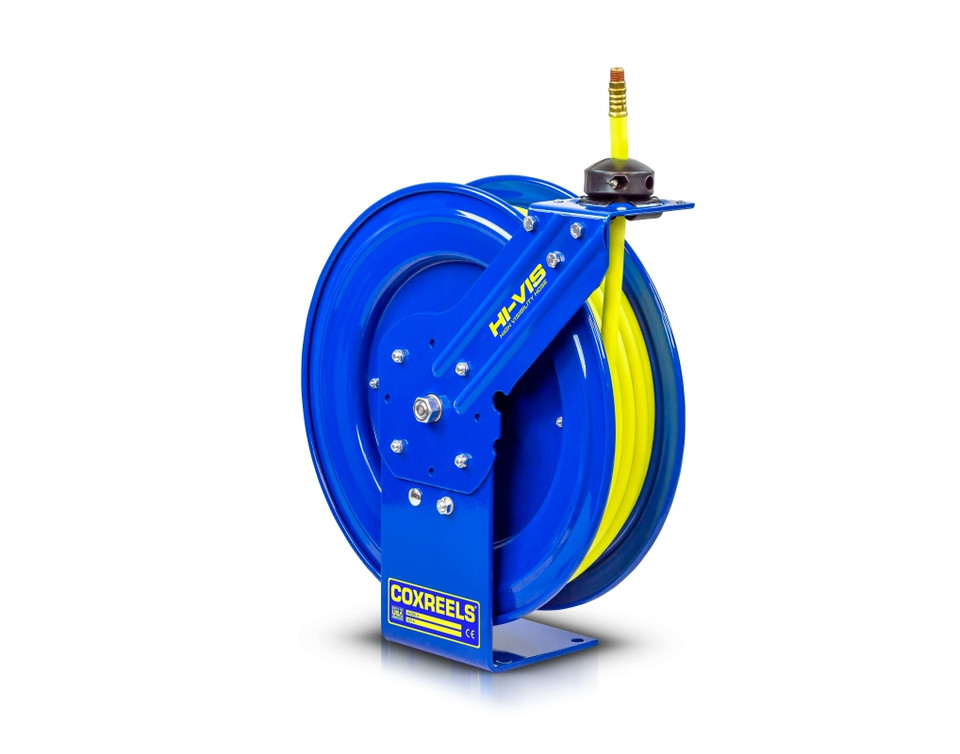

Coxreels P-LP-350-HV Performance HV Spring Rewind Hose Reel combines automatic hose retrieval with a high-visibility hose for commercial and industrial hose-management applications. This P-HV Series model includes 50 ft of 3/8 in. I.D. hose and carries a 300 PSI maximum working pressure. The spring rewind system returns the hose to the reel after use, while the bright hose increases visibility around active work areas.
The included hose measures 5/8 in. O.D. and is intended for air or water service with a manufacturer-listed maximum temperature of 150°F. With an approximate weight of 43 lbs, a 6-3/4 in. reel width, and a 4 in. x 5 in. mounting pattern, the P-LP-350-HV provides 50 ft of hose capacity in a comparatively narrow installation footprint.
Type: Spring Rewind Hose Reel | Series: P-HV Series | Model: P-LP-350-HV | Hose Included: Yes | Hose I.D.: 3/8 in. | Hose O.D.: 5/8 in. | Hose Length: 50 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water | Overall Width (W): 6-3/4 in. | Overall Height (H): 18-5/8 in. | Overall Length (L): 17-1/8 in. | Base Dimensions (X x Y): 6 in. x 6 in. | Mounting Pattern (M x N): 4 in. x 5 in.
Features:
- Spring-driven rewind automatically retrieves the hose after use.
- Includes 50 ft of 3/8 in. I.D. x 5/8 in. O.D. high-visibility hose.
- Bright yellow hose with a white glossy stripe increases visibility around the work area.
- 300 PSI maximum working pressure supports manufacturer-approved air and water applications.
- Included hose is rated for a maximum operating temperature of 150°F.
- Narrow 6-3/4 in. reel width helps conserve lateral mounting space.
- 4 in. x 5 in. mounting pattern provides the manufacturer-published installation reference.
Made in USA:
Applications:
- Air hose management within the reel and included hose ratings.
- Water hose management within the published pressure and temperature limits.
- Work areas where increased hose visibility is beneficial.
- Commercial and industrial installations requiring automatic spring rewind.
FAQs:
- Q: Does the Coxreels P-LP-350-HV include hose?
A: Yes. Coxreels lists this model with 50 ft of 3/8 in. I.D. x 5/8 in. O.D. high-visibility hose. - Q: What is the maximum working pressure?
A: The manufacturer rates the P-LP-350-HV for a maximum working pressure of 300 PSI. - Q: What services are listed for the included hose?
A: Coxreels lists models with hose in this low-pressure series for air or water service. - Q: What is the maximum hose temperature?
A: The manufacturer lists a maximum temperature of 150°F for models supplied with hose. - Q: What mounting space does the reel require?
A: The reel measures 6-3/4 in. wide, 18-5/8 in. high, and 17-1/8 in. long. Its mounting pattern measures 4 in. x 5 in.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- P-HV Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 50
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- Yes
- Width (in.)
- 6.75
- Height (in.)
- 18.63
- Length (in.)
- 17.33
- Mounting Pattern (in.)
- 4M
- Mounting Pattern (in.)
- 5N
- Base (in.)
- 6X
- Base (in.)
- 6Y
