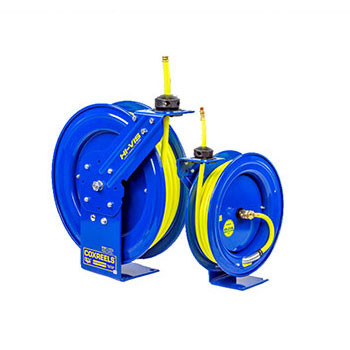

Built for controlled hose retraction in busy air and water service areas, the Coxreels EZ-SH-350-HV EZ-Coil spring rewind hose reel combines a 3/8" I.D. x 50 ft high-visibility hose with a 300 PSI pressure rating for shop air, utility water, maintenance, and service bay use. The EZ-Coil system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the operator better control when the hose returns to the reel.
The SH HI-VIS configuration uses a bright yellow hybrid hose with a white glossy stripe to improve hose awareness on active floors, walk paths, and vehicle lanes. Its Super Hub dual axle support system helps stabilize the reel during payout and rewind, while the multi-position lock ratchet lets the user secure the hose at the required working length. This makes the EZ-SH-350-HV a practical choice where hose visibility, controlled retraction, and compact 50 ft reach are all important.
Type: EZ-Coil Low Pressure Spring Rewind Hose Reel | Series: EZ-SH HI-VIS Series | Model: EZ-SH-350-HV | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI at 70°F | Service: Air, Water | Temperature Range: -40°F to 158°F | Ship Weight: 50 lbs | Overall Dimensions: 8.25" W x 21.25" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels for smoother hose return.
- 3/8" x 50 ft high-visibility hose provides practical reach for compact air and water stations without oversizing the reel.
- Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across shop floors, service bays, and work areas.
- Hybrid PVC and rubber construction provides increased flexibility, enhanced kink resistance, and reduced coil memory.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow through the reel.
- Nitrile swivel seals are matched to the reel's air and water service configuration.
- Enclosed factory-tuned and matched cartridge-style spring motor helps support consistent rewind performance.
- Stainless steel spring and pawl with zinc-plated ratchet components help resist corrosion inside the rewind mechanism.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions.
- Super Hub dual axle support system helps stabilize the drum during payout and controlled rewind.
- CPC powder coat finish helps resist chips and rust in shop, garage, service, and maintenance environments.
Made in USA:
Applications:
- Automotive and fleet service bays where controlled hose return helps keep 3/8" air hose easier to manage after tire service, blow-off work, and maintenance tasks.
- Industrial maintenance and MRO areas using compact retractable air or water hose stations near machines, benches, and repair zones.
- Manufacturing and assembly work areas where high-visibility hose helps workers spot temporary hose runs on active floors.
- Facility maintenance teams handling low pressure water, shop air, and general utility service within the 300 PSI rating.
- Service trucks and mobile repair setups that need a controlled-retraction hose reel with a compact 50 ft working reach.
- DIY garages and home workshops where slower hose return can make compressor hose storage easier to manage between jobs.
FAQs:
- Q: What makes the EZ-SH-350-HV different from the standard SH-N-350-HV?
A: The EZ-SH-350-HV includes Coxreels EZ-Coil controlled retraction system, which retracts up to 80% slower than conventional spring driven reels. That slower return helps reduce hose whip and gives the user more control during rewind. - Q: Does this model include hose?
A: Yes. The EZ-SH-350-HV is supplied with a 3/8" I.D. x 50 ft high-visibility hybrid hose installed on the reel. - Q: Can this reel be used for compressed air?
A: Yes. This reel is configured for air and water service when the application stays within the 300 PSI maximum pressure rating and the 3/8" hose size matches the system requirements. - Q: Why choose the high-visibility hose option?
A: The bright yellow hose with white stripe is easier to see when extended across work areas, vehicle lanes, and walk paths. That added visibility is useful in shops where hoses may be pulled across areas shared by technicians, carts, or vehicles. - Q: Can the hose be locked before it is fully extended?
A: Yes. The multi-position lock ratchet allows the hose to be secured at the working length needed for the task, so the user does not need to pull out the full 50 ft every time.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
