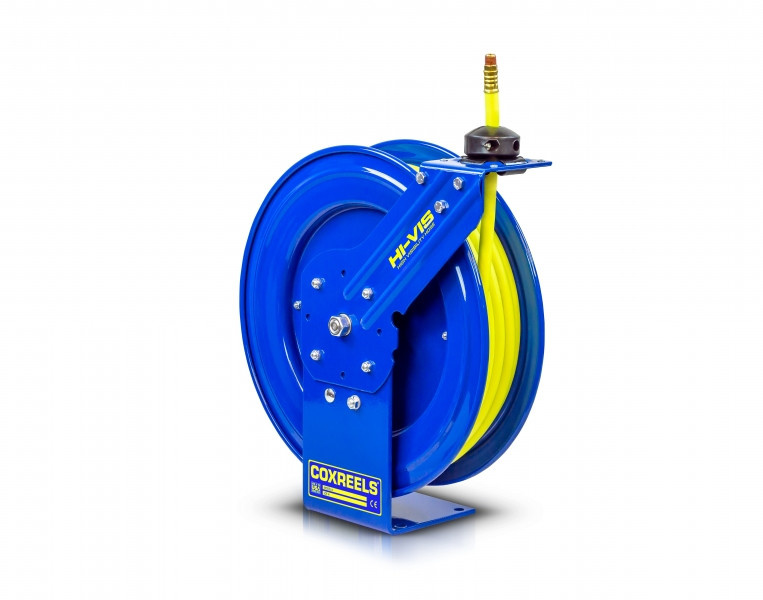

Coxreels SH-N-4100-HV Low Pressure Spring Rewind Hose Reel | SH Series | 1/2" Hose Diameter | 100' Hose Length | 300 Max PSI

Built for extended-reach air and water service where both hose length and flow capacity matter, the Coxreels SH-N-4100-HV low pressure spring rewind hose reel includes a 1/2" I.D. x 100 ft high-visibility hose rated to 300 PSI. The 1/2" hose size supports greater air or water volume than smaller 3/8" configurations, while the 100 ft length helps cover larger bays, equipment areas, and service vehicle setups from one mounted reel location.

The SH HI-VIS Series uses a bright yellow hybrid hose with a white glossy stripe, making the hose easier to identify when it is pulled across work zones, walk paths, and vehicle lanes. Spring rewind operation retracts the hose back onto the drum after use, and the multi-position lock ratchet secures the hose at the working length needed for the task. Coxreels Super Hub dual axle support system helps keep the reel stable during payout and rewind.

Type: Low Pressure Spring Rewind Hose Reel | Series: SH HI-VIS Series | Model: SH-N-4100-HV | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 74 lbs | Overall Dimensions: 8.75" W x 25.5" H x 24" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• 100 ft hose length provides extended reach for larger service bays, maintenance areas, and mobile utility setups.
• 1/2" high-visibility hose supports higher-volume air and water delivery than smaller 3/8" hose configurations.
• Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across active shop floors and walk paths.
• Hybrid PVC and rubber construction combines flexibility, reduced coil memory, and improved handling for regular air and water service.
• Spring rewind mechanism retracts hose onto the drum after use to help reduce loose hose clutter.
• Multi-position lock ratchet holds the hose at the selected working length during service, washdown, and utility tasks.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water movement through the reel.
• Adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions.
• Super Hub dual axle support system helps stabilize the reel during hose payout and rewind.
• Solid one-piece 1/4" steel base and support post provide a stable single-pedestal mounting structure.
• 1" solid steel axle with lubricated precision bearings supports smooth drum rotation.
• Rolled edges and ribbed CNC-spun discs add strength while helping protect the hose during rewind.
• CPC powder coat finish helps resist chips and rust in shop, garage, fleet, and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Fleet and heavy vehicle service bays where 100 ft of 1/2" hose helps reach multiple work positions from one reel location.
• Industrial maintenance and MRO departments using retractable air or water hose around machinery, repair zones, and facility equipment.
• Manufacturing plants and assembly areas where high-visibility hose helps workers identify temporary hose runs on busy floors.
• Facility maintenance teams handling low pressure water service, shop air, blow-off work, and utility cleaning within the 300 PSI rating.
• Service trucks and mobile repair setups that need long hose reach with organized spring rewind storage between jobs.
• DIY garages and home workshops where a longer 1/2" hose can serve vehicles, benches, and tools from a fixed compressor or utility connection.

FAQs:

• Q: Does the Coxreels SH-N-4100-HV come with hose installed?
  A: Yes. This model includes a 1/2" I.D. x 100 ft high-visibility hybrid hose installed on the reel.
• Q: When should I choose the 100 ft hose length?
  A: The 100 ft length is useful when one reel needs to cover a larger bay, multiple workstations, or a mobile service layout. It provides more reach than the 50 ft and 75 ft versions while keeping the hose stored on a spring rewind reel after use.
• Q: What advantage does the 1/2" hose size provide?
  A: A 1/2" hose can carry more air or water volume than a smaller 3/8" hose. It is commonly selected for applications where added flow is more important than the lighter handling of a smaller hose.
• Q: Can this reel be used for compressed air and water?
  A: Yes. The SH-N-4100-HV is configured for air and water service when the application stays within the reel's 300 PSI maximum pressure rating and the hose size matches the system requirements.
• Q: Can the hose be locked before it is fully extended?
  A: Yes. The multi-position lock ratchet allows the hose to be secured at partial extension, so the user can work at the required length without pulling out the full 100 ft.
