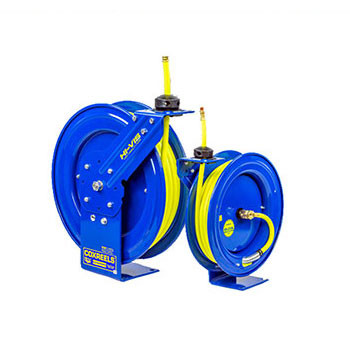

Coxreels EZ-SH-450-HV EZ Coil Spring Rewind Hose Reel | EZ-SH Series | 1/2" Hose Diameter | 50' Hose Length | 300 Max PSI

Built for higher-flow air and water service with controlled hose return, the Coxreels EZ-SH-450-HV EZ-Coil spring rewind hose reel includes a 1/2" I.D. x 50 ft high-visibility hose rated to 300 PSI. The 1/2" hose size supports greater air or water volume than smaller 3/8" configurations, while the EZ-Coil system retracts up to 80% slower than conventional spring driven reels to help reduce hose whip during rewind.

The EZ-SH HI-VIS Series uses a bright yellow hybrid hose with a white glossy stripe, so the hose is easier to see when extended across service bays, walk paths, vehicle lanes, and maintenance areas. Its compact 50 ft length is practical for workstations where the reel can be mounted close to the point of use, and the multi-position lock ratchet lets the user secure the hose at the needed working length without keeping tension on the line.

Type: EZ-Coil Low Pressure Spring Rewind Hose Reel | Series: EZ-SH HI-VIS Series | Model: EZ-SH-450-HV | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI at 70°F | Service: Air, Water | Temperature Range: -40°F to 158°F | Ship Weight: 54 lbs | Overall Dimensions: 8.25" W x 21.25" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels for smoother hose return.
• 1/2" x 50 ft high-visibility hose supports higher-volume air and water delivery in compact shop, service, and maintenance areas.
• Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across floors, bays, and work zones.
• Hybrid PVC and rubber construction provides increased flexibility, enhanced kink resistance, and reduced coil memory.
• Spring rewind mechanism retracts hose back onto the drum after use to help keep work areas cleaner and more organized.
• Multi-position lock ratchet mechanism secures the hose at the selected working length during air, water, and utility tasks.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow through the reel.
• Nitrile swivel seals are matched to the reel's air and water service configuration.
• Enclosed factory-tuned and matched cartridge-style spring motor supports controlled rewind performance.
• Stainless steel spring and pawl with zinc-plated ratchet components help resist corrosion inside the rewind mechanism.
• Adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions.
• Super Hub dual axle support system helps stabilize the drum during payout and controlled rewind.
• CPC powder coat finish helps resist chips and rust in shop, garage, fleet, and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Automotive and fleet service bays using 1/2" hose for shop air, blow-off work, tire service support, and general maintenance tasks.
• Industrial maintenance and MRO areas where controlled hose return helps manage air or water hose near machinery, benches, and repair stations.
• Manufacturing and assembly workstations where high-visibility hose helps workers spot temporary hose runs on active floors.
• Facility maintenance teams handling low pressure water service, utility cleaning, and compressed air tasks within the 300 PSI rating.
• Service trucks and mobile repair setups that need a compact 50 ft hose reel with slower, more controlled retraction.
• DIY garages and home workshops where a 1/2" hose reel can help keep compressor or utility hose visible, accessible, and neatly stored.

FAQs:

• Q: What makes the Coxreels EZ-SH-450-HV different from the standard SH-N-450-HV?
  A: The EZ-SH-450-HV includes Coxreels EZ-Coil controlled retraction system, which retracts up to 80% slower than conventional spring driven reels. That slower return helps reduce hose whip and gives the user more control during rewind.
• Q: Does this model include hose?
  A: Yes. The EZ-SH-450-HV includes a 1/2" I.D. x 50 ft high-visibility hybrid hose installed on the reel.
• Q: Why choose a 1/2" hose reel instead of a 3/8" model?
  A: A 1/2" hose can support greater air or water volume than a smaller 3/8" hose. It is commonly selected when the application needs added flow capacity while staying within the reel's 300 PSI pressure rating.
• Q: Can the EZ-SH-450-HV be used for compressed air?
  A: Yes. This reel is configured for air and water service when the system pressure does not exceed 300 PSI and the 1/2" hose size matches the tool or air station requirements.
• Q: Can this reel be mounted on a wall, ceiling, or vehicle?
  A: Yes. The adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions when installed on a proper support structure using the reel's mounting pattern.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
