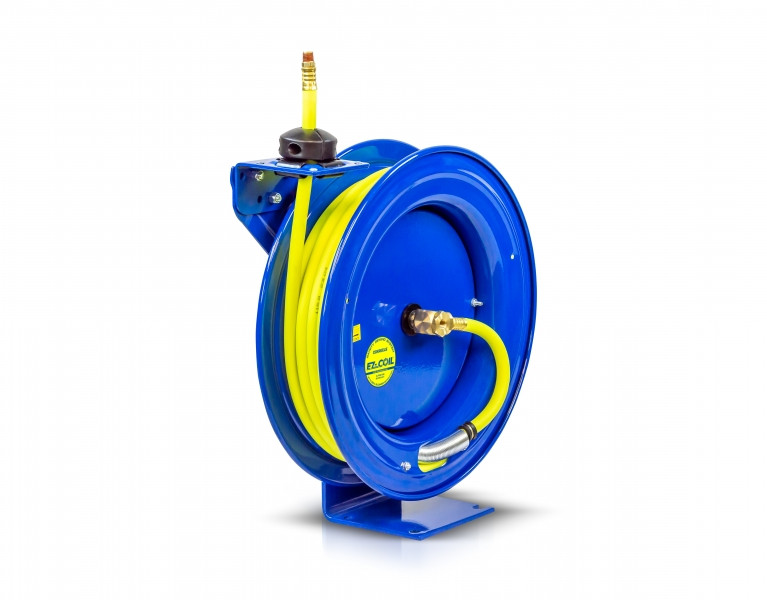

For work areas where controlled hose return and increased visibility are important, the Coxreels EZ-P-LP-450-HV Performance HV Spring Rewind Hose Reel combines the patented EZ-Coil safety system with a high-visibility hose. This EZ-P-HV Series model includes 50 ft of 1/2 in. I.D. hose and is rated for a 300 PSI maximum working pressure. EZ-Coil retracts the hose up to 80% slower than a conventional spring-driven reel, providing a more controlled return after use.
The included hose measures 13/16 in. O.D. and uses a bright yellow flexible TPE construction with a white stripe to increase hose visibility around the work area. Coxreels lists hose-equipped models for air or water service with a maximum temperature of 150°F. The reel's single-pedestal steel structure and 7 in. overall width provide automatic hose storage in a space-saving configuration.
Type: Controlled-Retraction Spring Rewind Hose Reel | Series: EZ-P-HV Series | Model: EZ-P-LP-450-HV | Retraction System: EZ-Coil | Hose Included: Yes | Hose I.D.: 1/2 in. | Hose O.D.: 3/4 in. | Hose Length: 50 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water | Overall Width: 7 in. | Overall Height: 18.63 in. | Overall Length: 17.33 in. | Base Dimensions: 6 in. X x 6 in. Y | Mounting Pattern: 4 in. M x 5 in. N
Features:
- EZ-Coil controlled-retraction system retracts the hose up to 80% slower than conventional spring-driven reels.
- Includes 50 ft of high-visibility hose measuring 1/2 in. I.D. x 13/16 in. O.D.
- Machined solid-brass 90-degree full-flow NPT swivel uses NITRILE seals.
- Enclosed cartridge-style spring motor is removable for convenient maintenance.
- Solid one-piece 1/4 in. steel base and support post provide stability in a single-pedestal configuration.
- Adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions.
Made in USA:
Applications:
- Air hose management within the reel and included hose ratings.
- Water service within the published pressure and temperature limits.
- Work areas where high hose visibility improves awareness.
- Commercial and industrial installations requiring slower, controlled hose retraction.
- Wall, floor, ceiling, vehicle, and overhead installations compatible with the adjustable guide arm.
FAQs:
- Q: Does the Coxreels EZ-P-LP-450-HV include hose?
A: Yes. Coxreels supplies this model with 50 ft of high-visibility hose measuring 1/2 in. I.D. and 13/16 in. O.D. - Q: What does EZ-Coil controlled retraction do?
A: The patented Coxreels system retracts the hose up to 80% slower than a conventional spring-driven reel. - Q: What is the maximum working pressure?
A: The manufacturer rates the EZ-P-LP-450-HV for a maximum working pressure of 300 PSI. - Q: What services are listed for this reel?
A: Coxreels lists hose-equipped models for air or water service with a maximum hose temperature of 150°F. - Q: What mounting space does the reel require?
A: The reel measures 7 in. wide, 18.63 in. high, and 17.33 in. long. Its mounting pattern measures 4 in. by 5 in.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
