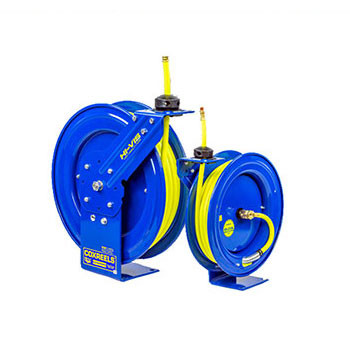

Coxreels EZ-SH-3100-HV EZ Coil Spring Rewind Hose Reel | EZ-SH Series | 3/8" Hose Diameter | 100' Hose Length | 300 Max PSI

Built for extended-reach air and water service with controlled hose return, the Coxreels EZ-SH-3100-HV EZ-Coil spring rewind hose reel includes a 3/8" I.D. x 100 ft high-visibility hose rated to 300 PSI. The EZ-Coil system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the user more control as the hose returns to the reel.

The EZ-SH HI-VIS Series uses a bright yellow hybrid hose with a white glossy stripe to make extended hose runs easier to see across work areas, walk paths, service bays, and vehicle lanes. The 100 ft hose length helps cover larger spaces from a single mounting point, while the multi-position lock ratchet lets the operator secure only the amount of hose needed for the job. Coxreels Super Hub dual axle support system helps stabilize the drum during payout and controlled rewind.

Type: EZ-Coil Low Pressure Spring Rewind Hose Reel | Series: EZ-SH HI-VIS Series | Model: EZ-SH-3100-HV | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 300 PSI at 70°F | Service: Air, Water | Temperature Range: -40°F to 158°F | Ship Weight: 71 lbs | Overall Dimensions: 8.25" W x 25.5" H x 24" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels for smoother hose return.
• 3/8" x 100 ft high-visibility hose provides extended reach from a fixed reel location for larger work areas and service bays.
• Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across shop floors, vehicle lanes, and maintenance zones.
• Hybrid PVC and rubber construction provides increased flexibility, enhanced kink resistance, and reduced coil memory.
• Spring rewind mechanism retracts hose back onto the drum after use to help reduce loose hose clutter.
• Multi-position lock ratchet mechanism secures the hose at the selected working length during air, water, and utility tasks.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow through the reel.
• Nitrile swivel seals are matched to the reel's air and water service configuration.
• Enclosed factory-tuned and matched cartridge-style spring motor supports controlled rewind performance.
• Stainless steel spring and pawl with zinc-plated ratchet components help resist corrosion inside the rewind mechanism.
• Adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions.
• Super Hub dual axle support system helps stabilize the drum during payout and controlled rewind.
• CPC powder coat finish helps resist chips and rust in shop, garage, fleet, and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Fleet and automotive service bays where 100 ft of 3/8" air hose helps reach multiple vehicle positions from one mounted reel.
• Industrial maintenance and MRO departments using retractable air or water hose around machinery, repair zones, and work cells.
• Manufacturing and assembly areas where high-visibility hose helps workers identify temporary hose runs across active floors.
• Facility maintenance teams handling shop air, low pressure water service, blow-off work, and utility cleaning within the 300 PSI rating.
• Service trucks and mobile repair setups that need long hose reach with slower, more controlled retraction between jobs.
• DIY garages and home workshops where extended hose reach helps serve vehicles, benches, and tools from one fixed compressor or utility connection.

FAQs:

• Q: What makes the Coxreels EZ-SH-3100-HV different from the standard SH-N-3100-HV?
  A: The EZ-SH-3100-HV includes Coxreels EZ-Coil controlled retraction system, which retracts up to 80% slower than conventional spring driven reels. This helps reduce hose whip and gives the user more control during rewind.
• Q: Does this reel include the hose?
  A: Yes. The EZ-SH-3100-HV includes a 3/8" I.D. x 100 ft high-visibility hybrid hose installed on the reel.
• Q: When should I choose a 100 ft hose reel?
  A: A 100 ft hose reel is useful when one mounted reel needs to serve a larger bay, longer vehicle lane, or multiple work positions. It gives more reach than the 50 ft and 75 ft models while keeping the same 3/8" hose I.D. and 300 PSI rating.
• Q: Can the EZ-SH-3100-HV be used for compressed air?
  A: Yes. This reel is configured for air and water service when the application stays within the 300 PSI maximum pressure rating and the 3/8" hose size matches the air system requirements.
• Q: Can the hose be locked at partial extension?
  A: Yes. The multi-position lock ratchet allows the hose to be secured at the working length needed for the task, so the full 100 ft does not need to be pulled out every time.
