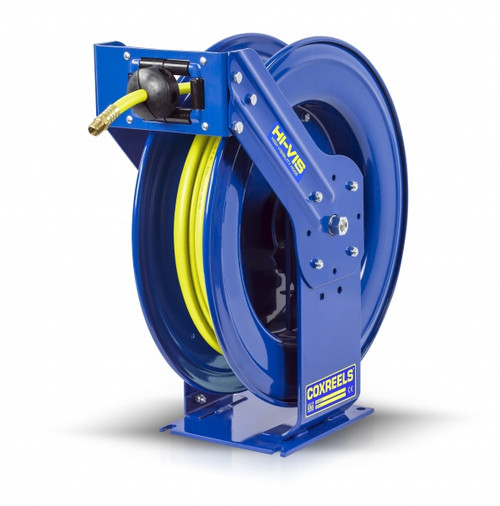

Built for rugged mobile applications and shop air or water stations that need a larger hose I.D. without extra hose length, the Coxreels TSH-N-450-HV Supreme Duty spring rewind hose reel includes a 1/2" I.D. x 50 ft high-visibility hose rated to 300 PSI. The T-HV Series uses Coxreels dual pedestal frame design and Super Hub triple axle support system, giving the reel added stability for service trucks, fleet maintenance, industrial MRO areas, and high-use workstations.
The 1/2" hose size supports greater air or water volume than smaller 3/8" configurations, while the compact 50 ft length is practical when the reel can be mounted close to the point of use. The bright yellow hybrid hose with a white glossy stripe improves hose awareness when extended across work areas, vehicle bays, and walk paths. A spring rewind mechanism retracts the hose after use, and the multi-position lock ratchet secures the hose at the selected working length.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T-HV Series | Model: TSH-N-450-HV | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 63 lbs | Overall Dimensions: 9.38" W x 21.25" H x 19.5" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- Supreme Duty T-HV Series construction is built for rugged mobile applications and frequent hose handling.
- 1/2" x 50 ft high-visibility hose supports higher-volume air and water delivery from a compact reel footprint.
- Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across floors, bays, and work zones.
- Hybrid PVC and rubber blend offers increased flexibility, better low-temperature behavior, enhanced kink resistance, and reduced coil memory.
- Dual pedestal design with solid one-piece heavy gauge 1/4" steel base and support posts provides added reel stability.
- Super Hub triple axle support system helps reinforce the reel structure during hose payout and rewind.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow and simplifies seal maintenance.
- Nitrile swivel seals are matched to the reel's low-pressure air and water service configuration.
- Enclosed factory-tuned and matched cartridge-style spring motor is lubricated and removable for service access.
- Non-corrosive stainless steel spring and pawl with zinc-plated ratchet components help support reliable rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Rolled edges and ribbed CNC-spun discs add strength while helping protect the hose during rewind.
- CPC powder coat finish helps resist chips and rust in shop, fleet, and service environments.
Made in USA:
Applications:
- Service trucks and mobile repair vehicles where a dual pedestal reel frame helps support regular road, yard, and jobsite use.
- Fleet and automotive service bays using 1/2" air hose for pneumatic tools, blow-off work, and general maintenance tasks.
- Industrial maintenance and MRO departments that need a compact retractable air or water hose station near equipment and repair benches.
- Manufacturing and assembly areas where high-visibility hose helps workers identify hose runs on active floors.
- Facility maintenance teams handling low pressure water service, shop air, and utility cleaning within the 300 PSI rating.
- DIY garages and larger home workshops where a stronger reel frame and 1/2" hose help keep compressor or utility hose organized.
FAQs:
- Q: Does the Coxreels TSH-N-450-HV include hose?
A: Yes. This model includes a 1/2" I.D. x 50 ft high-visibility hybrid hose installed on the reel. - Q: What makes the T-HV Series different from the SH Series?
A: The T-HV Series uses a dual pedestal reel structure with a larger mounting base and Coxreels Super Hub triple axle support system. It is the stronger frame choice for rugged mobile applications and frequent hose handling. - Q: Why choose a 1/2" hose instead of a 3/8" hose?
A: A 1/2" hose can carry more air or water volume than a smaller 3/8" hose. It is commonly selected when flow capacity is more important than the lighter handling of a smaller hose. - Q: Can this reel be used for compressed air?
A: Yes. The TSH-N-450-HV is configured for air and water service when the system pressure stays within the 300 PSI maximum rating and the 1/2" hose size matches the tool or workstation requirements. - Q: Can this reel be mounted on a vehicle?
A: Yes. The guide arm adjusts to wall, floor, vehicle, ceiling, and overhead mounting positions when the reel is installed on a properly supported structure using the specified mounting pattern.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T-HV Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 3/4
- Hose Length (ft.)
- 50
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 300
