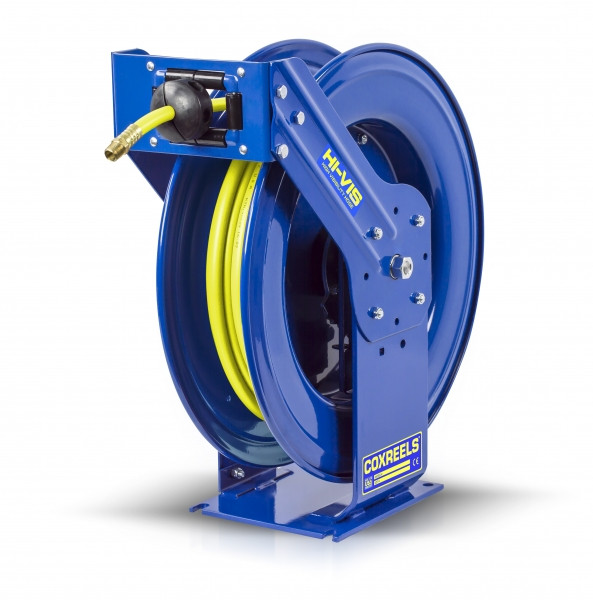

Built for higher-flow hose service in rugged mobile and shop environments, the Coxreels TSH-N-475-HV Supreme Duty spring rewind hose reel includes a 1/2" I.D. x 75 ft high-visibility hose rated to 300 PSI. The 1/2" hose size supports greater air or water volume than smaller 3/8" configurations, while the 75 ft reach helps cover larger service bays, vehicle lanes, and maintenance areas from one mounted reel location.
The T-HV Series uses Coxreels dual pedestal frame design and Super Hub triple axle support system, giving the reel added stability for service trucks, fleet maintenance, industrial MRO areas, and frequent-use workstations. The bright yellow hybrid hose with a white glossy stripe improves hose awareness when extended across walk paths, floors, and equipment zones. A spring rewind mechanism retracts the hose after use, and the multi-position lock ratchet holds the hose at the selected working length.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T-HV Series | Model: TSH-N-475-HV | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 84 lbs | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- Supreme Duty T-HV Series construction is built for rugged mobile applications and frequent hose handling.
- 1/2" x 75 ft high-visibility hose provides added reach and higher-volume air or water delivery from one fixed reel location.
- Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across floors, bays, and work zones.
- Hybrid PVC and rubber blend offers increased flexibility, better low-temperature behavior, enhanced kink resistance, and reduced coil memory.
- Dual pedestal design with solid one-piece heavy gauge 1/4" steel base and support posts provides added reel stability.
- Super Hub triple axle support system helps reinforce the reel structure during hose payout and rewind.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow and simplifies seal maintenance.
- Nitrile swivel seals are matched to the reel's low-pressure air and water service configuration.
- Enclosed factory-tuned and matched cartridge-style spring motor is lubricated and removable for service access.
- Non-corrosive stainless steel spring and pawl with zinc-plated ratchet components help support reliable rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Rolled edges and ribbed CNC-spun discs add strength while helping protect the hose during rewind.
- CPC powder coat finish helps resist chips and rust in shop, fleet, and service environments.
Made in USA:
Applications:
- Service trucks and mobile repair vehicles where a dual pedestal reel frame helps support regular road, yard, and jobsite use.
- Fleet and automotive service bays using 75 ft of 1/2" air hose for pneumatic tools, blow-off work, and general maintenance tasks.
- Industrial maintenance and MRO departments that need longer retractable air or water hose access near equipment and repair zones.
- Manufacturing and assembly areas where high-visibility hose helps workers identify extended hose runs on active floors.
- Facility maintenance teams handling low pressure water service, shop air, and utility cleaning within the 300 PSI rating.
- DIY garages and larger home workshops where a stronger reel frame and 75 ft hose reach help keep compressor or utility hose organized.
FAQs:
- Q: Does the Coxreels TSH-N-475-HV include hose?
A: Yes. This model includes a 1/2" I.D. x 75 ft high-visibility hybrid hose installed on the reel. - Q: What makes the T-HV Series different from the SH Series?
A: The T-HV Series uses a dual pedestal reel structure with a larger mounting base and Coxreels Super Hub triple axle support system. It is the stronger frame choice for rugged mobile applications and frequent hose handling. - Q: Why choose the 75 ft version instead of the 50 ft version?
A: The 75 ft hose length provides additional reach from the same fixed reel location. It is useful for larger bays, longer vehicle lanes, service trucks, or work areas where the reel cannot be mounted close to every task. - Q: What is the benefit of the 1/2" hose size?
A: A 1/2" hose can carry more air or water volume than a smaller 3/8" hose. It is commonly selected when the application needs added flow capacity while staying within the reel's 300 PSI pressure rating. - Q: Can this reel be used for compressed air and water?
A: Yes. The TSH-N-475-HV is configured for air and water service when the system pressure stays within the 300 PSI maximum rating and the 1/2" hose size matches the application requirements.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
