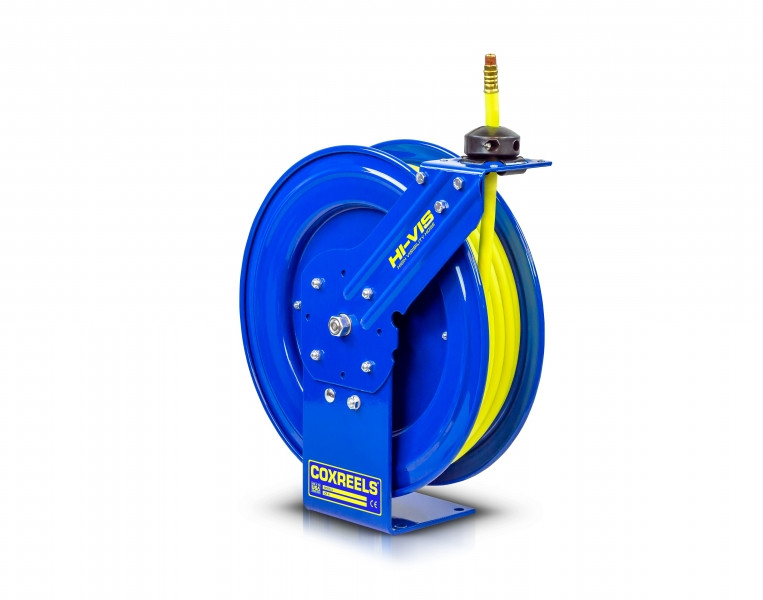

Built for higher-flow air and water service where a larger hose I.D. is preferred, the Coxreels SH-N-450-HV low pressure spring rewind hose reel includes a 1/2" I.D. x 50 ft high-visibility hose rated to 300 PSI. The SH HI-VIS Series uses a bright yellow hybrid hose with a white glossy stripe, making the hose easier to see when extended across shop floors, vehicle bays, work cells, and maintenance areas.
Compared with smaller 3/8" hose configurations, the 1/2" hose size helps support applications that need greater air or water volume from a fixed reel location. The spring rewind mechanism retracts hose after use, while the multi-position lock ratchet lets the user secure the hose at the working length needed for the job. Coxreels Super Hub dual axle support system helps stabilize the reel during payout and rewind for consistent daily use.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH HI-VIS Series | Model: SH-N-450-HV | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 54 lbs | Overall Dimensions: 8.25" W x 21.25" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- 1/2" high-visibility hose supports higher-volume air and water delivery than smaller hose I.D. configurations.
- Bright yellow hose with white glossy stripe improves hose awareness when the line is extended across active work areas.
- Hybrid PVC and rubber construction combines flexibility, reduced coil memory, and improved handling for daily shop use.
- Spring rewind mechanism retracts hose onto the reel after use to help keep floors and workstations organized.
- Multi-position lock ratchet allows the hose to stay at the selected working length during service tasks.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water movement through the reel.
- Adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions.
- Super Hub dual axle support system helps stabilize the drum during hose payout and rewind.
- Solid one-piece 1/4" steel base and support post provide a stable single-pedestal mounting structure.
- 1" solid steel axle with lubricated precision bearings supports smooth reel rotation.
- Rolled edges and ribbed CNC-spun discs add strength while helping protect the hose during rewind.
- CPC powder coat finish helps resist chips and rust in shop, garage, and service environments.
Made in USA:
Applications:
- Automotive and fleet service bays using 1/2" hose for air tools, blow-off work, and general maintenance tasks.
- Industrial maintenance and MRO areas where a retractable air or water hose station helps keep work zones organized.
- Manufacturing and assembly facilities where high-visibility hose helps workers identify temporary hose runs on active floors.
- Facility maintenance teams handling low pressure water service, utility cleaning, and shop air tasks within the 300 PSI rating.
- Service trucks and mobile repair setups that need spring rewind hose storage with a larger 1/2" hose I.D.
- DIY garages and home workshops where a mounted hose reel helps keep compressor or utility hose off the floor between jobs.
FAQs:
- Q: Does the Coxreels SH-N-450-HV include hose?
A: Yes. This model includes a 1/2" I.D. x 50 ft high-visibility hybrid hose installed on the reel. - Q: Why choose a 1/2" hose reel instead of a 3/8" hose reel?
A: A 1/2" hose can support greater air or water volume than a smaller 3/8" hose. It is often selected when the application needs more flow from the same reel location. - Q: Can this reel be used for compressed air?
A: Yes. The SH-N-450-HV is suitable for air service when the system pressure stays within the 300 PSI maximum rating and the 1/2" hose size matches the air system and tool requirements. - Q: What does the HI-VIS hose help with?
A: The bright yellow hose with white stripe is easier to see when extended across walkways, service bays, and shop floors. This added visibility can help workers notice the hose before stepping over or moving equipment around it. - Q: Can the reel be mounted overhead or on a wall?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions when installed according to the reel's mounting pattern and support requirements.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
