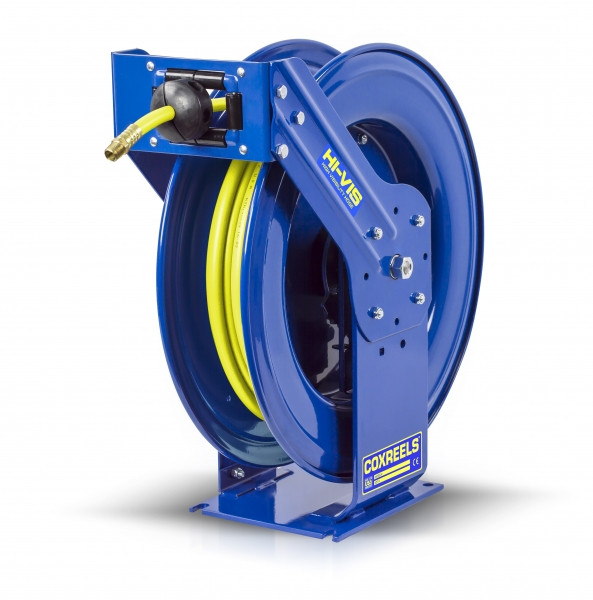

Built for rugged mobile applications and higher-demand air or water hose storage, the Coxreels TSH-N-375-HV Supreme Duty spring rewind hose reel includes a 3/8" I.D. x 75 ft high-visibility hose rated to 300 PSI. The T-HV Series uses Coxreels dual pedestal frame design and Super Hub triple axle support system, giving the reel added stability for service trucks, fleet bays, industrial maintenance areas, and workstations where the reel may see frequent hose payout and rewind cycles.
The bright yellow hybrid hose with a white glossy stripe improves hose awareness when the line is extended across shop floors, walk paths, vehicle lanes, and maintenance zones. The spring rewind mechanism retracts the hose after use, while the multi-position lock ratchet secures the hose at the selected working length. For buyers comparing the SH and T-HV configurations, this model offers the same 3/8" hose I.D. and 75 ft working reach in a heavier dual pedestal reel structure.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T-HV Series | Model: TSH-N-375-HV | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 82 lbs | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 8" M x 9" N | Base: 7" X x 8" Y
Features:
- Supreme Duty T-HV Series construction is built for rugged mobile applications and frequent hose handling.
- 3/8" x 75 ft high-visibility hose provides extended reach for air and water service from one fixed reel location.
- Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across floors, bays, and work zones.
- Hybrid PVC and rubber blend offers increased flexibility, better low-temperature behavior, enhanced kink resistance, and reduced coil memory.
- Dual pedestal design with solid one-piece heavy gauge 1/4" steel base and support posts provides added reel stability.
- Super Hub triple axle support system helps reinforce the reel structure during payout and rewind.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow and simplifies seal maintenance.
- Nitrile swivel seals are matched to the reel's low-pressure air and water service configuration.
- Enclosed factory-tuned and matched cartridge-style spring motor is lubricated and removable for service access.
- Non-corrosive stainless steel spring and pawl with zinc-plated ratchet components help support reliable rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Rolled edges and ribbed CNC-spun discs add strength while helping protect the hose during rewind.
- CPC powder coat finish helps resist chips and rust in shop, fleet, and service environments.
Made in USA:
Applications:
- Service trucks and mobile repair vehicles where the dual pedestal reel structure helps support regular road and jobsite use.
- Fleet and automotive service bays using 3/8" air hose for blow-off work, pneumatic tool stations, and general maintenance tasks.
- Industrial maintenance and MRO departments that need 75 ft of retractable air or water hose near repair zones, equipment, and work cells.
- Manufacturing and assembly areas where high-visibility hose helps workers identify temporary hose runs on active floors.
- Facility maintenance teams handling low pressure water service, shop air, and utility cleaning within the 300 PSI rating.
- DIY garages and larger home workshops where a stronger reel frame and 75 ft hose reach help keep compressor or utility hose organized.
FAQs:
- Q: Does the Coxreels TSH-N-375-HV include hose?
A: Yes. This model includes a 3/8" I.D. x 75 ft high-visibility hybrid hose installed on the reel. - Q: What makes the T-HV Series different from the SH Series?
A: The T-HV Series uses a dual pedestal reel structure with a larger mounting pattern and Coxreels Super Hub triple axle support system. It is the stronger frame choice for rugged mobile applications and frequent hose handling. - Q: Can this reel be used for compressed air?
A: Yes. The TSH-N-375-HV is configured for air and water service when the system pressure stays within the 300 PSI maximum rating and the 3/8" hose size matches the tool or workstation requirements. - Q: Why choose a 75 ft hose reel instead of a 50 ft model?
A: The 75 ft hose length gives more reach from the same mounted reel location, making it useful for larger bays, longer vehicle lanes, and work areas where the reel cannot be placed close to every task. - Q: Can this reel be mounted on a vehicle?
A: Yes. The guide arm adjusts to wall, floor, vehicle, ceiling, and overhead mounting positions when the reel is installed on a properly supported structure using the specified mounting pattern.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
