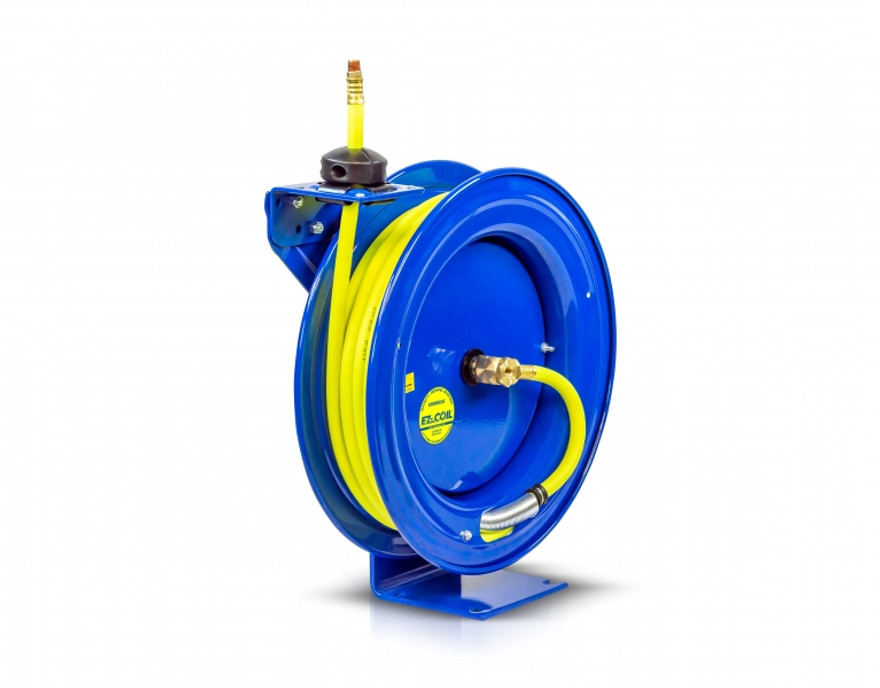

Coxreels EZ-P-LP-325-HV Performance HV Spring Rewind Hose Reel | EZ-P-HV Series | 3/8" Hose Diameter | 25' Hose Length | 300 Max PSI

When controlled hose return and improved visibility are priorities, the Coxreels EZ-P-LP-325-HV Performance HV Spring Rewind Hose Reel combines the patented EZ-Coil safety system with a bright high-visibility hose. This EZ-P-HV Series model includes 25 ft of 3/8 in. I.D. hose and is rated for a 300 PSI maximum working pressure. EZ-Coil slows retraction by up to 80% compared with conventional spring-driven reels, providing a more controlled hose return after use.

The included 3/8 in. I.D. x 5/8 in. O.D. hybrid hose combines PVC and rubber, with a bright yellow cover and glossy white stripe for increased visibility. Coxreels lists the hose for air or water service with a maximum temperature of 150°F. Enhanced flexibility, kink resistance, reduced coil memory, and a less-sticky non-marring jacket help the hose lay flatter and handle more easily around active work areas. The reel's compact 6-1/2 in. overall width helps conserve mounting space.

Type: Controlled-Retraction Spring Rewind Hose Reel | Series: EZ-P-HV Series | Model: EZ-P-LP-325-HV | Retraction System: EZ-Coil | Hose Included: Yes | Hose I.D.: 3/8 in. | Hose O.D.: 5/8 in. | Hose Length: 25 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water | Overall Width: 6-1/2 in. | Overall Height: 14-7/8 in. | Overall Length: 13-1/2 in. | Base Dimensions: 5 in. X x 6 in. Y | Mounting Pattern: 3 in. M x 5 in. N

Features:

• EZ-Coil controlled retraction system slows hose rewind by up to 80% for safer, more controlled operation.
• Supplied with 25 ft of high-visibility hybrid hose for improved workplace visibility.
• Externally mounted full-flow brass swivel with NITRILE seals supports efficient fluid flow and easy serviceability.
• Heavy-duty steel frame with CNC-spun ribbed discs provides strength and helps protect the hose.
• Multi-position guide arm allows wall, floor, ceiling, vehicle, or overhead mounting.
• Chip-resistant CPC powder coat finish helps resist corrosion and extends reel life.

Made in USA:

2 Year Warranty

Applications:

• Air hose management within the reel and included hose ratings.
• Water hose management within the published pressure and temperature limits.
• Work areas where high hose visibility helps improve awareness.
• Commercial and industrial installations requiring slower, controlled spring retraction.
• Wall, floor, ceiling, vehicle, and overhead installations compatible with the adjustable guide arm.

FAQs:

• Q: Does the Coxreels EZ-P-LP-325-HV include hose?
  A: Yes. Coxreels supplies this model with 25 ft of high-visibility hose measuring 3/8 in. I.D. and 5/8 in. O.D.
• Q: What does EZ-Coil controlled retraction do?
  A: Coxreels states that the patented EZ-Coil system retracts the hose up to 80% slower than a conventional spring-driven reel.
• Q: What services are listed for this reel?
  A: The manufacturer lists models supplied with hose for air or water service, with a maximum hose temperature of 150°F.
• Q: What is the maximum working pressure?
  A: The EZ-P-LP-325-HV is rated for a maximum working pressure of 300 PSI.
• Q: What mounting space does the reel require?
  A: The reel measures 6-1/2 in. wide, 14-7/8 in. high, and 13-1/2 in. long. Its mounting pattern measures 3 in. by 5 in.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
