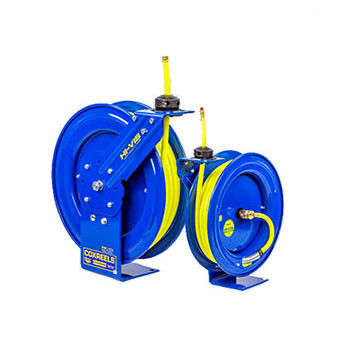

Built for longer higher-flow hose service with controlled rewind, the Coxreels EZ-TSH-475-HV EZ-Coil spring rewind hose reel includes a 1/2" I.D. x 75 ft high-visibility hose rated to 300 PSI. The EZ-T Series combines Coxreels Supreme Duty dual pedestal reel structure with EZ-Coil controlled retraction, which retracts up to 80% slower than conventional spring driven reels to help reduce hose whip as the hose returns to the drum.
The 1/2" hose size supports greater air or water volume than smaller 3/8" configurations, while the 75 ft length gives added reach from one mounted reel location. The bright yellow hybrid hose with a white glossy stripe improves hose awareness across service bays, walk paths, vehicle lanes, and maintenance zones. Coxreels Super Hub triple axle support system reinforces the reel during payout and controlled rewind, and the multi-position lock ratchet secures the hose at the selected working length.
Type: EZ-Coil Supreme Duty Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TSH-475-HV | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 300 PSI at 70°F | Service: Air, Water | Temperature Range: -40°F to 158°F | Ship Weight: 84 lbs | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels for smoother hose return.
- Supreme Duty EZ-T Series construction is built for rugged mobile applications and frequent hose handling.
- 1/2" x 75 ft high-visibility hose provides added reach and higher-volume air or water delivery from one fixed reel location.
- Bright yellow hybrid hose with white glossy stripe improves hose awareness when extended across floors, bays, and work zones.
- Hybrid PVC and rubber blend offers increased flexibility, better low-temperature behavior, enhanced kink resistance, and reduced coil memory.
- Dual pedestal design with solid one-piece heavy gauge 1/4" steel base and support posts provides added reel stability.
- Super Hub triple axle support system helps reinforce the reel structure during hose payout and controlled rewind.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow and simplifies seal maintenance.
- Nitrile swivel seals are matched to the reel's low-pressure air and water service configuration.
- Enclosed factory-tuned and matched cartridge-style spring motor is lubricated and removable for service access.
- Non-corrosive stainless steel spring and pawl with zinc-plated ratchet components help support reliable rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- CPC powder coat finish helps resist chips and rust in shop, fleet, and service environments.
Made in USA:
Applications:
- Service trucks and mobile repair vehicles where a stronger dual pedestal reel and controlled rewind help manage longer 1/2" hose between jobs.
- Fleet and automotive service bays using 75 ft of 1/2" air hose for pneumatic tools, blow-off work, tire service support, and general maintenance tasks.
- Industrial maintenance and MRO departments that need longer retractable air or water hose access near machinery, repair benches, and utility stations.
- Manufacturing and assembly areas where high-visibility hose helps workers identify extended hose runs across active floors.
- Facility maintenance teams handling low pressure water service, shop air, utility cleaning, and washdown tasks within the 300 PSI rating.
- DIY garages and larger home workshops where controlled hose return, 75 ft reach, and 1/2" hose flow help keep compressor or utility hose organized.
FAQs:
- Q: What makes the Coxreels EZ-TSH-475-HV different from the standard TSH-N-475-HV?
A: The EZ-TSH-475-HV includes Coxreels EZ-Coil controlled retraction system, which retracts up to 80% slower than conventional spring driven reels. That slower rewind helps reduce hose whip and gives the user more control during hose return. - Q: Does this model include hose?
A: Yes. The EZ-TSH-475-HV includes a 1/2" I.D. x 75 ft high-visibility hybrid hose installed on the reel. - Q: Why choose the 75 ft version instead of the 50 ft version?
A: The 75 ft version provides additional reach from the same mounted reel location, making it useful for larger bays, longer vehicle lanes, service trucks, or work areas where the reel cannot be placed close to every task. - Q: What is the benefit of the 1/2" hose size?
A: A 1/2" hose can carry more air or water volume than a smaller 3/8" hose. It is commonly selected when the application needs added flow capacity while staying within the reel's 300 PSI pressure rating. - Q: Can this reel be used for compressed air and water?
A: Yes. The EZ-TSH-475-HV is configured for air and water service when the system pressure stays within the 300 PSI maximum rating and the 1/2" hose size matches the application requirements.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
