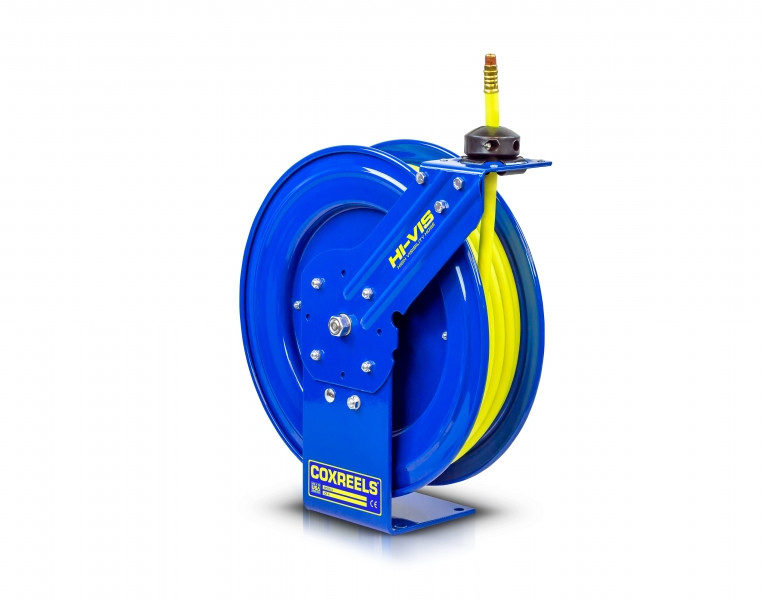

Built for longer hose reach in air and water service areas, the Coxreels SH-N-375-HV low pressure spring rewind hose reel pairs a 3/8" I.D. x 75 ft high-visibility hose with a 300 PSI pressure rating for shop air, washdown, maintenance, and utility use. The SH HI-VIS Series uses a bright yellow hybrid hose with a white glossy stripe to improve hose awareness on active floors, helping workers spot the line when it is pulled across bays, walkways, or equipment zones.
The Super Hub dual axle support system helps stabilize the reel during payout and rewind, while the spring rewind mechanism retracts hose after use to keep work areas cleaner and easier to navigate. Its adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions, giving installers flexibility when placing the reel near compressors, workstations, service vehicles, or production equipment.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH HI-VIS Series | Model: SH-N-375-HV | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 68 lbs | Overall Dimensions: 8.25" W x 25.5" H x 24" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- High-visibility safety hose helps increase awareness when hose is extended across shop floors, service bays, and work zones.
- Hybrid bright yellow hose with white glossy stripe combines PVC and rubber characteristics for flexibility, strength, and improved handling.
- Enhanced kink resistance and reduced coil memory help the hose lay flatter during use, reducing trip-hazard potential.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient air or water flow.
- Nitrile swivel seals are matched to the reel's low-pressure air and water service configuration.
- Guide arm adjusts for wall, floor, vehicle, ceiling, and overhead mounting positions to suit different installation layouts.
- Solid one-piece 1/4" steel base and support post provide a stable single-pedestal structure with no weld at the base/post connection.
- 1" solid steel axle and lubricated precision bearings support smooth drum rotation during payout and rewind.
- Enclosed factory-tuned cartridge-style spring motor is lubricated and removable for maintenance access.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- CNC-spun ribbed discs with rolled edges add reel strength while helping protect the hose during rewind.
- CPC powder coat finish helps resist chips and rust in regular shop and service environments.
Made in USA:
Applications:
- Automotive and fleet service bays using 3/8" air hose for tire service, blow-off work, and pneumatic tool stations.
- Industrial maintenance and MRO areas where a 75 ft hose reach helps serve machinery, benches, and work cells from a fixed reel location.
- Manufacturing plants and facilities that need a retractable air or water hose station with improved hose visibility on active floors.
- Service, mechanic, and utility vehicles where spring rewind hose storage helps keep equipment organized between jobs.
- Washdown and general water service tasks within the reel's 300 PSI pressure rating and air/water service limits.
- DIY garages and home workshops that need longer reach from a compressor or utility water connection without leaving loose hose on the floor.
FAQs:
- Q: Does the Coxreels SH-N-375-HV come with hose installed?
A: Yes. This model includes a 3/8" I.D. x 75 ft high-visibility hybrid hose installed on the reel. - Q: What is the benefit of the HI-VIS hose?
A: The HI-VIS hose uses a bright yellow cover with a white glossy stripe so the hose is easier to see when extended. That added visibility is useful in shops, fleet bays, and work areas where hoses may cross walk paths. - Q: Can this reel be used for both air and water?
A: Yes. The SH-N-375-HV is configured for air and water service when the application stays within the 300 PSI maximum pressure rating and the hose size matches the system requirements. - Q: Is this the same size reel frame as the 50 ft model?
A: No. The 75 ft model uses a larger overall frame than the 50 ft version, measuring 8.25" W x 25.5" H x 24" L to accommodate the added hose length. - Q: Can the hose be locked at partial extension?
A: Yes. The multi-position lock ratchet allows the user to pull the hose out and secure it at the working length needed for the task.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
