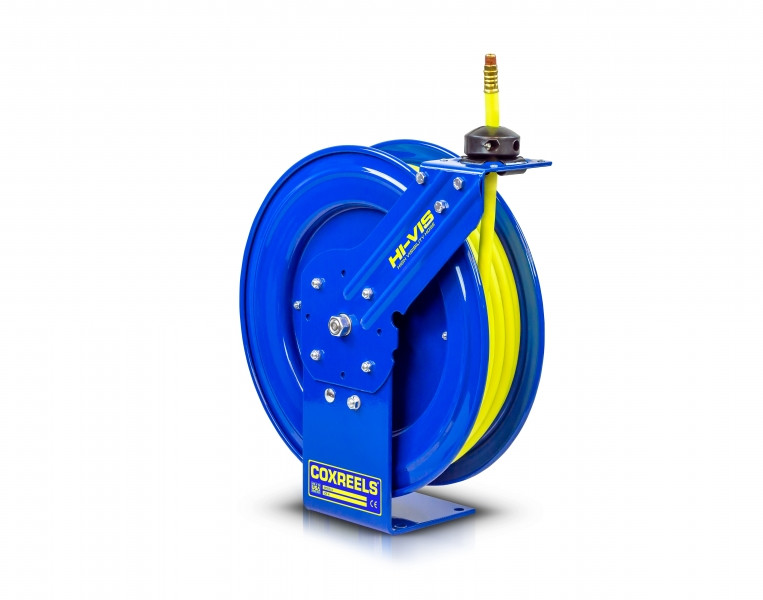

Built for air and water hose management in shops, service trucks, maintenance bays, and production areas, the Coxreels SH-N-350-HV low pressure spring rewind hose reel combines a compact 3/8" I.D. x 50 ft high-visibility hose with a 300 PSI pressure rating for everyday pneumatic and water service. The SH HI-VIS Series uses a bright yellow hybrid hose with a white glossy stripe to improve floor-level visibility, helping reduce trip-hazard potential in busy work areas where hose lines are frequently pulled across walkways.
The spring rewind design automatically retracts hose after use, while the multi-position lock ratchet lets the operator secure the hose at the needed working length. A solid brass 90° full-flow NPT swivel supports efficient fluid movement through the reel, and the Super Hub dual axle support system helps stabilize the drum during payout and rewind.
Type: Low Pressure Spring Rewind Hose Reel | Series: SH HI-VIS Series | Model: SH-N-350-HV | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Air, Water | Ship Weight: 50 lbs | Overall Dimensions: 8.25" W x 21.25" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- High-visibility hybrid hose improves awareness on shop floors, vehicle bays, and work areas where hose lines may cross foot traffic.
- Hybrid PVC and rubber blend offers rubber-like flexibility with PVC-style weight advantages for easier handling during daily use.
- Bright yellow hose with white glossy stripe helps support safer hose identification in air and water service areas.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports efficient flow and simplifies seal maintenance.
- Guide arm adjusts for wall, floor, vehicle, ceiling, and overhead mounting positions to match the installation layout.
- Solid one-piece 1/4" steel base and support post provide a stable single-pedestal mounting structure.
- 1" solid steel axle with lubricated precision bearings supports smooth drum rotation during hose payout and rewind.
- Enclosed factory-tuned cartridge-style spring motor with stainless steel spring, pawl, and zinc-plated ratchet supports controlled spring rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Rolled edges and ribbed CNC-spun discs add strength while helping protect the hose during rewind.
- CPC powder coat finish helps resist chips and rust in shop and service environments.
Made in USA:
Applications:
- Automotive and fleet maintenance shops using 3/8" air hose for tire service, blow-off tasks, and pneumatic tool stations.
- Industrial MRO departments that need a retractable hose station for low pressure air or water service near machinery and work cells.
- Utility and service vehicles where a compact spring rewind reel helps keep hose stored securely between jobs.
- Manufacturing and assembly areas where high-visibility hose routing helps workers spot hose lines on active shop floors.
- DIY garages and home workshops that need a fixed hose reel for compressor lines, washdown tasks, or general utility service within the reel's pressure rating.
FAQs:
- Q: Does the Coxreels SH-N-350-HV include hose?
A: Yes. This model is supplied with a 3/8" I.D. x 50 ft high-visibility hose installed on the reel. - Q: What does 'HI-VIS' mean on this Coxreels hose reel?
A: HI-VIS refers to the bright yellow high-visibility hose with a white glossy stripe. It is intended to make the hose easier to see in work areas and help reduce trip-hazard potential. - Q: Can this reel be used for shop air?
A: Yes, this reel is listed for air service when the system pressure does not exceed the 300 PSI maximum rating and the 3/8" hose size matches the air supply requirements. - Q: Can the SH-N-350-HV be mounted on a wall or ceiling?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, ceiling, and overhead mounting positions, allowing the reel to be positioned around the way the hose is pulled. - Q: What is the advantage of a spring rewind hose reel?
A: A spring rewind reel retracts hose back onto the drum after use, helping keep floors clear and reducing manual hose handling. The lock ratchet also lets the user pull out and hold the hose at the required working length.
| HOSE | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | W | H | L | X | Y | M | N |
|
LG SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| LG-LP-320-HV | 3/8" | 5/8" | 20 | 300 | 11 | - | 5-1/4" | 10-5/8" | 10-1/2" | 4-11/16" | 8-3/8" | 2-1/2" | 6" |
|
P SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| P-LP-325-HV | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325-HV | 6-1/2" | 14-7/8" | 13-1/2" | 5" | 6" | 3" | 5" |
| P-LP-350-HV | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350-HV | 6-3/4" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-425-HV | 1/2" | 3/4" | 25 | 300 | 44 | - | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
| P-LP-450-HV | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450-HV | 7" | 18-5/8" | 17-1/8" | 6" | 6" | 4" | 5" |
|
SH SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| SH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100-HV | 8-1/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450-HV | 8-1/4" | 21-1/4" | 19-1/2" | 6" | 6" | 4" | 5" |
| SH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
| SH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100-HV | 8-3/4" | 25-1/2" | 24" | 6" | 6" | 4" | 5" |
|
T SERIESModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||||||
| TSH-N-350-HV | 3/8" | 5/8" | 50 | 300 | 61 | EZ-TSH-350-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-375-HV | 3/8" | 5/8" | 75 | 300 | 82 | EZ-TSH-375-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-3100-HV | 3/8" | 5/8" | 100 | 300 | 85 | EZ-TSH-3100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-450-HV | 1/2" | 3/4" | 50 | 300 | 63 | EZ-TSH-450-HV | 9-3/8" | 21-1/4" | 19-1/2" | 8" | 9" | 7" | 8" |
| TSH-N-475-HV | 1/2" | 3/4" | 75 | 300 | 82 | EZ-TSH-475-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
| TSH-N-4100-HV | 1/2" | 3/4" | 100 | 300 | 95 | EZ-TSH-4100-HV | 9-3/8" | 25-1/2" | 24" | 8" | 9" | 7" | 8" |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
