Coxreels HP1125-5-250-C Bevel Geared Crank Hose Reel | HP1125 Series | 3/4" Hose Diameter | 250' Hose Length | 4500 Max PSI | Less Hose

Coxreels HP1125-5-250-C puts 4500 PSI-rated hose management on the HP1125 high-pressure platform with a front bevel geared crank and removable handle requiring no power source at all. The bevel gear crank (a gear-assisted hand crank mounted at the front face of the reel that multiplies winding effort so 250 feet of heavy, high-pressure 3/4-inch hose cranks back without the strain of a direct-drive handle) gives the operator complete control over retraction speed, making it the right choice for remote field service, mobile units, and any installation where compressed air lines or electrical outlets aren't available but the hose must be rated for hydraulic pressure. The handle removes flat for compact storage on truck beds, trailers, and tight equipment bays. Like all HP1125 Series reels, the electroless nickel plated steel swivel with AFLAS seals (a fluoroelastomer compound that resists hydraulic oil, fuel, and aggressive chemical exposure beyond the limits of standard nitrile) steps up from the brass/nitrile swivel on the 3,000 PSI standard 1125 line. Built on the one-piece CNC robotically welded 12-gauge steel "A" frame used across the 1125 family.

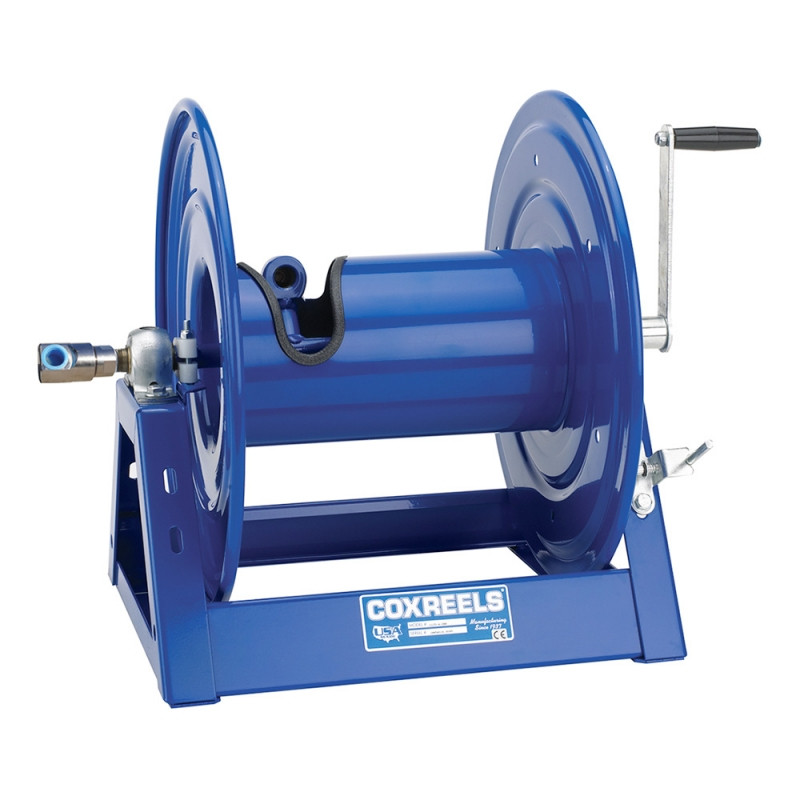

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Bevel Geared Hand Crank Hose Reel | Series: HP1125 (High Pressure) | Crank Type: Front Bevel Gear with Removable Handle | Hose I.D. (in.): 3/4 | Hose O.D. (in.): 1-1/4 | Hose Capacity (ft.): 250 | Hose Included: No | Max PSI: 4500 | Max Temperature (°F): 250 | Inlet Swivel: 3/4 in. F NPT | Swivel Material: Electroless Nickel Plated Steel | Swivel Seals: AFLAS | Width (in.): 42.75 | Height (in.): 18.75 | Length (in.): 17.63

Features:

• 4500 PSI working pressure rating HP-series drum and swivel rated for hydraulic fluid service and high-pressure lines beyond the 3,000 PSI standard 1125 limit
• Front bevel geared crank with removable handle gear-assisted winding reduces effort on long, heavy high-pressure hose runs; handle removes for flat, compact storage on vehicles and trailers
• No power source required no shop air, no electrical connection; operates wherever the reel is mounted
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Long-handled locking pin secures reel from rotation during transport or storage
• Electroless nickel plated steel 90° full-flow NPT swivel with AFLAS seals chemical and temperature-resistant fluoroelastomer seals suited to hydraulic oil, fuel, and aggressive fluid exposure
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect high-pressure hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• CPC powder coat finish chip resistant and rust inhibiting for shop, field, and mobile environments

Made in USA:

2 Year Warranty

Applications:

• Remote & field hydraulic service managing hydraulic oil return lines, test hoses, and service drops at 4500 PSI on job sites where no air supply or electrical outlet is available
• High-pressure mobile service trucks truck-mounted or trailer-mounted hose management for hydraulic fluid and high-pressure service where operator-controlled retraction is preferred over motor-driven rewinding
• High-pressure washdown & cleaning manual retraction on supply lines rated beyond 3,000 PSI where full operator control over retraction speed is needed
• Construction & heavy equipment yards portable high-pressure hose management at sites where infrastructure is limited and ease of transport matters
• Plant & industrial maintenance fixed or portable 4500 PSI service drops where operator-controlled retraction is preferred over automatic motor rewinding

FAQs:

• Q: What is the difference between the HP1125-5-250-C and the plain HP1125-5-250?
  A: The base HP1125-5-250 uses a solid steel direct hand crank. The -C adds a front bevel gear crank with a removable handle the gear mechanism multiplies winding effort so 250 feet of heavy, high-pressure hose retracts more easily, and the handle removes flat for compact storage on vehicles and trailers.
• Q: What is the difference between the HP1125-5-250-C and the standard 1125-5-250-C?
  A: Same bevel geared crank with removable handle, but the HP1125 is rated to 4500 PSI vs 3,000 PSI on the standard 1125, and uses an electroless nickel plated steel swivel with AFLAS seals instead of the brass/nitrile swivel. Choose the HP version for hydraulic fluid and high-pressure service; the standard 1125-5-250-C handles air, water, and oil to 3,000 PSI.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 250 feet of 3/4-inch I.D. (1-1/4-inch O.D. max) hose rated to 4500 PSI, or up to 500 feet of 1/2-inch I.D. hose with a reducer.
