Built for industrial fluid transfer applications where long hose runs and dependable powered retrieval are essential, the Coxreels 1125-5-250-EA electric motor rewind hose reel provides efficient hose management for manufacturing facilities, maintenance departments, service bays, and heavy equipment operations. Equipped with a 115V AC 1/2 HP electric motor, this reel delivers powered hose rewind to reduce manual handling, while its 250 ft hose capacity, 3/4" hose I.D., and 3000 PSI maximum operating pressure make it well suited for demanding high-pressure applications requiring extended hose reach.
As part of the 1125 Series, this reel is supplied in a Less Hose configuration, allowing users to select a hose that best matches their fluid, pressure, and application requirements. The electric rewind system helps improve productivity by speeding hose retrieval while keeping workspaces cleaner, reducing hose kinking, and promoting organized storage between jobs.

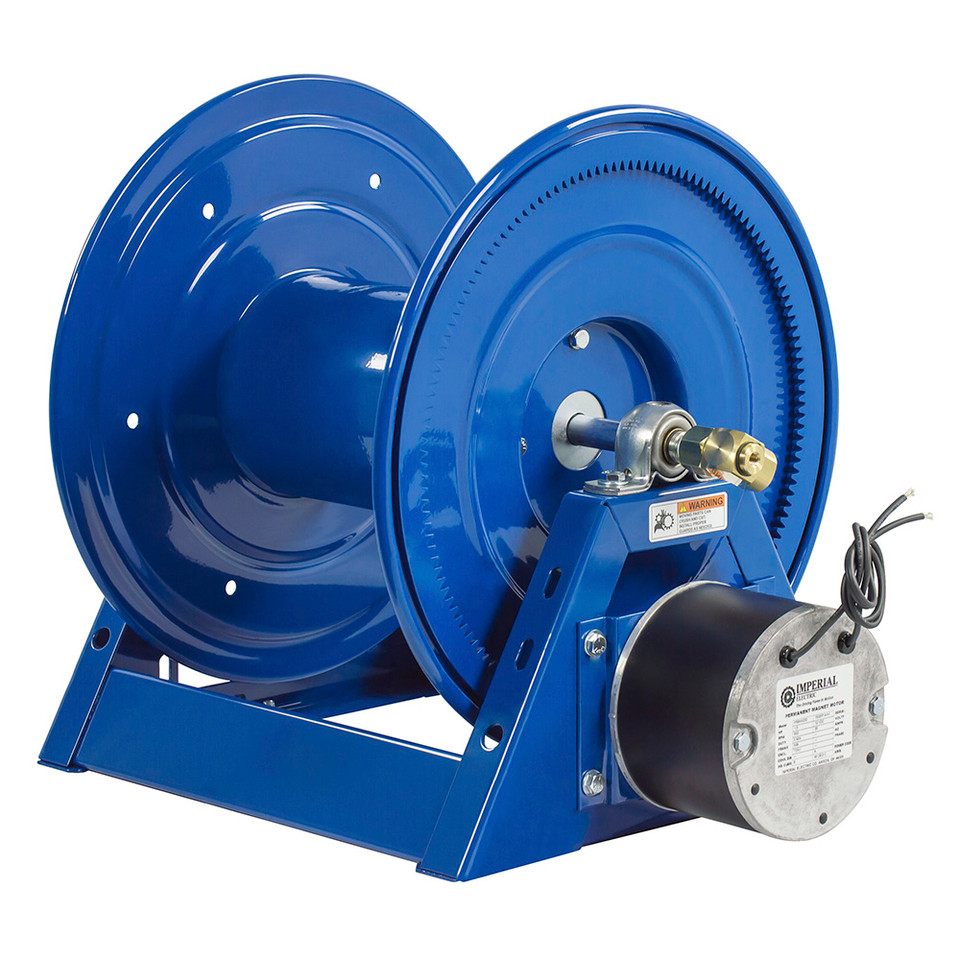

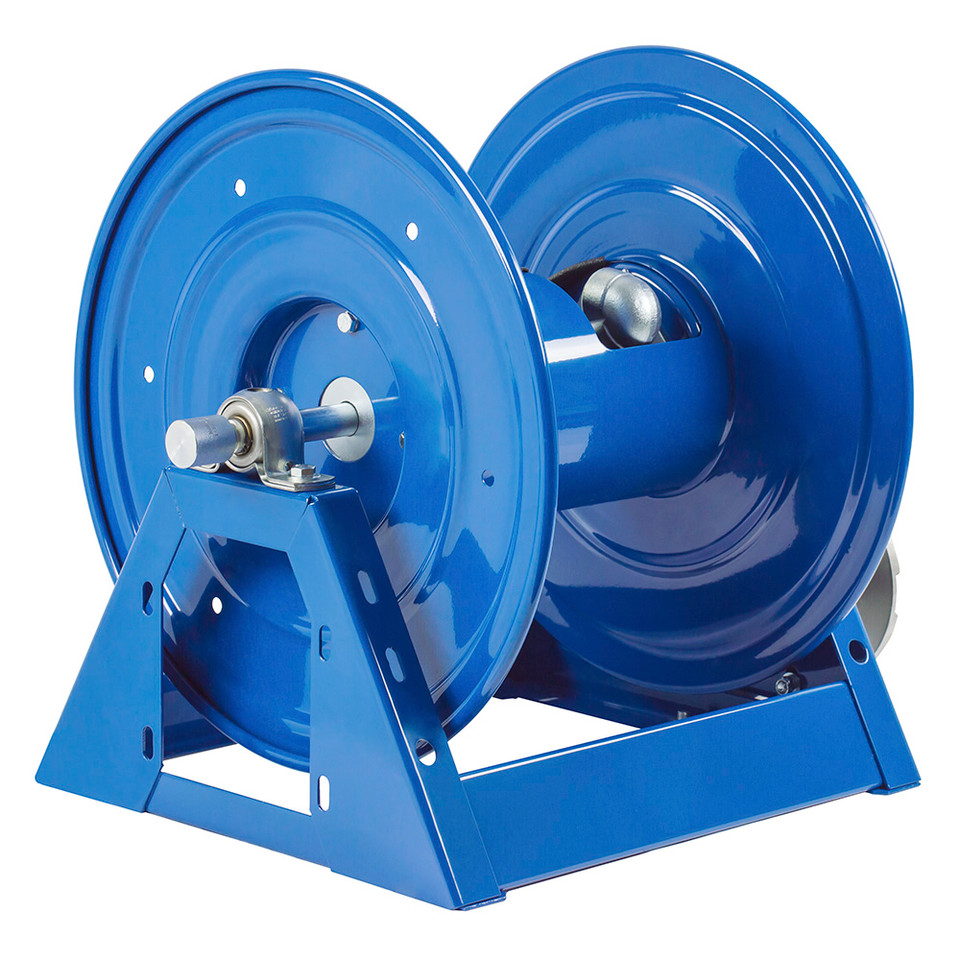

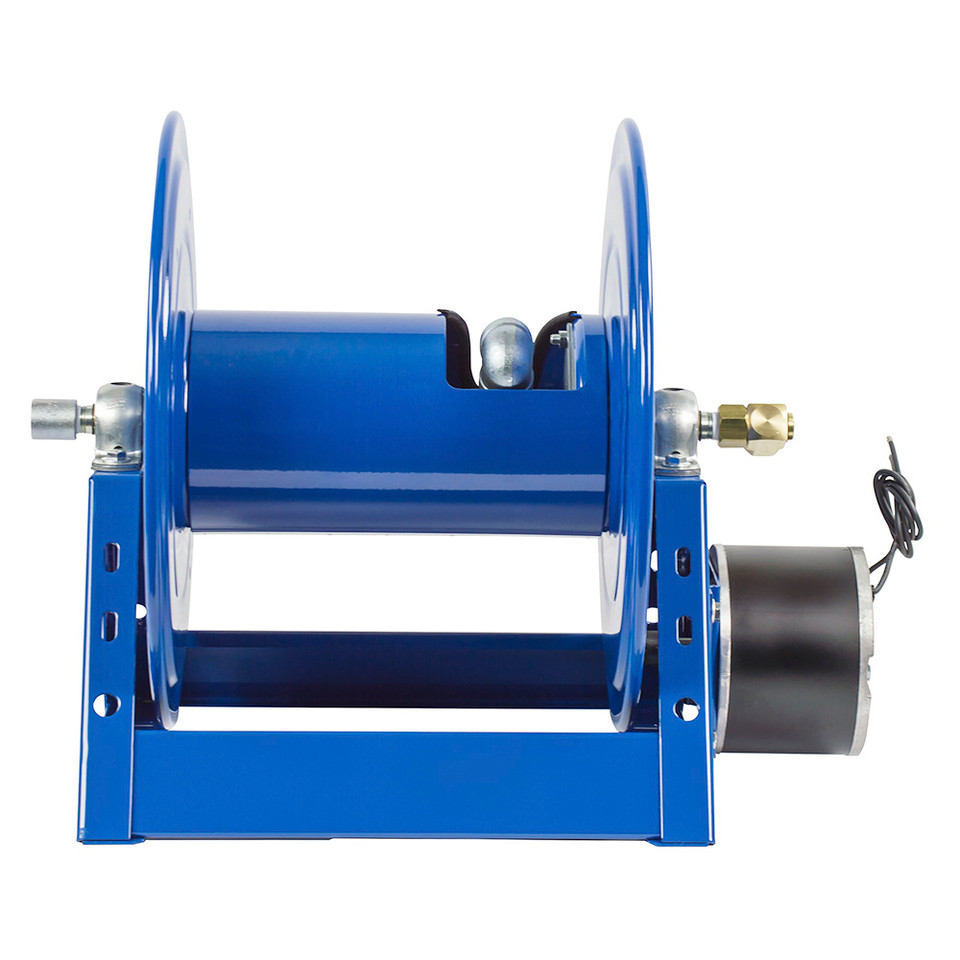

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-250-EA | Motor: 115V AC, 1/2 HP | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 250 ft | Maximum Pressure: 3000 PSI
Features:
- 115V AC 1/2 HP electric motor provides powered hose rewind for faster hose retrieval with minimal manual effort.
- Designed to accommodate up to 250 feet of 3/4-inch hose for applications requiring extended operating range.
- 3000 PSI maximum pressure rating supports demanding high-pressure service when paired with compatible hose and fittings.
- Less hose configuration allows users to install the hose best suited for their operating environment and media requirements.
- 1125 Series construction helps maintain organized hose storage while reducing hose wear caused by improper handling.
- Electric rewind system improves workflow efficiency in facilities where hoses are deployed and retracted frequently.
Made in USA:
Applications:
- Industrial manufacturing facilities requiring powered management of long high-pressure hose assemblies.
- Equipment maintenance departments where frequent hose deployment and retrieval improve service efficiency.
- Construction and heavy equipment service operations using extended hydraulic or industrial hose systems.
- Fixed installation washdown, pressure transfer, and plant maintenance applications with access to 115V AC power.
- General industrial fluid transfer systems utilizing compatible 3/4-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose installed. Users must purchase and install a compatible 3/4-inch hose separately. - Q: What power source does this reel require?
A: The 1125-5-250-EA uses a 115V AC, 1/2 HP electric motor to power the hose rewind mechanism. - Q: How much hose can this reel accommodate?
A: It is designed to store up to 250 feet of 3/4-inch hose, depending on the hose outside diameter and construction. - Q: Can this reel be used in high-pressure applications?
A: Yes. The reel is rated for a maximum operating pressure of 3000 PSI when used with properly matched hose, fittings, and operating conditions.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-250 | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 | 10 |
| 1125-5-250-A | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-A | 4,500 | 59 | 10 |
| 1125-5-250-AB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-AB | 4,500 | 59 | 10 |
| 1125-5-250-C | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-C | 4,500 | 59 | 10 |
| 1125-5-250-E | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-E | 4,500 | 59 | 10 |
| 1125-5-250-EA | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EA | 4,500 | 59 | 10 |
| 1125-5-250-EB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EB | 4,500 | 59 | 10 |
| 1125-5-250-ED | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-ED | 4,500 | 59 | 10 |
| 1125-5-250-EF | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EF | 4,500 | 59 | 10 |
| 1125-5-250-H | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-H | 4,500 | 59 | 10 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
