Coxreels 1125-5-250-H Hydraulic Rewind Hose Reel | 1125 Series | 3/4" Hose Diameter | 250' Hose Length | 3000 Max PSI | Less Hose

For equipment that already runs a hydraulic system excavators, skid steers, forestry machines, agricultural tractors, and service trucks with hydraulic PTOs the Coxreels 1125-5-250-H taps directly into that existing circuit to drive automatic hose retraction with no electrical wiring and no separate air supply. The end-ported hydraulic motor (connecting via 9/16-18 UNF fittings the standard port thread used on mobile equipment hydraulic lines) is the lightest motor option in the 1125 Series at approximately 6 lbs added weight, and delivers reliable hands-free rewinding as long as the machine's hydraulic system is pressurized. The drum holds 250 feet of 3/4-inch I.D. hose at up to 3,000 PSI and 250°F for compressed air, water, and oil service hose. Because the hydraulic motor carries no electrical components, it is inherently spark-free making it the preferred retraction method on job sites where flammable vapors, dust, or open-air fuel handling make electrical motors a liability. The same CNC robotically welded 12-gauge steel "A" frame and ribbed spun-disc drum used across the 1125 Series keeps the assembly solid through years of field use.

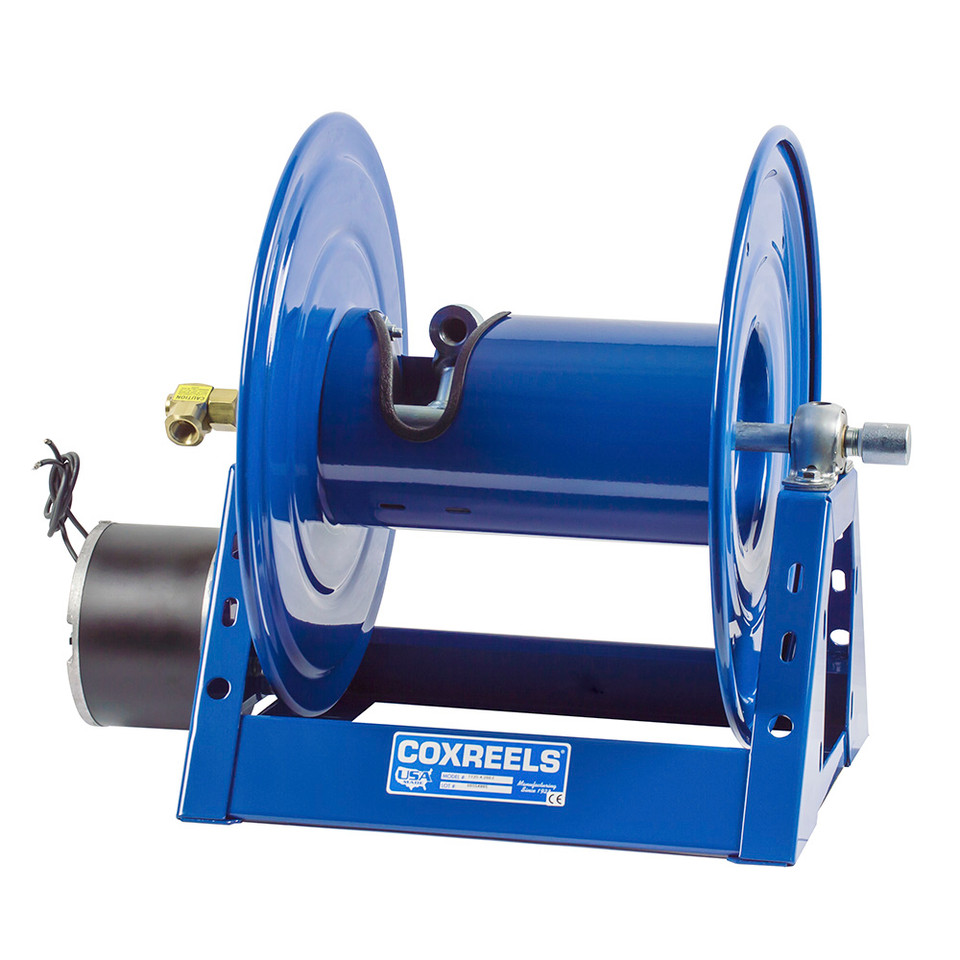

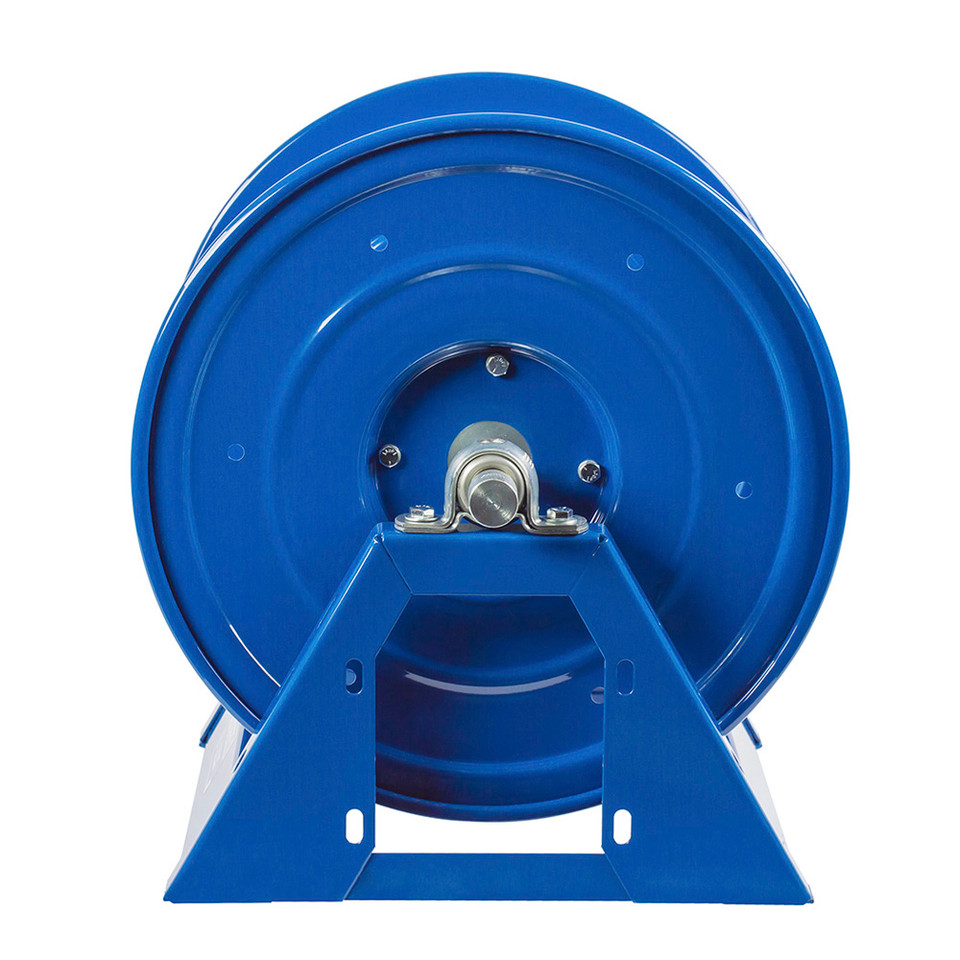

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hydraulic Motor Rewind Hose Reel | Series: 1125 | Motor Type: Hydraulic, End Ported | Motor Port Fitting: 9/16-18 UNF | Drive: Direct Gear (No Chain) | Hose I.D. (in.): 3/4 | Hose O.D. (in.): 1-1/4 | Hose Capacity (ft.): 250 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 3/4 in. F NPT | Swivel Seals: Nitrile | Width (in.): 42 | Height (in.): 19.25 | Length (in.): 17.63 | Mounting Pattern M (in.): 31.44 | Mounting Pattern N (in.): 10 | Base X (in.): 33.38 | Base Y (in.): 16

Features:

• Hydraulic end-ported motor with 9/16-18 UNF port fittings connects to existing mobile equipment hydraulic circuits, no electrical wiring or air supply required
• Inherently spark-free operation no electrical components in the motor assembly, suited to fuel handling areas, grain dust environments, and other sites where ignition risk matters
• Lightest motor option in the 1125 Series at approximately 6 lbs added weight lower profile motor assembly than air or electric alternatives
• Reliable direct gear drive provides quiet, chain-free automatic retraction when the hydraulic system is pressurized
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Machined solid brass 90° full-flow NPT swivel inlet with nitrile seals external fluid path for fast hose replacement without removing the reel from its mount
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• CPC powder coat finish chip resistant and rust inhibiting for outdoor, field, and mobile environments

Made in USA:

2 Year Warranty

Applications:

• Construction equipment & earthmoving air and water service drops on excavators, skid steers, wheel loaders, and telehandlers where the machine's hydraulic circuit is always available at the work site
• Forestry & logging machinery hose management on feller bunchers, forwarders, and log skidders operating in remote areas far from electrical infrastructure
• Agricultural equipment service drops on large tractors, combines, and self-propelled sprayers that run high-flow hydraulic systems and operate in grain dust environments
• Fuel & fluid service trucks air, water, or oil hose retraction on lube trucks and field service vehicles where spark-free operation is required near fuel transfer equipment
• Remote job sites any fixed or mobile installation where 12V/24V electrical power and shop air are both unavailable but a hydraulic power source is present

FAQs:

• Q: What hydraulic supply pressure and flow does the motor require?
  A: Coxreels does not publish specific pressure and flow requirements for the -H motor in their standard catalog. As a general guideline for small gear-type hydraulic motors used in reel retraction, supply pressure typically ranges from 500–2,000 PSI at low flow (2–5 GPM). Consult Coxreels directly or your hydraulic system supplier to confirm compatibility with your machine's circuit before installation.
• Q: Why choose hydraulic over the air motor (-A/-AB) or electric options?
  A: Choose the -H when your machine or vehicle already has an active hydraulic circuit and neither shop air nor a convenient electrical outlet is available at the installation point. The hydraulic motor is also inherently spark-free no electrical components making it the preferred option near fuel handling, grain storage, or other ignition-sensitive environments. Air motor models suit shops with existing compressed air infrastructure; electric models suit fixed facilities or vehicles with accessible 12V/24V power.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 250 feet of 3/4-inch I.D. (1-1/4-inch O.D. max) hose for air, water, or oil service, or up to 500 feet of 1/2-inch I.D. hose with a reducer.
