Coxreels 1125-5-250-C Bevel Geared Crank Hose Reel | 1125 Series | 3/4" Hose Diameter | 250' Hose Length | 3000 Max PSI | Less Hose

For applications where you need manual control over retraction speed pressure washing, agricultural spraying, construction site washdown, and any job where the operator determines how fast the hose comes back in the Coxreels 1125-5-250-C delivers the full 1125 Series platform with a front bevel geared crank and removable handle (a gear-assisted hand crank mounted at the front of the reel that multiplies winding effort so 250 feet of loaded 3/4-inch hose cranks back without the muscle strain of a direct-drive handle). Rated to 3,000 PSI at up to 250°F and compatible with air, water, and oil service hose, it runs on no power source at all no air supply, no electrical connection making it the reliable choice for remote job sites, mobile units, and any location where infrastructure is limited. The removable handle stows flat against the reel for compact storage on truck beds, trailers, and tight equipment bays. Built on the same CNC robotically welded 12-gauge steel "A" frame and spun ribbed-disc drum as every 1125 Series reel.

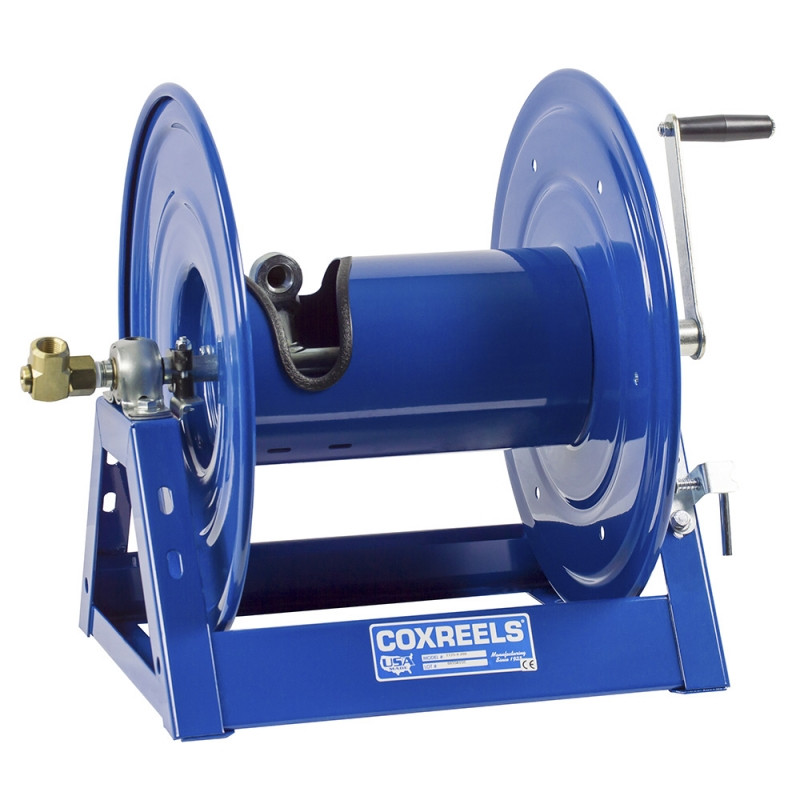

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Bevel Geared Hand Crank Hose Reel | Series: 1125 | Crank Type: Front Bevel Gear with Removable Handle | Hose I.D. (in.): 3/4 | Hose O.D. (in.): 1-1/4 | Hose Capacity (ft.): 250 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 3/4 in. F NPT | Swivel Seals: Nitrile | Width (in.): 42.25 | Height (in.): 18.75 | Length (in.): 17.63 | Drum Width (in.): 28 | Mounting Pattern M (in.): 31.44 | Mounting Pattern N (in.): 10 | Base X (in.): 33.38 | Base Y (in.): 15.38

Features:

• Front bevel geared crank with removable handle gear-assisted winding reduces effort on long, heavy hose runs; handle removes for flat, compact storage
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Long-handled locking pin secures reel from rotation during transport or storage
• Machined solid brass 90° full-flow NPT swivel inlet with nitrile seals external fluid path allows fast hose replacement without removing the reel from its mount
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or removable installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for indoor, outdoor, and mobile use

Made in USA:

2 Year Warranty

Applications:

• Pressure washing & industrial washdown manual retraction gives the operator full speed control on powered washdown equipment where a free-rewind motor isn't needed
• Remote job sites & mobile service units no air supply or electrical connection required; mounts on truck beds, trailers, and skid units
• Agricultural spraying & irrigation managing long water and chemical hose runs in fields and facilities without powered retraction infrastructure
• Construction & landscaping site water supply and washdown where portability and simple operation matter more than automatic retraction
• Plant maintenance & facility service fixed or portable hose management stations where operator-controlled retraction is preferred over motor-driven rewinding

FAQs:

• Q: What is the difference between the plain 1125-5-250 and the -C model?
  A: The base 1125-5-250 uses a solid steel direct hand crank. The -C adds a front bevel gear crank with a removable handle the gear mechanism multiplies winding effort so heavy, fully loaded hose retracts more easily, and the handle removes for flat storage on trucks and trailers.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 250 feet of 3/4-inch I.D. (1-1/4-inch O.D. max) hose, or up to 500 feet of 1/2-inch I.D. hose with a reducer. Select hose rated for your fluid type and pressure requirements.
• Q: When should I choose this manual crank model over a motor-driven reel?
  A: Choose the -C when you don't have a convenient shop air supply or electrical outlet at the installation point, when the reel will be used on a mobile unit or remote site, or when you prefer operator-controlled retraction speed. Motor-driven models (-A, -AB, -E) are the better choice for high-cycle fixed stations where hands-free retraction saves time on every use.
