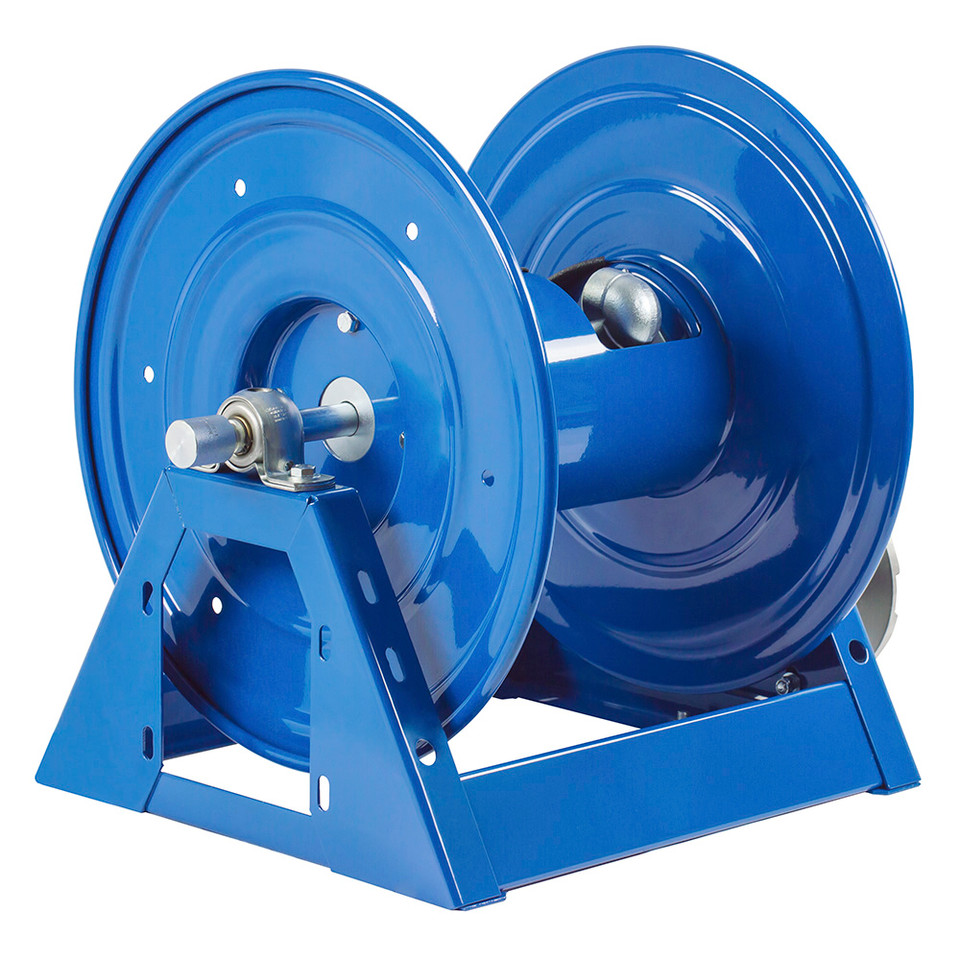

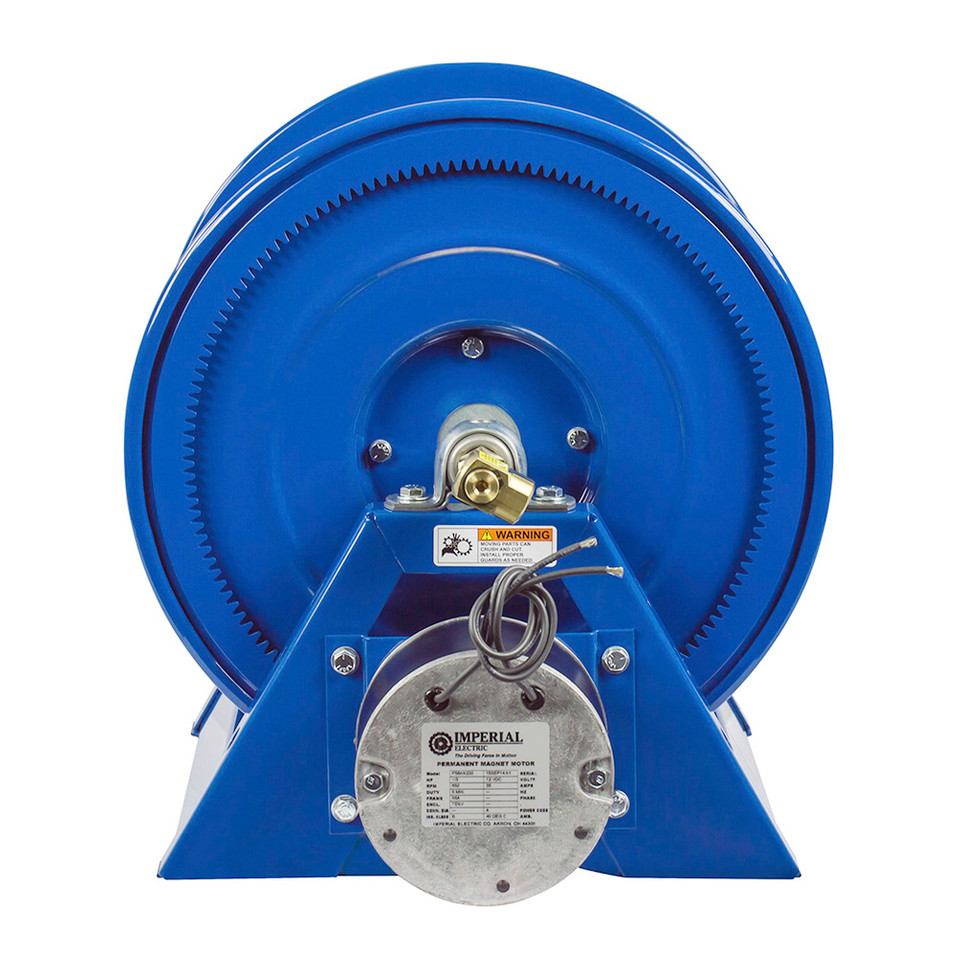

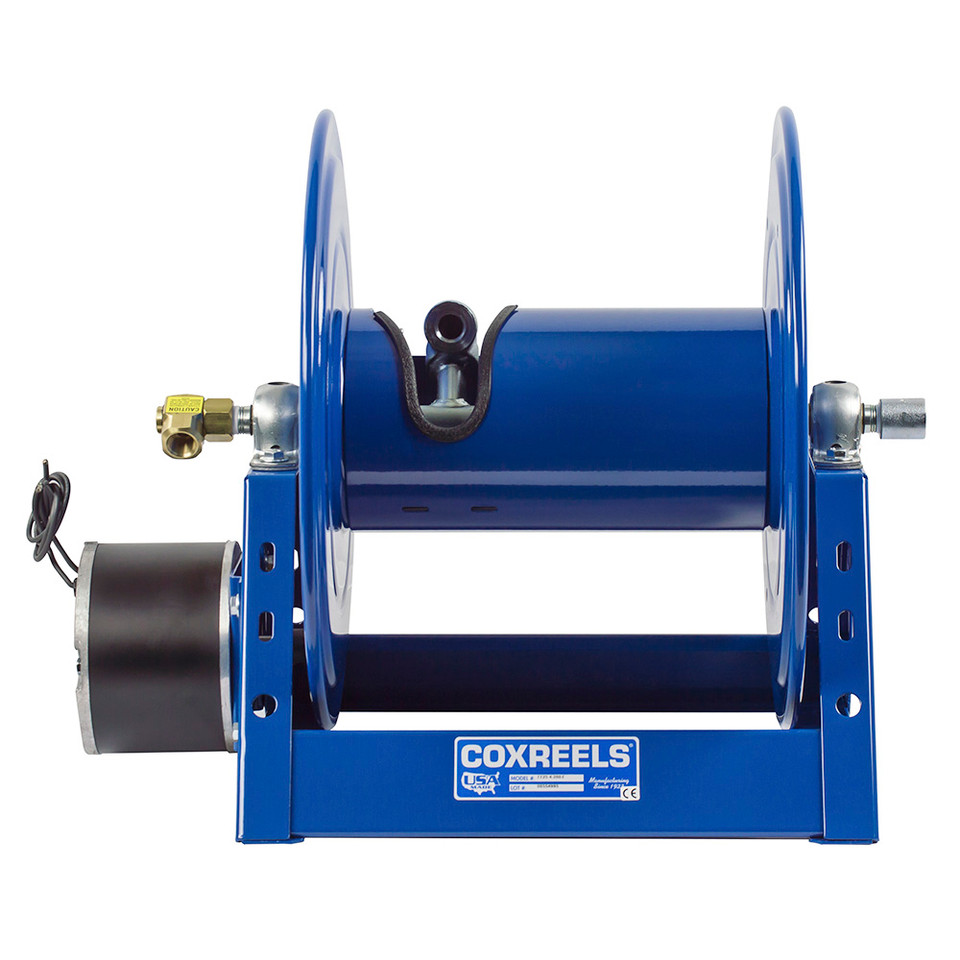

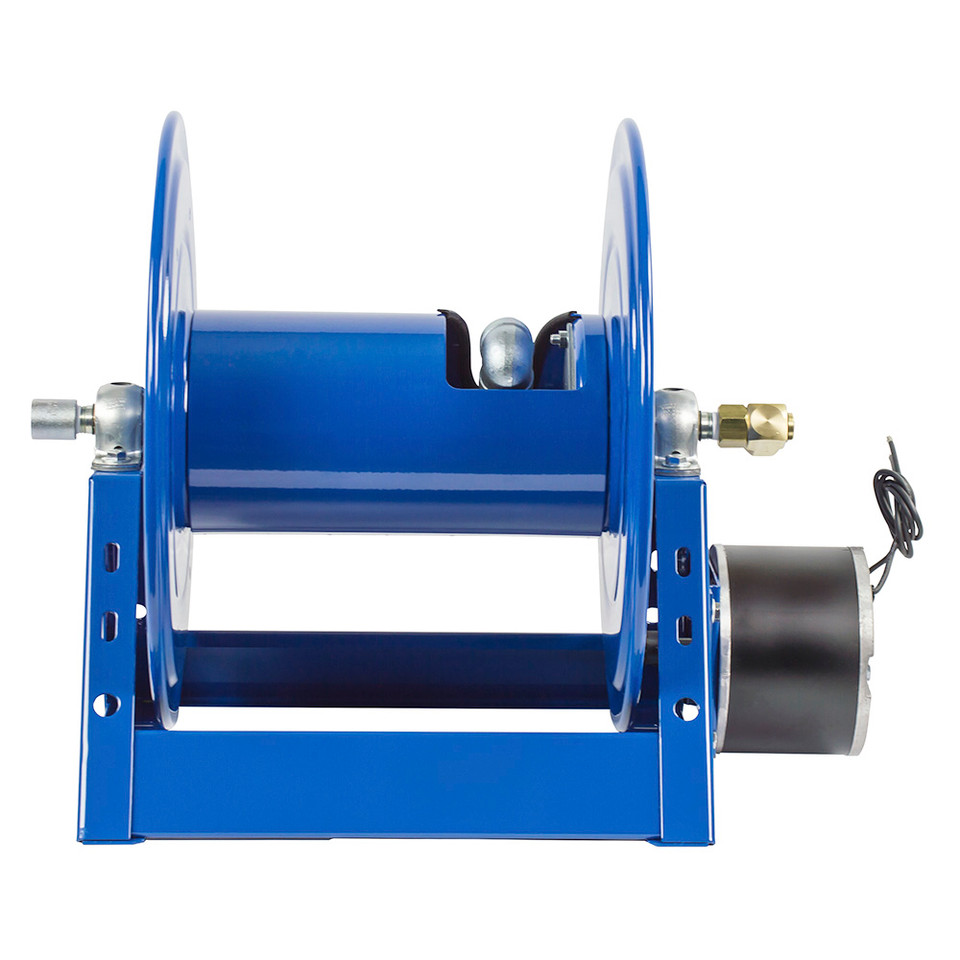

Built for high-pressure fluid transfer in industrial facilities, service fleets, construction sites, and maintenance operations, the Coxreels 1125-5-250-E electric motor rewind hose reel combines the convenience of powered hose retrieval with the durability expected from the 1125 Series. Featuring a 12V DC 1/3 HP motor rewind system, the reel helps reduce manual effort when handling long hose runs, while its 250 ft hose capacity, 3/4" hose I.D., and 3000 PSI maximum operating pressure make it suitable for demanding fluid handling applications where extended reach and controlled hose storage are important.
This model is supplied in a Less Hose configuration, allowing users to install a compatible hose that matches their specific application requirements. The powered rewind system is particularly useful where long hose lengths are deployed frequently, helping improve efficiency while keeping work areas organized and reducing hose wear caused by improper storage.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-250-E | Motor: 12V DC, 1/3 HP | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 250 ft | Maximum Pressure: 3000 PSI
Features:
- 12V DC electric motor rewind minimizes manual hose retrieval during repetitive use.
- Accommodates up to 250 feet of 3/4-inch hose for extended service coverage.
- 3000 PSI pressure rating supports demanding high-pressure hose applications within the reel's intended operating limits.
- Less hose configuration allows users to install the hose best suited to their specific fluid transfer requirements.
- 1125 Series construction is intended for industrial environments where organized hose management is important.
- Powered rewind helps reduce hose handling time while promoting cleaner and safer work areas.
Made in USA:
Applications:
- Industrial plants requiring organized storage of long high-pressure hose assemblies.
- Construction and heavy equipment service operations using extended hose lengths.
- Maintenance shops where powered hose retrieval improves workflow efficiency.
- Fleet maintenance and mobile service vehicles utilizing 12V DC electrical systems.
- General industrial fluid transfer applications using compatible 3/4-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose. A compatible 3/4-inch hose must be purchased and installed separately. - Q: What powers the rewind system?
A: This model uses a 12V DC, 1/3 HP electric motor to rewind the hose, reducing manual handling during retrieval. - Q: What hose length is this reel designed to hold?
A: The reel is designed for up to 250 feet of 3/4-inch hose, depending on the hose outside diameter and application. - Q: Is the reel suitable for high-pressure service?
A: Yes, it is rated for a maximum working pressure of 3000 PSI when used with compatible hose and fittings.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-250 | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 | 10 |
| 1125-5-250-A | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-A | 4,500 | 59 | 10 |
| 1125-5-250-AB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-AB | 4,500 | 59 | 10 |
| 1125-5-250-C | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-C | 4,500 | 59 | 10 |
| 1125-5-250-E | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-E | 4,500 | 59 | 10 |
| 1125-5-250-EA | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EA | 4,500 | 59 | 10 |
| 1125-5-250-EB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EB | 4,500 | 59 | 10 |
| 1125-5-250-ED | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-ED | 4,500 | 59 | 10 |
| 1125-5-250-EF | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EF | 4,500 | 59 | 10 |
| 1125-5-250-H | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-H | 4,500 | 59 | 10 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
