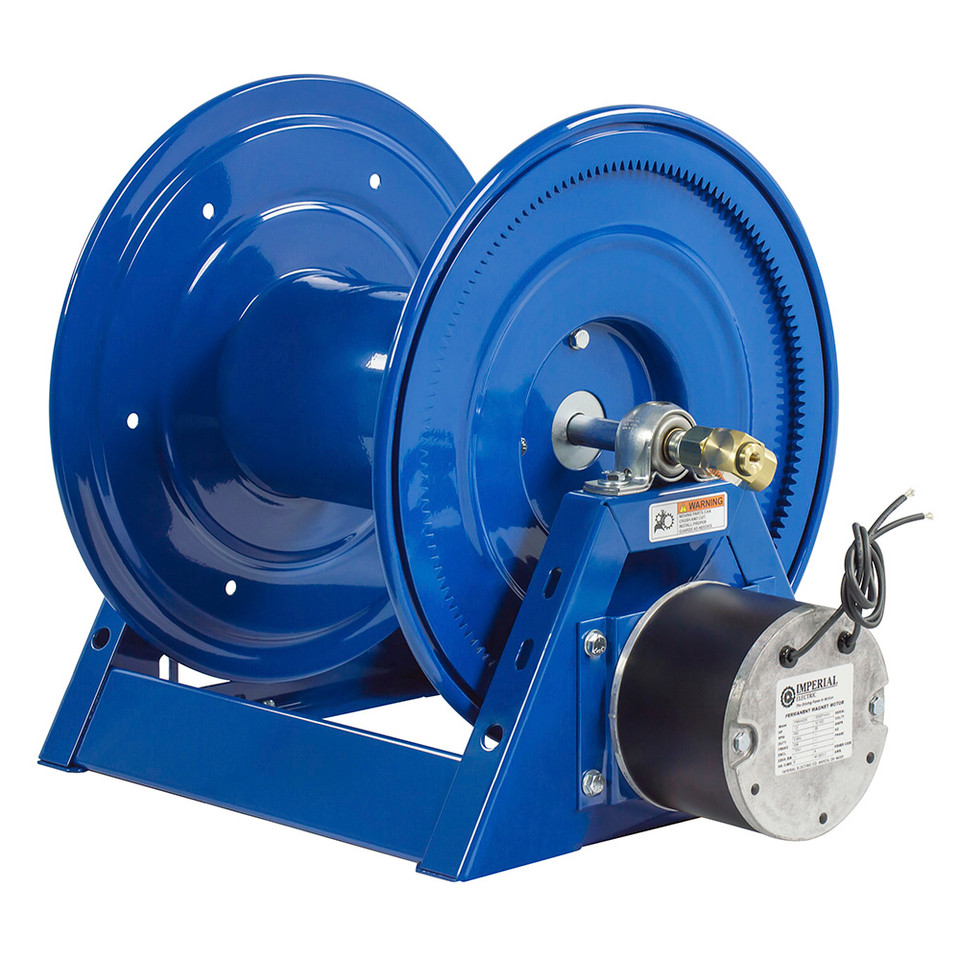

Built for high-pressure hose management in industrial plants, mobile service units, construction sites, and maintenance operations, the Coxreels 1125-5-250-ED electric motor rewind hose reel combines long hose capacity with efficient powered retrieval. Equipped with a 12V DC 1/2 HP electric motor, this reel minimizes manual hose handling while accommodating 250 feet of 3/4-inch hose. Its 3000 PSI maximum operating pressure makes it suitable for demanding fluid transfer applications where reliable hose storage and quick deployment are essential.
Part of the 1125 Series, this model is supplied in a Less Hose configuration, giving users the flexibility to install the hose best suited to their specific application. The powered rewind system helps reduce retrieval time, promotes organized hose storage, and minimizes hose damage caused by dragging, twisting, or improper coiling.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-250-ED | Motor: 12V DC, 1/2 HP | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 250 ft | Maximum Pressure: 3000 PSI
Features:
- 12V DC 1/2 HP electric motor provides powered hose rewind to reduce manual effort during hose retrieval.
- Stores up to 250 feet of 3/4-inch hose for applications requiring extended service reach.
- 3000 PSI maximum pressure rating supports demanding high-pressure service when used with compatible hose and fittings.
- Less hose configuration allows selection of hose material and construction appropriate for the intended application.
- 1125 Series reel construction promotes organized hose storage while helping reduce hose wear and jobsite clutter.
- Powered rewind system improves operational efficiency where hoses are frequently deployed and retracted.
Made in USA:
Applications:
- Mobile service trucks and field maintenance vehicles utilizing 12V DC electrical systems.
- Industrial maintenance operations requiring efficient handling of long high-pressure hose assemblies.
- Construction equipment service where powered hose retrieval reduces downtime between tasks.
- Manufacturing facilities requiring organized hose storage for fluid transfer operations.
- General industrial applications using compatible 3/4-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: The reel is supplied without hose installed. A compatible 3/4-inch hose must be selected and installed separately. - Q: What power source is required for the rewind motor?
A: This model operates with a 12V DC, 1/2 HP electric motor, making it suitable for applications with an available 12V DC power source. - Q: How much hose will this reel hold?
A: The reel is designed to accommodate up to 250 feet of 3/4-inch hose, depending on the hose construction and outside diameter. - Q: Can this reel be used with high-pressure hose?
A: Yes. It has a maximum operating pressure rating of 3000 PSI when used with compatible hose, fittings, and operating conditions.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-250 | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 | 10 |
| 1125-5-250-A | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-A | 4,500 | 59 | 10 |
| 1125-5-250-AB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-AB | 4,500 | 59 | 10 |
| 1125-5-250-C | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-C | 4,500 | 59 | 10 |
| 1125-5-250-E | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-E | 4,500 | 59 | 10 |
| 1125-5-250-EA | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EA | 4,500 | 59 | 10 |
| 1125-5-250-EB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EB | 4,500 | 59 | 10 |
| 1125-5-250-ED | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-ED | 4,500 | 59 | 10 |
| 1125-5-250-EF | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EF | 4,500 | 59 | 10 |
| 1125-5-250-H | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-H | 4,500 | 59 | 10 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
