Coxreels 1125-5-250-EB Electric 24V DC 1/2 HP Motor Rewind Hose Reel | 1125 Series | 3/4" Hose Diameter | 250' Hose Length | 3000 Max PSI | Less Hose

Built for service trucks, utility vehicles, and mobile equipment that run 24V DC electrical systems, the Coxreels 1125-5-250-EB delivers hands-free automatic hose retraction without a separate power source or air supply just wire it to your vehicle's 24V system and the 1/2 HP DC motor (higher torque than the 1/3 HP 12V motor on the standard -E model) pulls 250 feet of 3/4-inch hose back in cleanly at the push of a button. Rated to 3,000 PSI at up to 250°F, the reel handles compressed air, water, and oil service hose across a full range of mobile and fixed installations. The direct gear drive runs quiet with no chain to skip or replace, and the same CNC robotically welded 12-gauge steel "A" frame and spun ribbed-disc drum that anchors every 1125 Series reel keeps the whole assembly tight on the truck bed, wall, or floor mount through years of daily field use.

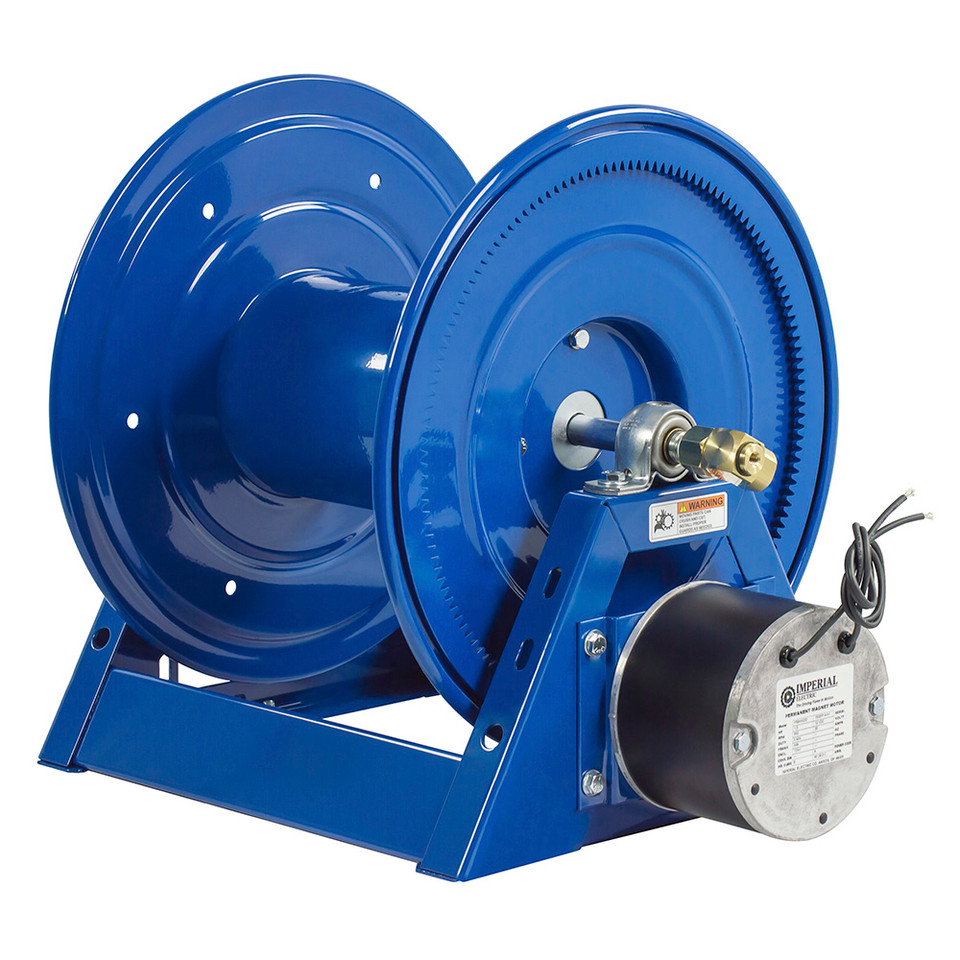

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 | Motor: 24V DC, 1/2 HP | Drive: Direct Gear (No Chain) | Hose I.D. (in.): 3/4 | Hose O.D. (in.): 1-1/4 | Hose Capacity (ft.): 250 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 3/4 in. F NPT | Swivel Seals: Nitrile | Width (in.): 42 | Height (in.): 19.25 | Length (in.): 17.63 | Mounting Pattern M (in.): 31.44 | Mounting Pattern N (in.): 10 | Base X (in.): 33.38 | Base Y (in.): 16

Features:

• 24V DC 1/2 HP electric motor provides automatic hands-free retraction wires directly to vehicle or facility 24V DC power with no air supply required
• Reliable direct gear drive for quiet, chain-free retraction no chain to adjust, skip, or replace over the service life of the reel
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Machined solid brass 90° full-flow NPT swivel inlet with nitrile seals external fluid path for fast hose replacement without removing the reel from its mount
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to extend hose service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for shop, field, and mobile environments

Made in USA:

2 Year Warranty

Applications:

• Service trucks & utility vehicles water, air, or oil hose retraction on boom trucks, lube trucks, water delivery trucks, and utility rigs running 24V DC electrical systems
• Municipal & fleet maintenance fixed or truck-mounted service drops in fleet yards and public works facilities where 24V DC power is the standard vehicle electrical spec
• Agricultural & rural equipment service mobile lube and water service units on tractors, harvesters, and farm equipment that operate on 24V battery banks
• Plant & facility maintenance wall or floor-mounted service stations supplied by a 24V DC power supply where shop air or 115V AC is unavailable at the installation point
• Construction & infrastructure equipment service trucks and site support vehicles where hands-free retraction improves workflow between service calls

FAQs:

• Q: What is the difference between the -EB (24V DC) and the -E (12V DC) models?
  A: The -EB runs on 24V DC and uses a 1/2 HP motor; the -E runs on 12V DC at 1/3 HP. Choose the -EB for heavier-duty commercial trucks and equipment with dual-battery 24V electrical systems, or where the extra motor torque helps retract longer, heavier hose loads. Choose the -E for standard 12V vehicles and lighter-duty installations.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 250 feet of 3/4-inch I.D. (1-1/4-inch O.D. max) hose, or up to 500 feet of 1/2-inch I.D. hose with a reducer. Select hose rated for your fluid type and pressure requirements.
• Q: Is this model explosion-proof or suitable for flammable environments?
  A: No the -EB is a standard electric motor and is not rated for hazardous or explosive atmospheres. For flammable vapor environments, select the -ED (explosion-proof 12V DC) or the air-motor models (-A or -AB), which carry no electrical spark risk.
