For high-cycle service stations where the reel rewinds dozens of times a day busy fleet bays, plant maintenance drops, and construction equipment yards the Coxreels 1125-5-250-AB steps up from the standard -A model with a #6 Gast 6-vane cast iron motor (a heavier-duty air motor that delivers more torque and greater retraction force than the 4-vane aluminum #4 motor, making it the right choice for long, heavy 3/4-inch hose runs that resist retraction under their own weight). The drum holds 250 feet of 3/4-inch I.D. hose at up to 3,000 PSI, rated for air, water, and oil service up to 250°F. Like the rest of the 1125 Series, the reel is built on a CNC robotically welded one-piece 12-gauge steel "A" frame with ribbed spun-steel discs, direct gear-drive retraction (no chain), and a machined brass 90° full-flow NPT swivel.

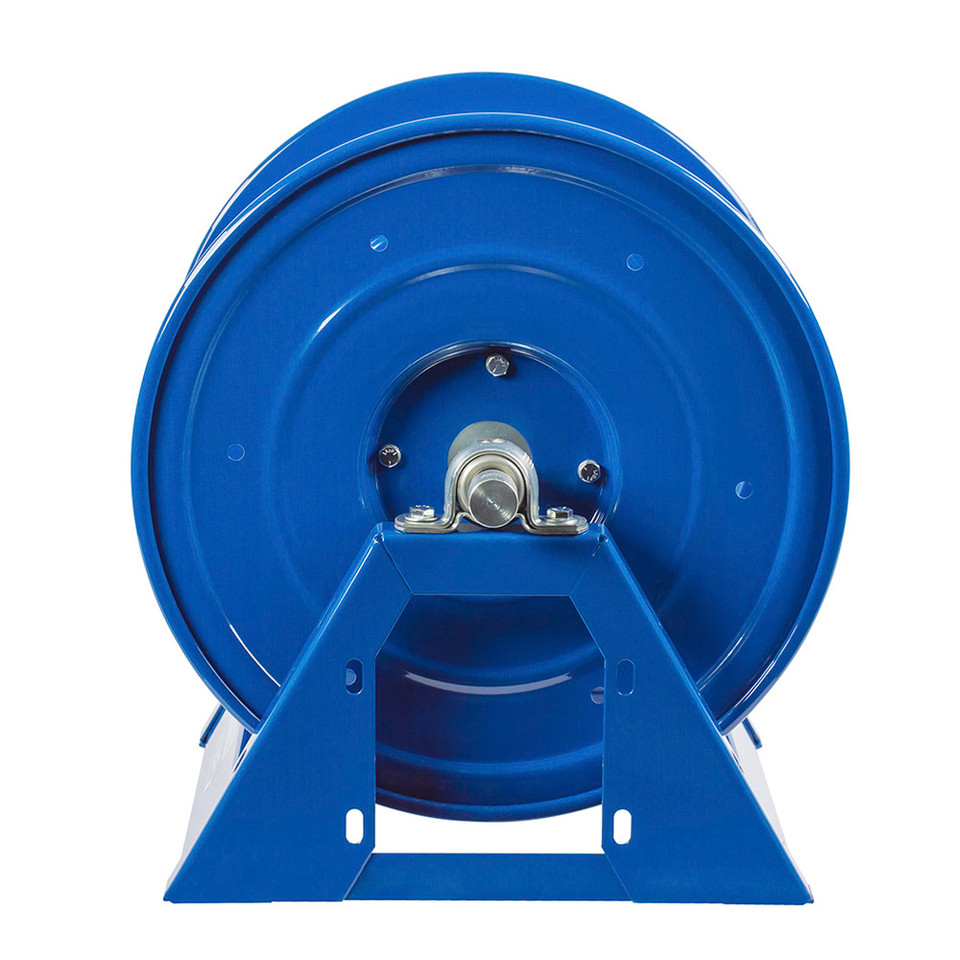

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Air Motor Rewind Hose Reel | Series: 1125 | Motor Type: #6 Gast Compressed Air (6-Vane Cast Iron) | Hose I.D. (in.): 3/4 | Hose O.D. (in.): 1-1/4 | Hose Capacity (ft.): 250 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 3/4 in. F NPT | Swivel Seals: Nitrile | Width (in.): 42.75 | Height (in.): 18.75 | Length (in.): 17.63
Features:
- #6 Gast 6-vane cast iron air motor delivers greater retraction torque than the 4-vane aluminum #4 motor suited to long, heavy hose runs and high-cycle installations
- Reliable direct gear drive provides quiet, chain-free automatic retraction powered by shop air no electrical wiring required
- Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
- Machined solid brass 90° full-flow NPT swivel inlet with nitrile seals designed for fast hose installation and seal maintenance without removing the reel from its mount
- Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect hose and extend service life
- One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent installation and easy reel detachment
- Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength and operator safety
- CPC powder coat finish chip resistant and rust inhibiting for shop and covered outdoor environments
Made in USA:
Applications:
- High-cycle fleet & truck service bays supplying air to impact wrenches and tire equipment across long bay runs, rewinding dozens of times per shift
- Plant & facility maintenance drops delivering compressed air, oil, or water at permanent service stations on the shop floor
- Construction & equipment yards fixed service bays where shop air is available but electrical wiring is impractical or inconvenient
- Agricultural & rural equipment service machine sheds and covered bays where heavy hose runs require more retraction force than a standard motor provides
FAQs:
- Q: What is the difference between the -A (#4 motor) and the -AB (#6 motor)?
A: The -AB uses a 6-vane cast iron Gast motor instead of the 4-vane aluminum motor on the -A. The cast iron motor delivers more retraction torque choose the -AB for long, fully loaded 3/4-inch hose runs or high-cycle installations where the heavier motor earns its place. Both run on standard shop air at 90 PSI. - Q: Does this reel come with hose?
A: No sold less hose. The drum holds up to 250 feet of 3/4-inch I.D. (1-1/4-inch O.D. max) hose, or up to 500 feet of 1/2-inch I.D. hose with a reducer. Select hose rated for your fluid type (air, water, or oil). - Q: Why choose an air motor over an electric motor?
A: The air motor is the right call when shop air is on-hand but adding an electrical outlet is impractical common in machine sheds, outdoor bays, and mobile service trucks. It also eliminates spark risk in environments where flammable vapors may be present. Electric versions are available if you have convenient 115V or 12V DC access.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-250 | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 | 10 |
| 1125-5-250-A | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-A | 4,500 | 59 | 10 |
| 1125-5-250-AB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-AB | 4,500 | 59 | 10 |
| 1125-5-250-C | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-C | 4,500 | 59 | 10 |
| 1125-5-250-E | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-E | 4,500 | 59 | 10 |
| 1125-5-250-EA | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EA | 4,500 | 59 | 10 |
| 1125-5-250-EB | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EB | 4,500 | 59 | 10 |
| 1125-5-250-ED | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-ED | 4,500 | 59 | 10 |
| 1125-5-250-EF | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-EF | 4,500 | 59 | 10 |
| 1125-5-250-H | 3/4" | 1 1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250-H | 4,500 | 59 | 10 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
