Cleco 70ESN2000TA8T NeoTek Inline Corded Electric Nutrunner | 32 RPM | 572 - 1475 (ft-lbs) Torque Range | 1" Square Drive

When large bolted joints need controlled tightening with traceable process feedback, the Cleco 70ESN2000TA8T NeoTek Inline Corded Electric Nutrunner delivers fastening power across a 572 - 1475 ft-lbs torque range. Its 32 RPM rundown speed is suited to high-torque applications where steady torque application and joint control matter more than fast free speed. The inline configuration keeps the tool aligned with the fastener axis, while the 1" square drive supports large industrial sockets used in heavy machinery, rail, off-road, and structural assembly work.

Part of Cleco’s NeoTek 70 Series high torque platform, this corded electric nutrunner uses transducer control, meaning torque is measured by an internal sensor and managed through a compatible controller for repeatable fastening results. With a 775 - 2000 Nm torque range, onboard tool memory, digital communication, and configurable operator feedback, the 70ESN2000TA8T is built for production cells where fastening accuracy, maintenance visibility, and process documentation are required.

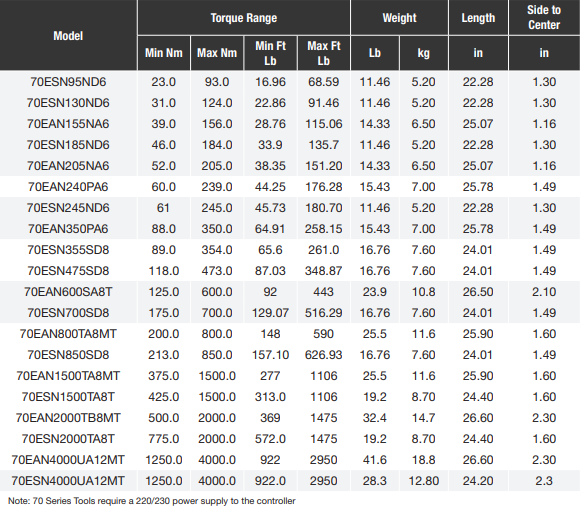

Type: Corded Electric Nutrunner | Brand: Cleco | Model: 70ESN2000TA8T | Series: NeoTek 70 Series | Configuration: Inline | Control: Transducer Control | Torque Range: 572 - 1475 ft-lbs / 775 - 2000 Nm | Free Speed: 32 RPM | Output Drive: 1" Square Drive | Weight: 19.2 lb / 8.7 kg | Length: 24.4" / 621 mm | Side to Center: 1.6" / 41 mm

Features:

• Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% supports controlled fastening on quality-critical joints.
• Transducer control provides measured torque feedback for controller-managed tightening strategies.
• 32 RPM speed allows steady rundown on high-torque fasteners where controlled tightening is required.
• Digital communication supports reliable tool-to-controller performance in production fastening systems.
• Internal temperature monitoring helps protect the tool during demanding production use.
• Configurable LED light rings give operators visual fastening status feedback during the work cycle.
• Data logging with on-board tool memory and preventive maintenance alerts supports process tracking and service planning.
• Compatible with mPro300GCD-NA, mPro300GCD-EMEA, mPro300GCD-APAC, mPro400GCD-P, and mPro400GCD-SH controllers, with total cable length not to exceed 28 meters.

Made in USA:

Applications:

• Heavy equipment production — tightening large frame, suspension, axle, and structural fasteners with controller-managed torque output.
• Rail and transit assembly — fastening bogie, coupler, undercarriage, and bracket hardware where repeatable high torque is required.
• Industrial machinery manufacturing — assembling gearboxes, housings, skids, base plates, and machine frames with documented fastening results.
• Off-road and agricultural equipment plants — applying controlled torque to large bolted joints on tractors, loaders, implements, and machinery frames.
• Energy, infrastructure, and process equipment assembly — fastening large mechanical joints when the controller setup, reaction method, and socket selection are matched to the application.

FAQs:

• Q: What is the difference between this nutrunner and an impact wrench?
  A: This Cleco nutrunner is used for controlled tightening, not impact-style breakaway work. It measures torque through a transducer and works with a controller to manage fastening results, while an impact wrench is typically selected for loosening or general bolting where precision feedback is not the priority.
• Q: Does the 1475 ft-lbs figure mean maximum loosening torque?
  A: No. The 572 - 1475 ft-lbs value is the controlled fastening torque range. Use this range for tightening applications and do not compare it directly to impact wrench breakaway torque ratings.
• Q: Which controllers are compatible with the 70ESN2000TA8T?
  A: The manufacturer lists compatibility with mPro300GCD-NA, mPro300GCD-EMEA, mPro300GCD-APAC, mPro400GCD-P, and mPro400GCD-SH controllers. Total cable length must not exceed 28 meters.
• Q: What does the inline configuration help with?
  A: The inline body keeps the tool, socket, and fastener aligned on the same axis. This is useful in fixtured workstations, vertical fastening positions, and production layouts where straight-on access is available.
• Q: What sockets should be used with this model?
  A: This model uses a 1" square drive. Select properly rated 1" drive industrial power sockets that match the fastener size, torque level, and plant fastening standards.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
