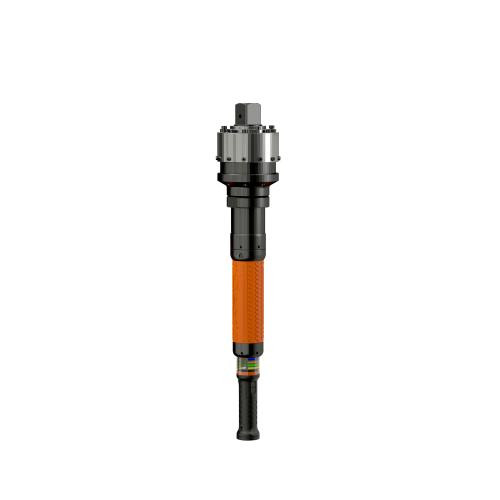

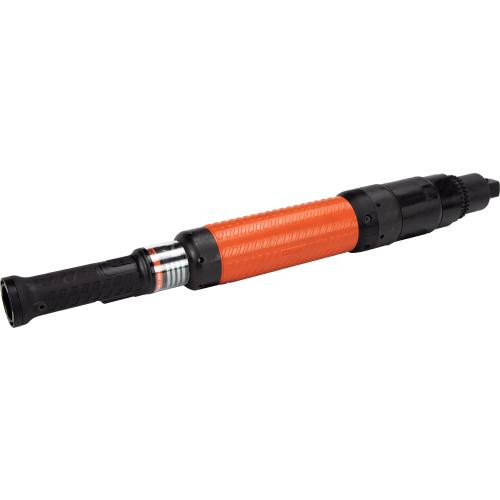

Cleco 70EAN2000TB8MT NeoTek Corded Electric Nutrunner | 35 RPM | 369 - 1475 (ft-lbs) Torque Range | 1" Square Drive

For high-torque fastening where socket access and process control are both critical, the Cleco 70EAN2000TB8MT NeoTek Corded Electric Nutrunner delivers controlled tightening across a 369 - 1475 ft-lbs torque range. Its 35 RPM speed provides deliberate rundown on large fasteners, helping assembly teams manage torque application instead of relying on impact force. The right angle configuration positions the drive at 90 degrees to the tool body, making it useful when large assemblies, frames, housings, or nearby components limit straight-line access.

Built within Cleco’s NeoTek 70 Series platform, this corded electric nutrunner uses transducer control, which measures torque through an integrated sensor for controller-managed fastening. The 1" square drive supports large industrial socketing, while the 500 - 2000 Nm torque capacity serves production applications where repeatability, fastening verification, and operator feedback are part of the assembly process.

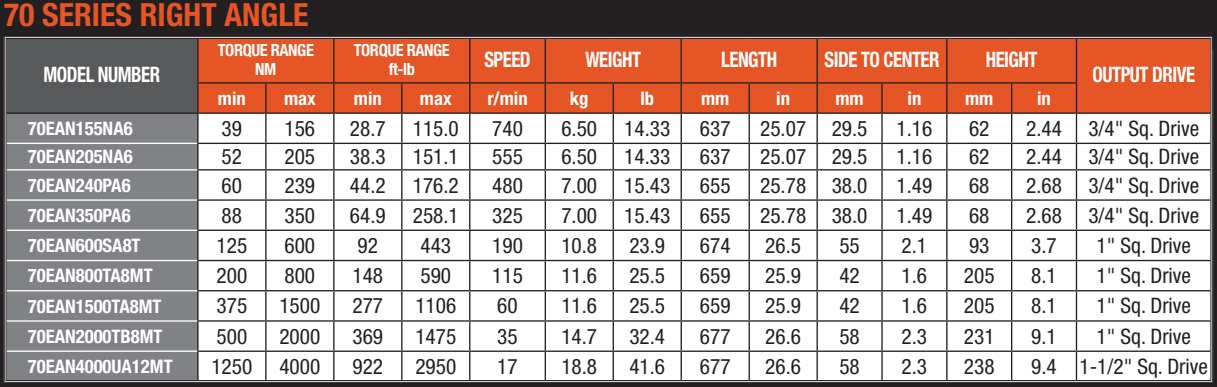

Type: Corded Electric Nutrunner | Brand: Cleco | Model: 70EAN2000TB8MT | Series: NeoTek 70 Series | Configuration: Right Angle | Control: Transducer Control | Torque Range: 369 - 1475 ft-lbs / 500 - 2000 Nm | Free Speed: 35 RPM | Output Drive: 1" Square Drive | Weight: 32.4 lb / 14.7 kg | Length: 26.6" / 677 mm | Side to Center: 2.3" / 58 mm

Features:

• Transducer control supports measured torque output for controller-based fastening programs.
• Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% helps support consistent production fastening results.
• Right angle head improves access around large assemblies, frames, brackets, and restricted fastening locations.
• 1" square drive accommodates large industrial sockets used for high-torque bolting applications.
• Configurable LED light rings provide visual tool-status feedback during the fastening cycle.
• Flexible high torque solution for large fasteners and controlled assembly operations.
• 60% speed increase over current legacy series tools helps improve productivity when upgrading older Cleco systems.
• Corded electric operation avoids battery change downtime in fixed or semi-fixed production workstations.

Made in USA:

Applications:

• Heavy equipment manufacturing — tightening large structural, axle, suspension, and frame fasteners with controlled torque output.
• Rail and transit assembly — fastening bogie, coupler, undercarriage, and bracket hardware where right angle access is beneficial.
• Industrial machinery production — assembling gearboxes, housings, skids, base plates, and machinery frames with repeatable tightening.
• Wind, energy, and infrastructure equipment — controlled bolting on large mechanical assemblies when the joint, socket, and reaction setup are properly specified.
• Truck, off-road, and agricultural equipment plants — applying high torque to large joints where fastening verification is part of the build process.

FAQs:

• Q: What is the main advantage of the right angle configuration?
  A: The right angle head lets the socket approach the fastener from a 90-degree orientation, which is helpful when a straight inline nutrunner cannot fit between components, brackets, or machine frames.
• Q: Is the 1475 ft-lbs value a loosening or breakaway torque rating?
  A: No. The 369 - 1475 ft-lbs range is the controlled fastening torque range for this nutrunner. It should not be compared directly to an impact wrench breakaway torque rating.
• Q: What does transducer control do?
  A: Transducer control uses an internal torque sensor to measure fastening output and communicate with a compatible controller. This allows the system to manage tightening strategies, tool feedback, and fastening records.
• Q: Can this tool be used without a Cleco controller?
  A: This nutrunner is part of a controlled electric fastening system and requires compatible Cleco controller and cable selection. Verify controller compatibility, cable length limits, and power requirements before ordering.
• Q: What type of sockets should be used with this model?
  A: This model uses a 1" square drive. Select properly rated 1" drive industrial power sockets that match the fastener size and the tool’s torque range.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
