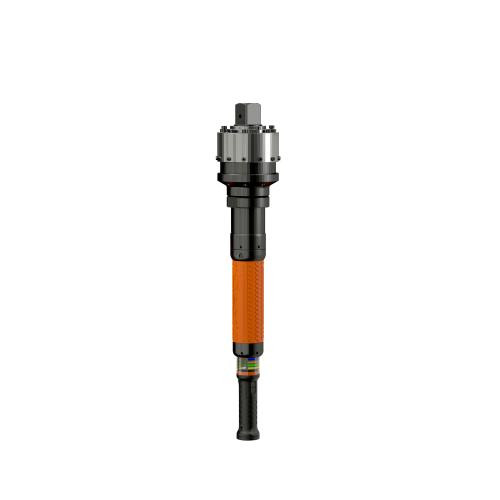

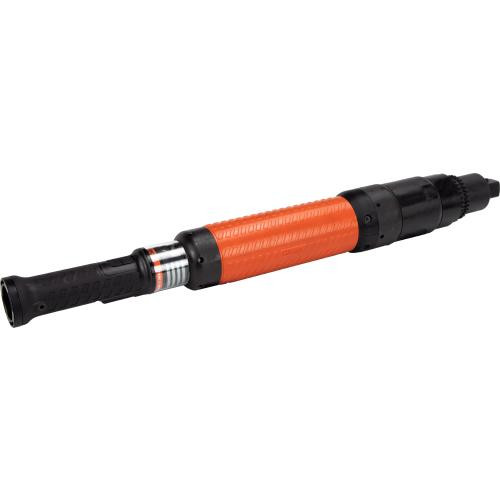

Cleco 70EAN800TA8MT NeoTek Corded Electric Nutrunner | 115 RPM | 148 - 590 (ft-lbs) Torque Range | 1" Square Drive

When high-torque fastening needs controlled rundown speed and traceable assembly performance, the Cleco 70EAN800TA8MT NeoTek 70 Series corded electric nutrunner delivers a 200 - 800 Nm / 148 - 590 ft-lbs torque range with 115 r/min speed for large fasteners and critical joints. Its 1" square drive accepts matching industrial sockets, while the right-angle configuration helps operators reach bolting points where inline tools may not fit.

Built for Cleco precision assembly systems, this high torque corded nutrunner supports digital communication, on-board tool memory, configurable LED light rings, and preventive maintenance alerts. The 25.9" length and 1.6" side-to-center distance help buyers evaluate fixture clearance, while the corded NeoTek platform avoids battery change downtime in production environments.

Type: Corded Electric Nutrunner | Series: NeoTek 70 Series High Torque | Model: 70EAN800TA8MT | Torque Range: 200 - 800 Nm / 148 - 590 ft-lbs | Speed: 115 r/min | Output Drive: 1" Sq. Drive | Weight: 11.6 kg / 25.5 lb | Length: 659 mm / 25.9 in | Side to Center: 42 mm / 1.6 in

Features:

• Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% for controlled fastening on production joints.
• 60% faster operation compared with legacy series tools, helping reduce rundown time in repetitive assembly work.
• Digital communication for reliable performance within Cleco controller-based tightening systems.
• Internal temperature monitoring helps protect the tool during high-torque fastening cycles.
• Configurable LED light rings provide visual tool status feedback for operators and line supervisors.
• Data logging with on-board tool memory supports fastening traceability and production review.
• Preventive maintenance alerts help maintenance teams plan service before unplanned downtime occurs.
• Configurable multi-function buttons and non-contacting, long-lasting switches support production-line usability.
• Quarter-turn tool cable connection simplifies cable attachment during setup or tool changeover.
• Compatible with mPro300GCD-NA, mPro300GCD-EMEA, mPro300GCD-APAC, mPro400GCD-P, and mPro400GCD-SH controllers.
• Total cable length must not exceed 28 meters.

Made in USA:

Applications:

• Heavy machinery assembly: Controlled tightening of large fasteners where 148 - 590 ft-lbs of torque capacity is required.
• Transportation and rail production: Fastening structural, suspension, and frame-related joints that require repeatable torque control.
• Energy and equipment manufacturing: High-torque bolting on large fabricated assemblies, housings, brackets, and support structures.
• Automotive and off-highway assembly: Production fastening where torque data, tool status feedback, and controller integration matter.
• Industrial MRO and tooling departments: Replacement or standardization within existing Cleco NeoTek and mPro controller systems.

FAQs:

• Q: What controller does the Cleco 70EAN800TA8MT work with?
  A: This model is listed as compatible with mPro300GCD-NA, mPro300GCD-EMEA, mPro300GCD-APAC, mPro400GCD-P, and mPro400GCD-SH controllers. Always confirm controller configuration and software setup before installation.
• Q: What does the 148 - 590 ft-lbs torque range mean?
  A: It indicates the tool’s usable fastening torque range in foot-pounds. The same range is also listed as 200 - 800 Nm for metric assembly specifications.
• Q: Is this a pneumatic nutrunner?
  A: No. The 70EAN800TA8MT is a corded electric NeoTek high torque nutrunner, so it is used with compatible Cleco controllers and cabling rather than a compressed air supply.
• Q: Why choose a right-angle nutrunner for high-torque fastening?
  A: A right-angle head places the output drive at 90 degrees to the tool body, which can help reach fasteners near frames, housings, flanges, and other obstructions.
• Q: Does the 1" square drive fit standard sockets?
  A: It is specified with a 1" square drive, so it should be paired with compatible 1" drive impact-rated sockets and any application-specific reaction or tooling setup required by the fastening process.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
