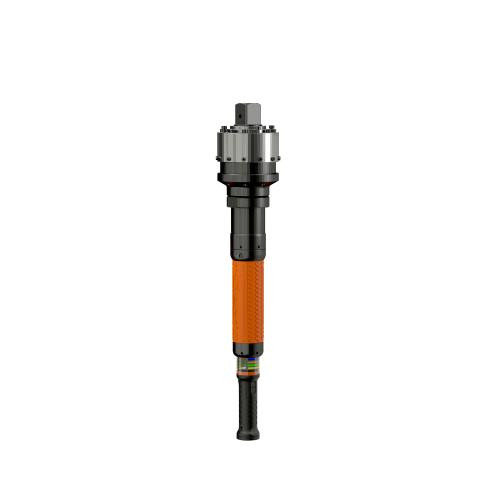

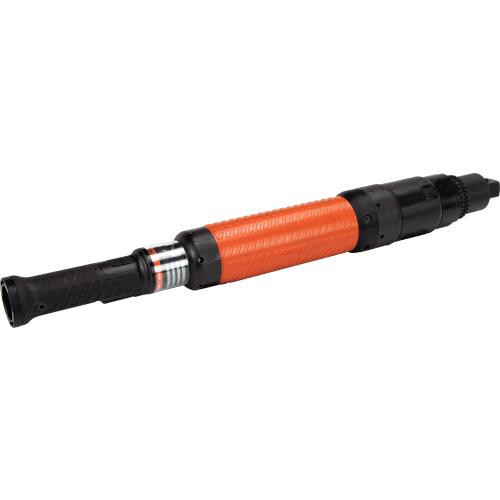

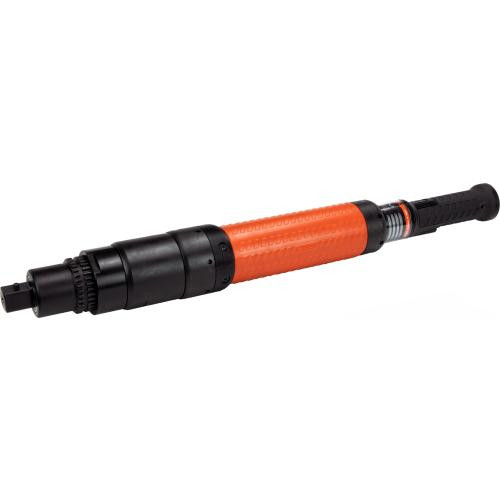

Cleco 70ESN130ND6 NeoTek Inline Corded Electric Nutrunner | 1000 RPM | 22.8 - 91.4 (ft-lbs) Torque Range | 3/4" Square Drive

When a production fastening station needs more torque than lower-range 70 Series models without stepping into slower high-torque tooling, the Cleco 70ESN130ND6 NeoTek Inline Corded Electric Nutrunner delivers a balanced 22.8–91.4 ft-lbs torque range with 1,000 r/min free speed. That combination supports controlled rundown and final tightening on larger bolted joints, while the 3/4" square drive accepts compatible industrial sockets for assembly work where repeatability matters.

Part of Cleco’s NeoTek 70 Series, this inline corded nutrunner is built for precision assembly systems that require torque monitoring, operator feedback, and fastening data. Transducer control means torque is measured electronically during the fastening cycle, helping production teams verify results on safety-critical or quality-sensitive joints. The inline configuration keeps the tool centered with the fastener, making it well suited for fixture-based stations, vertical fastening positions, and applications where straight-line tool alignment improves control.

Type: Inline Corded Electric Nutrunner | Brand: Cleco | Series: NeoTek 70 Series | Model: 70ESN130ND6 | Torque Range: 31–124 Nm / 22.8–91.4 ft-lbs | Speed: 1,000 r/min | Output Drive: 3/4" Square Drive | Weight: 5.20 kg / 11.46 lb | Length: 566 mm / 22.28 in | Side to Center: 33.1 mm / 1.30 in

Features:

• NeoTek smart fastening platform supports controlled tightening for production assembly environments.
• Transducer-controlled torque measurement helps verify fastening results on quality-sensitive joints.
• 1 million cycles maintenance-free based on recommended tool model torque range and clockwise rotation.
• Maintenance-free brushless motor technology supports consistent fastening performance across repeated cycles.
• Programmable multi-function buttons allow the tool interface to be configured for workstation requirements.
• On-board intelligent memory records tool setup values and cycle counts for maintenance scheduling.
• Modular assembly design supports serviceability when repair or tool maintenance is required.
• Inline body style promotes straight-on fastening alignment with compatible 3/4" drive sockets.

Made in USA:

Applications:

• Automotive production: Controlled tightening of brackets, frame components, suspension-related assemblies, and medium-to-high torque bolted joints.
• Heavy equipment assembly: Fastening panels, housings, guards, structural subassemblies, and machinery components where torque traceability is required.
• Appliance and equipment manufacturing: Repetitive nut and bolt tightening on larger assemblies where electronic fastening feedback helps reduce errors.
• Rail, bus, and specialty vehicle builds: Production-line fastening using 3/4" square drive sockets on larger hardware.
• Tool crib standardization: Replacement or expansion within Cleco NeoTek corded electric fastening systems using 70 Series inline tools.

FAQs:

• Q: What is the Cleco 70ESN130ND6 used for?
  A: It is used for controlled production fastening where a specified torque range must be applied repeatedly. It is not a breakaway tool; it is intended for assembly tightening rather than removing seized fasteners.
• Q: How does this model differ from the 70ESN95ND6?
  A: The 70ESN130ND6 has a higher torque range of 22.8–91.4 ft-lbs and a lower speed of 1,000 r/min. The 70ESN95ND6 runs faster at 1,325 r/min but covers a lower torque range.
• Q: What does transducer control mean on a nutrunner?
  A: A transducer is an electronic measuring device that monitors torque during the fastening process. This helps the system confirm whether the fastener reached the programmed torque target.
• Q: Does this tool use standard sockets?
  A: This model has a 3/4" square drive, so it should be used with compatible 3/4" drive sockets rated for the application. Always match the socket, extension, and reaction setup to the torque range being used.
• Q: Is a controller required?
  A: NeoTek corded electric nutrunners are part of a controlled fastening system and require compatible Cleco system components. Confirm the correct controller, cable, reaction equipment, and software requirements before ordering.
