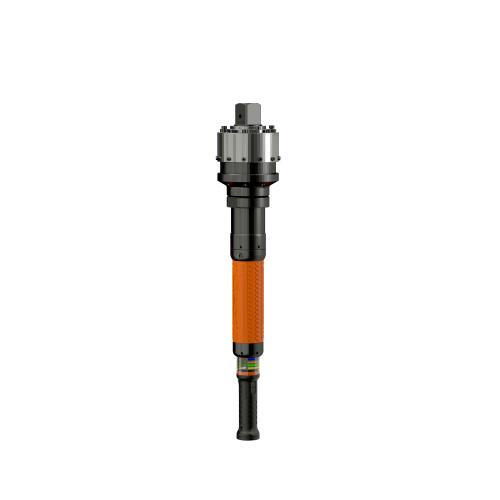

Cleco 70EAN350PA6 NeoTek Corded Electric Nutrunner | 325 RPM | 64.9 - 258.1 (ft-lbs) Torque Range | 3/4" Square Drive

Built for higher-torque production fastening, the Cleco 70EAN350PA6 NeoTek corded electric nutrunner delivers an 88 - 350 Nm / 64.9 - 258.1 ft-lb torque range with 325 r/min speed for controlled tightening on large threaded fasteners and critical joints. Its right-angle configuration helps operators work around brackets, frames, fixtures, and other assembly obstructions, while the 3/4" square drive supports socket-based fastening in this torque class. Transducer control means the tool measures torque through an internal sensing system, helping production teams maintain repeatable tightening results on quality-sensitive assemblies.

Part of the Cleco NeoTek 70 Series fastening platform, the 70EAN350PA6 is suited for smart assembly environments that require programmable fastening, workstation feedback, and fastening data capture. The tool’s 15.43 lb weight, 25.78 in length, and 1.49 in side-to-center distance are important for fixture planning, reaction management, and tool support selection in production cells where access and repeatability both matter.

Type: Corded Electric Nutrunner | Series: NeoTek 70 Series | Configuration: Right Angle | Control Type: Transducer Control | Torque Range: 88 - 350 Nm / 64.9 - 258.1 ft-lbs | Speed: 325 r/min | Output Drive: 3/4" Square Drive | Weight: 7.00 kg / 15.43 lb | Length: 655 mm / 25.78 in | Side to Center: 38.0 mm / 1.49 in

Features:

• Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% for controlled fastening in production assembly environments.
• Over 25% lighter tool and cable system than the existing tool family, helping reduce handling effort during repetitive fastening cycles.
• Digital communication supports reliable performance between the tool and compatible NeoTek control equipment.
• Internal temperature monitoring helps protect the tool during extended production use.
• Configurable LED light rings provide visual status feedback for operators at the fastening station.
• Data logging with on-board tool memory supports fastening traceability and process review.
• Preventive maintenance alerts help maintenance teams plan service before unplanned downtime interrupts production.
• Compatible with mPro400GCD-P controller, 961560-xxx tool cable, and 961923-xxx tool extension cable.

Made in USA:

Applications:

• Heavy equipment assembly: Tightening larger frame, bracket, mount, and structural fasteners where controlled torque is required.
• Off-road and machinery manufacturing: Applying repeatable torque to large bolted joints on construction, agricultural, and industrial equipment assemblies.
• Automotive and transportation production: Supporting high-torque fastening operations where torque control and assembly feedback are part of the production standard.
• Rail and large vehicle assembly: Running down fasteners near fixtures, housings, and frame members where a right angle head improves access.
• Quality-critical fastening cells: Used where transducer-controlled torque measurement, operator feedback, and tool memory help verify fastening results.

FAQs:

• Q: What torque range does the Cleco 70EAN350PA6 cover?
  A: This model covers 88 - 350 Nm, or 64.9 - 258.1 ft-lbs. Use this range when matching the tool to the fastener size, joint design, and required assembly torque.
• Q: What does transducer control do?
  A: Transducer control uses an internal torque-sensing system to measure fastening output. This helps support repeatable tightening and process verification in production assembly applications.
• Q: Why choose a right angle nutrunner for this torque range?
  A: A right angle nutrunner helps operators reach fasteners near frames, brackets, housings, and fixtures where a straight inline tool may not fit. It is often selected for larger assemblies where access is limited but torque control is still required.
• Q: Does this tool require reaction management?
  A: Yes. At this torque level, reaction force should be planned into the workstation using appropriate reaction tooling, tool supports, fixturing, or plant-approved safety methods.
• Q: Is the 70EAN350PA6 the same as an impact wrench?
  A: No. This is a precision electric assembly nutrunner for controlled tightening, not a general-purpose impact wrench for repair work. It is used in engineered fastening processes where torque control, feedback, and traceability are required.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
