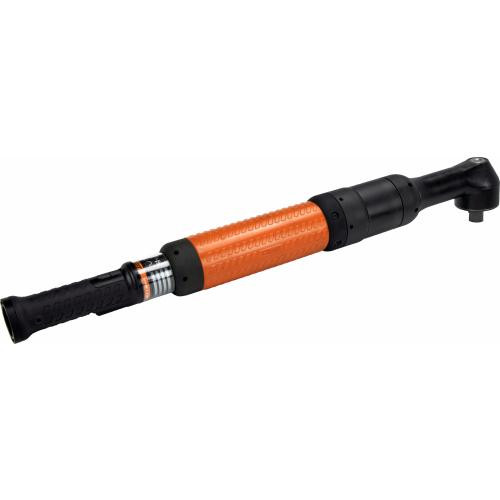

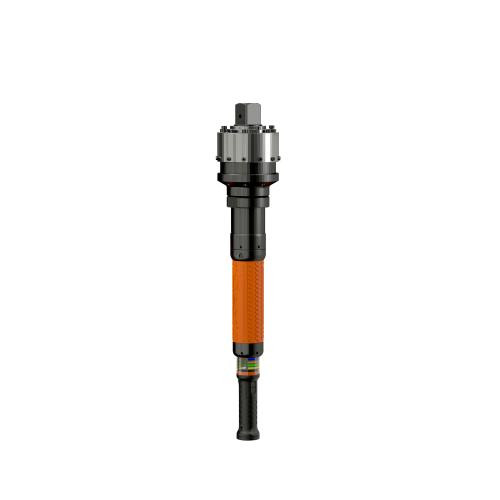

Cleco 70EAN240PA6 NeoTek Corded Electric Nutrunner | 480 RPM | 44.2 - 176.2 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-torque production fastening, the Cleco 70EAN240PA6 NeoTek corded electric nutrunner delivers a 60 - 239 Nm / 44.2 - 176.2 ft-lb torque range with 480 r/min speed for controlled rundown on larger threaded fasteners and critical joints. Its right angle configuration helps operators reach fasteners around fixtures, housings, brackets, and structural assemblies, while the 3/4" square drive supports higher-torque socket applications. Transducer control means the tool measures torque through an internal sensing system, helping production teams improve fastening repeatability and process verification.

Part of Cleco’s NeoTek fastening system, this 70 Series right angle nutrunner supports programmable assembly strategies, visual operator feedback, and tool-level data capture. The 70EAN240PA6 is compatible with the mPro400GCD-P controller, 961560-xxx tool cable, and 961923-xxx tool extension cable, making it a strong fit for assembly lines using Cleco corded electric fastening platforms.

Type: Corded Electric Nutrunner | Series: NeoTek 70 Series | Configuration: Right Angle | Control Type: Transducer Control | Torque Range: 60 - 239 Nm / 44.2 - 176.2 ft-lbs | Speed: 480 r/min | Output Drive: 3/4" Square Drive | Weight: 7.00 kg / 15.43 lb | Length: 655 mm / 25.78 in | Side to Center: 38.0 mm / 1.49 in | Height: 68.0 mm / 2.68 in

Features:

• Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% for controlled fastening in production environments.
• Over 25% lighter tool and cable system than the existing tool family, helping reduce handling effort during repetitive fastening cycles.
• Digital communication supports reliable tool-to-controller performance.
• Internal temperature monitoring helps protect the tool during extended production use.
• Configurable LED light rings provide clear visual feedback for operators at the fastening station.
• Data logging with on-board tool memory supports fastening traceability and process review.
• Preventive maintenance alerts help maintenance teams plan service before unplanned downtime occurs.
• Compatible with mPro400GCD-P controller, 961560-xxx tool cable, and 961923-xxx tool extension cable.

Made in USA:

Applications:

• Heavy machinery assembly: Tightening larger bolts on frames, brackets, housings, and mounted components where controlled torque is required.
• Automotive and transportation production: Running down high-torque fasteners on assembly lines that require repeatability and feedback from the fastening system.
• Rail, off-road, and equipment manufacturing: Applying controlled torque to larger joints where a right angle head helps operators work around fixtures and obstructions.
• Industrial manufacturing cells: Integrating with Cleco NeoTek controllers and cables for programmed fastening sequences and data-driven tightening operations.
• Quality-critical fastening: Supporting assembly processes where torque control, tool memory, and LED status feedback help confirm fastening results.

FAQs:

• Q: What does transducer control mean on the 70EAN240PA6?
  A: Transducer control means the nutrunner uses an internal torque-sensing system to measure fastening output. This supports repeatable tightening and process control in production assembly environments.
• Q: What controller works with this Cleco NeoTek nutrunner?
  A: Cleco lists the 70EAN240PA6 as compatible with the mPro400GCD-P controller. The tool is also listed for use with 961560-xxx tool cables and 961923-xxx tool extension cables.
• Q: What is the benefit of the right angle head?
  A: The right angle configuration helps the operator reach fasteners near frames, fixtures, housings, and other obstructions. This is useful when a straight inline tool cannot approach the fastener squarely.
• Q: What size drive does this model use?
  A: The 70EAN240PA6 uses a 3/4" square drive. Sockets, extensions, and reaction tooling should be selected to match the drive size, torque range, and joint requirements.
• Q: Is this nutrunner a replacement for an impact wrench?
  A: No. This is a precision electric assembly nutrunner for controlled tightening, not a general repair impact wrench. It is selected for engineered fastening processes where torque control and system feedback matter.
