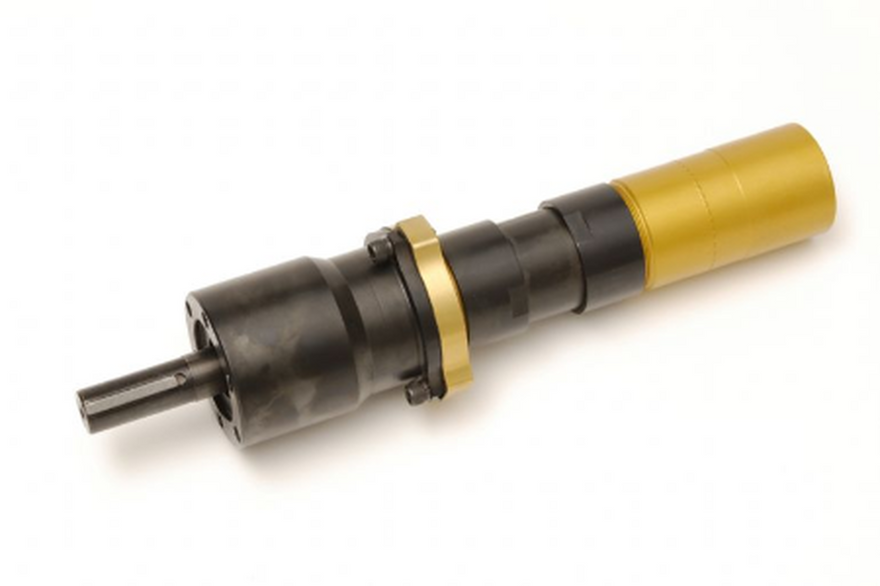

Ingersoll Rand M007RVR063BR6 Multi-Vane Reversible Air Motor | Planetary Gear | 0.64 HP | 292 RPM | 26.9 (ft-lbs) Starting Torque | 35.9 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR063BR6 Multi-Vane Reversible Air Motor is engineered for industrial applications requiring dependable bidirectional pneumatic power with high output torque and reduced operating speeds. Featuring a multi-vane design and planetary gearing, this air motor delivers 0.64 HP while operating at a free speed of 292 RPM. Its reversible configuration enables both clockwise and counterclockwise shaft rotation, making it an excellent choice for OEM machinery, automated production systems, positioning equipment, indexing mechanisms, material handling systems, and other industrial applications that require reliable directional control.

The M007RVR063BR6 develops a 26.9 lb-ft starting torque, providing exceptional load-starting capability for demanding applications, and delivers a 35.9 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear arrangement efficiently multiplies output torque while maintaining a compact motor assembly, making this model ideal where high torque and limited installation space are equally important.

Type: Multi-Vane Air Motor | Model: M007RVR063BR6 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.64 HP | Free Speed: 292 RPM | Starting Torque: 26.9 lb-ft | Stall Torque: 35.9 lb-ft

Features:

• Multi-vane air motor delivers smooth and dependable rotary power using compressed air.
• Reversible configuration supports clockwise and counterclockwise shaft rotation for bidirectional industrial applications.
• Planetary gear system efficiently multiplies output torque while maintaining a compact motor footprint.
• 0.64 HP output supports demanding pneumatic drive applications.
• 292 RPM free speed is well suited for equipment requiring controlled, high-torque rotary motion.
• 26.9 lb-ft starting torque provides strong load-starting capability for demanding operating conditions.
• 35.9 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated manufacturing and assembly equipment.
• Industrial positioning, indexing, and transfer mechanisms.
• Material handling and conveying systems.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RVR063BR6 reversible?
  A: Yes. This model is designed to operate in both clockwise and counterclockwise directions for applications requiring bidirectional rotation.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently transfers power while increasing output torque in a compact motor package, making it suitable for industrial equipment requiring high torque at lower operating speeds.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 292 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
