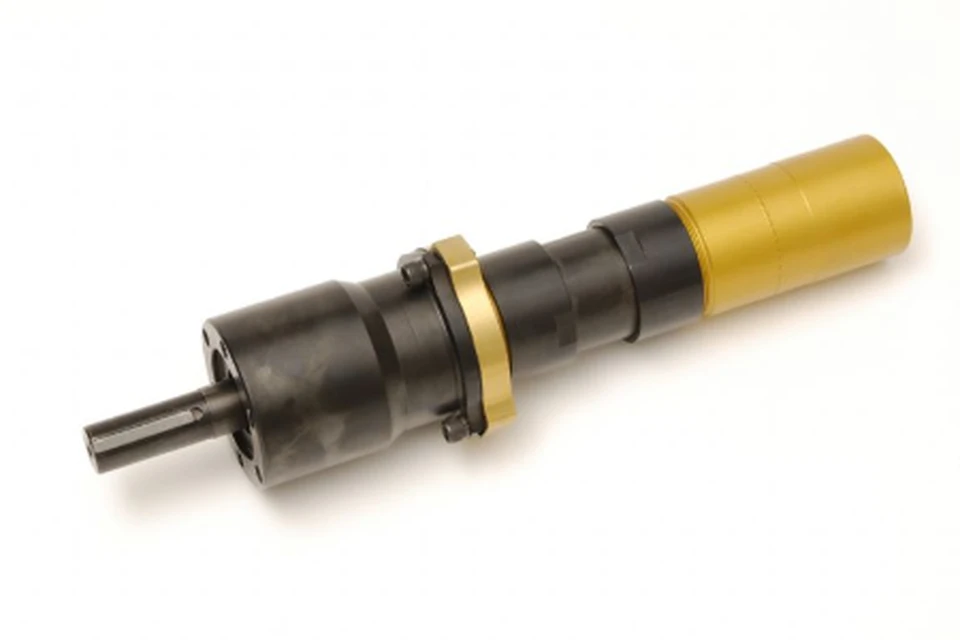

Ingersoll Rand M007RHR151BR6 Multi-Vane Non-Reversible Air Motor | Planetary Gear | 0.76 HP | 129 RPM | 76.5 (ft-lbs) Starting Torque | 102 (ft-lbs) Stall Torque

Ingersoll Rand M007RHR151BR6 Multi-Vane Non-Reversible Air Motor is engineered for industrial applications requiring exceptionally high output torque, controlled low-speed operation, and dependable pneumatic performance. Featuring a multi-vane design with planetary gearing, this air motor delivers 0.76 HP and operates at a free speed of 129 RPM. Its non-reversible configuration is intended for continuous single-direction rotation, making it well suited for OEM machinery, heavy-duty conveyors, process equipment, material handling systems, indexing mechanisms, and automated manufacturing equipment where maximum rotary force is required.

The M007RHR151BR6 develops a 76.5 lb-ft starting torque, providing exceptional load-starting capability for demanding industrial applications, and delivers a 102 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear system efficiently multiplies torque while maintaining a compact motor assembly, making it an excellent solution for installations where high torque and limited mounting space are equally important.

Type: Multi-Vane Air Motor | Model: M007RHR151BR6 | Rotation: Non-Reversible | Gear Type: Planetary Gear | Power: 0.76 HP | Free Speed: 129 RPM | Starting Torque: 76.5 lb-ft | Stall Torque: 102 lb-ft

Features:

• Multi-vane air motor provides smooth and dependable rotary power using compressed air.
• Non-reversible configuration is designed for continuous operation in a single rotational direction.
• Planetary gear system efficiently multiplies output torque while maintaining a compact motor profile.
• 0.76 HP output supports demanding industrial pneumatic drive applications.
• 129 RPM free speed is ideal for equipment requiring precise, high-torque rotary motion.
• 76.5 lb-ft starting torque delivers outstanding load-starting capability for heavy-duty applications.
• 102 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring dependable single-direction pneumatic rotary power.
• Heavy-duty conveyors and material handling equipment.
• Industrial processing, batching, and mixing systems.
• Indexing, positioning, and automated manufacturing machinery.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RHR151BR6 reversible?
  A: No. This model is manufactured as a non-reversible air motor intended for continuous operation in one rotational direction.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently multiplies output torque while maintaining a compact design, making it suitable for demanding low-speed industrial applications.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 129 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
