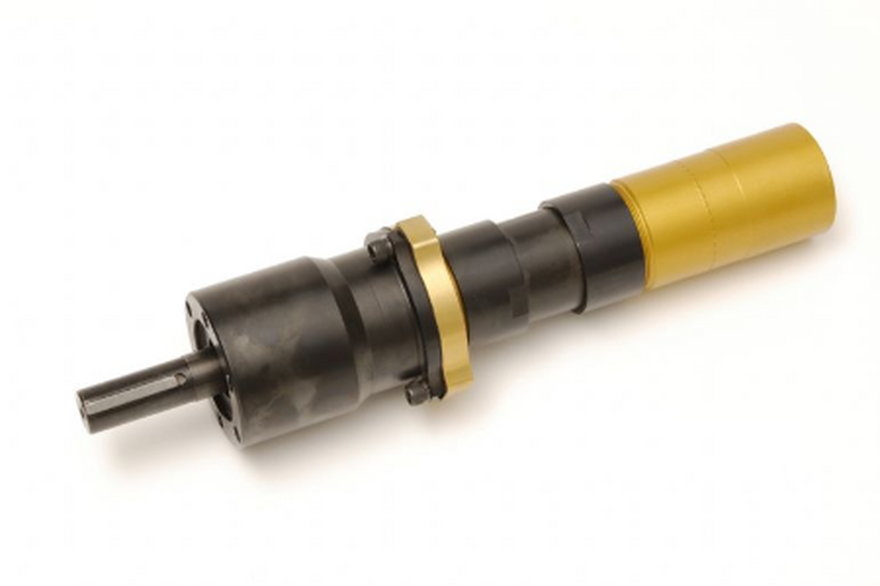

Ingersoll Rand M007RHR063BR6 Multi-Vane Non-Reversible Air Motor | Planetary Gear | 0.79 HP | 321 RPM | 33.5 (ft-lbs) Starting Torque | 44.7 (ft-lbs) Stall Torque

Ingersoll Rand M007RHR063BR6 Multi-Vane Non-Reversible Air Motor is engineered to deliver dependable pneumatic power for industrial applications requiring very high output torque and controlled low-speed operation. Featuring a multi-vane design with planetary gearing, this air motor develops 0.79 HP and operates at a free speed of 321 RPM. Its non-reversible configuration is designed for continuous single-direction rotation, making it well suited for OEM machinery, material handling equipment, conveyors, process systems, indexing equipment, and automated production machinery where high torque and reliable pneumatic performance are essential.

The M007RHR063BR6 develops a 33.5 lb-ft starting torque, providing excellent starting capability under demanding loads, and delivers a 44.7 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear system efficiently multiplies torque while maintaining a compact motor assembly suitable for heavy-duty industrial installations.

Type: Multi-Vane Air Motor | Model: M007RHR063BR6 | Rotation: Non-Reversible | Gear Type: Planetary Gear | Power: 0.79 HP | Free Speed: 321 RPM | Starting Torque: 33.5 lb-ft | Stall Torque: 44.7 lb-ft

Features:

• Multi-vane air motor provides smooth and dependable rotary power using compressed air.
• Non-reversible configuration is designed for continuous operation in a single rotational direction.
• Planetary gear system delivers efficient torque multiplication while maintaining a compact motor profile.
• 0.79 HP output supports demanding industrial pneumatic drive applications.
• 321 RPM free speed is ideal for equipment requiring controlled, high-torque rotary motion.
• 33.5 lb-ft starting torque provides strong load-starting capability for demanding industrial applications.
• 44.7 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring dependable single-direction pneumatic rotary power.
• Industrial conveyors and material handling equipment.
• Mixing, processing, and batching systems.
• Packaging, indexing, and automated manufacturing machinery.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RHR063BR6 reversible?
  A: No. This model is manufactured as a non-reversible air motor intended for continuous operation in one rotational direction.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently transfers power while multiplying output torque, making the motor suitable for applications requiring substantial rotational force at lower operating speeds.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 321 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
