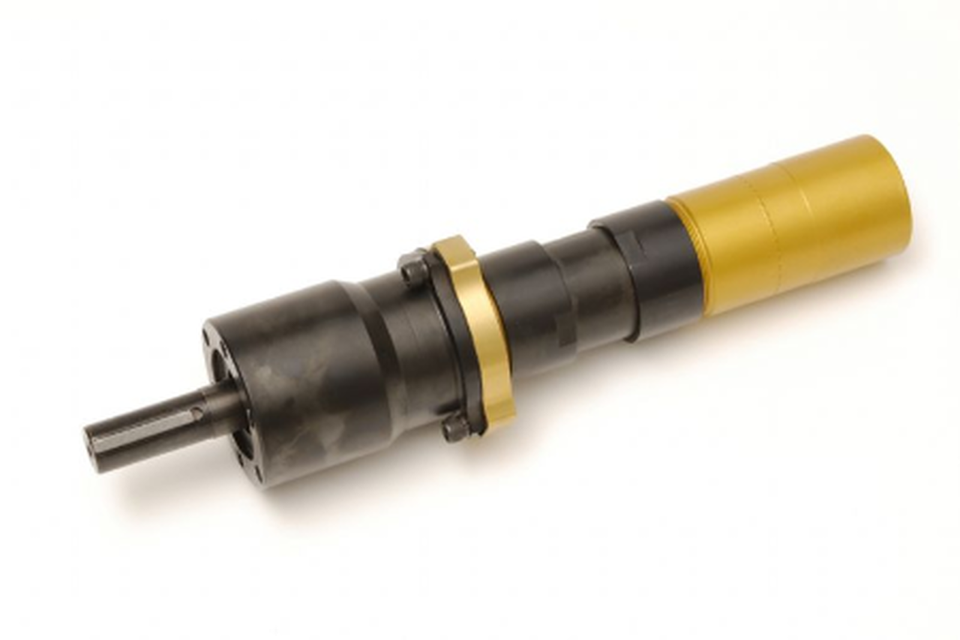

Ingersoll Rand M007RHR009AR4 Multi-Vane Non-Reversible Air Motor | Planetary Gear | 0.82 HP | 2,460 RPM | 4.76 (ft-lbs) Starting Torque | 6.34 (ft-lbs) Stall Torque

Ingersoll Rand M007RHR009AR4 Multi-Vane Non-Reversible Air Motor is designed to provide dependable pneumatic rotary power for industrial applications requiring higher output torque and controlled operating speeds. Featuring a multi-vane design with planetary gearing, this air motor delivers 0.82 HP and operates at a free speed of 2,460 RPM. Its non-reversible configuration is intended for continuous one-direction operation, making it an excellent choice for OEM machinery, industrial conveyors, processing equipment, mixers, material handling systems, and automated production machinery requiring reliable rotary motion.

The M007RHR009AR4 develops a 4.76 lb-ft starting torque, providing strong load-starting capability, and produces a 6.34 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear system efficiently multiplies torque while maintaining a compact, durable design for demanding industrial environments.

Type: Multi-Vane Air Motor | Model: M007RHR009AR4 | Rotation: Non-Reversible | Gear Type: Planetary Gear | Power: 0.82 HP | Free Speed: 2,460 RPM | Starting Torque: 4.76 lb-ft | Stall Torque: 6.34 lb-ft

Features:

• Multi-vane pneumatic motor provides smooth, reliable rotary power using compressed air.
• Non-reversible configuration is designed for continuous operation in a single rotational direction.
• Planetary gear system provides efficient torque multiplication in a compact package.
• 0.82 HP output supports demanding industrial pneumatic drive applications.
• 2,460 RPM free speed delivers an effective balance of rotational speed and output torque.
• 4.76 lb-ft starting torque provides dependable load-starting performance.
• 6.34 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capability.

Made in USA:

Applications:

• OEM machinery requiring dependable one-direction pneumatic rotary power.
• Industrial conveyors, feeders, and material handling systems.
• Mixing, agitation, and processing equipment.
• Automated manufacturing and production machinery.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RHR009AR4 reversible?
  A: No. This model is manufactured as a non-reversible air motor designed for continuous operation in one rotational direction.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently transmits power while increasing output torque in a compact motor assembly.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 2,460 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
