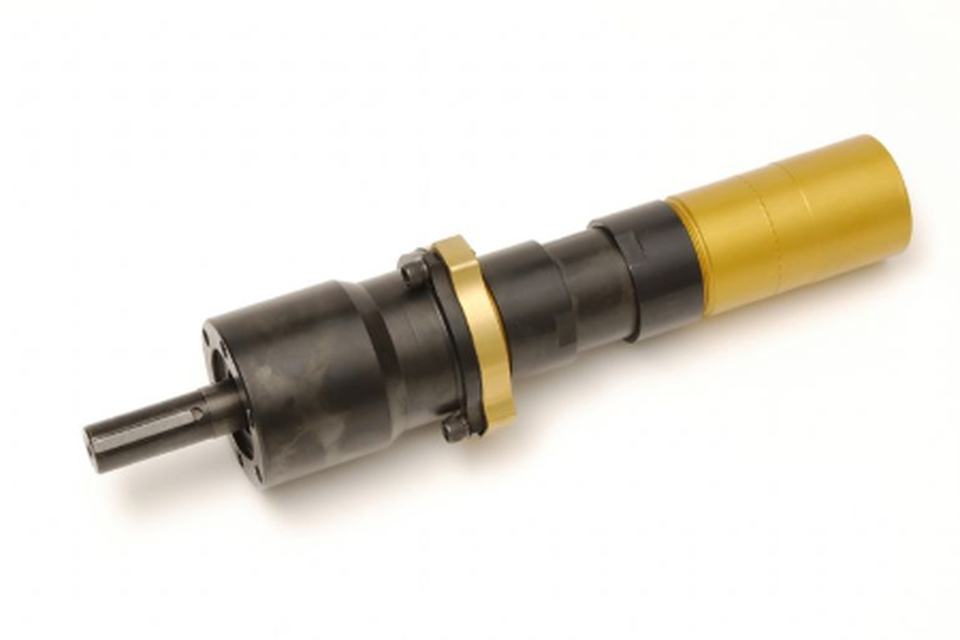

Ingersoll Rand M007RVR021AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.64 HP | 855 RPM | 9.2 (ft-lbs) Starting Torque | 12.2 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR021AR4 Multi-Vane Reversible Air Motor is designed to deliver dependable pneumatic rotary power for industrial equipment requiring bidirectional operation with higher torque at controlled operating speeds. Featuring a multi-vane design and planetary gearing, this air motor develops 0.64 HP while operating at a free speed of 855 RPM. Its reversible configuration enables both clockwise and counterclockwise shaft rotation, making it ideal for OEM machinery, automated production equipment, material handling systems, positioning devices, and industrial applications requiring reliable directional control.

The M007RVR021AR4 develops a 9.2 lb-ft starting torque, providing excellent load-starting capability for demanding industrial applications, and delivers a 12.2 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear arrangement efficiently multiplies output torque while maintaining a compact motor assembly suitable for installations where performance and mounting space are both important considerations.

Type: Multi-Vane Air Motor | Model: M007RVR021AR4 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.64 HP | Free Speed: 855 RPM | Starting Torque: 9.2 lb-ft | Stall Torque: 12.2 lb-ft

Features:

• Multi-vane air motor provides smooth and dependable rotary power using compressed air.
• Reversible configuration supports clockwise and counterclockwise shaft rotation for bidirectional applications.
• Planetary gear system efficiently multiplies output torque while maintaining a compact drive assembly.
• 0.64 HP output supports demanding industrial pneumatic drive applications.
• 855 RPM free speed provides controlled operation for applications requiring increased torque.
• 9.2 lb-ft starting torque delivers strong load-starting capability.
• 12.2 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated manufacturing and assembly equipment.
• Industrial positioning, indexing, and transfer mechanisms.
• Material handling and conveying systems.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RVR021AR4 reversible?
  A: Yes. This model is designed for clockwise and counterclockwise operation to support applications requiring bidirectional rotation.
• Q: Why is a planetary gear system used in this motor?
  A: The planetary gear arrangement efficiently increases output torque while maintaining a compact overall motor size suitable for industrial equipment.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 855 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced if the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
