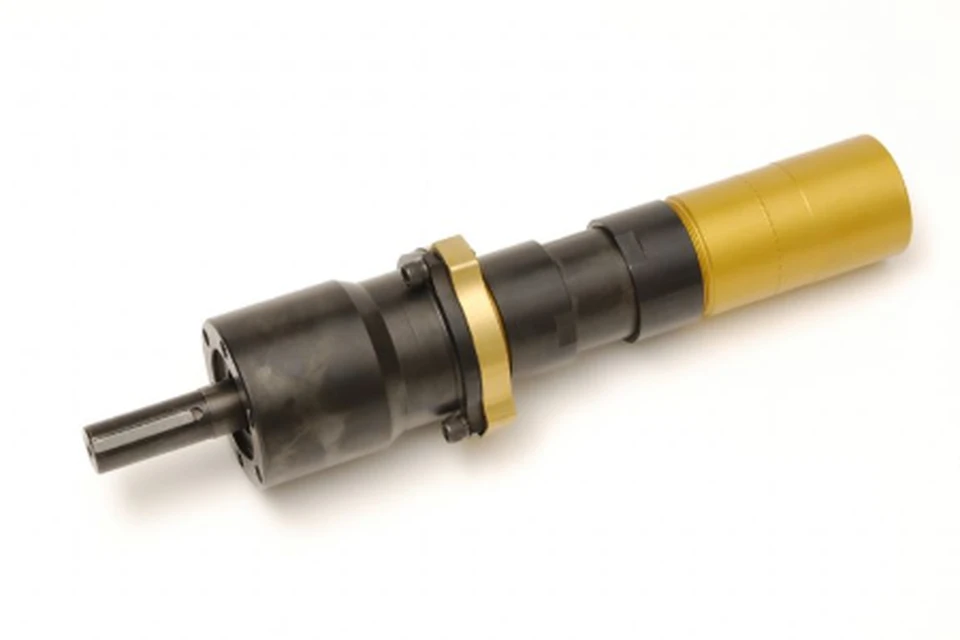

Ingersoll Rand M007RVR004AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.67 HP | 4,450 RPM | 1.94 (ft-lbs) Starting Torque | 2.59 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR004AR4 Multi-Vane Reversible Air Motor is designed to provide reliable pneumatic rotary power for industrial equipment requiring bidirectional operation with a balanced combination of speed and torque. Built with a multi-vane design and planetary gearing, this air motor delivers 0.67 HP while operating at a free speed of 4,450 RPM. Its reversible configuration allows both clockwise and counterclockwise shaft rotation, making it well suited for OEM machinery, automated production equipment, positioning systems, conveyors, and industrial mechanisms that require controlled directional changes.

The M007RVR004AR4 develops a 1.94 lb-ft starting torque, providing dependable load-starting capability, and delivers a 2.59 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear arrangement efficiently transmits power while increasing torque output in a compact motor assembly suitable for industrial applications.

Type: Multi-Vane Air Motor | Model: M007RVR004AR4 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.67 HP | Free Speed: 4,450 RPM | Starting Torque: 1.94 lb-ft | Stall Torque: 2.59 lb-ft

Features:

• Multi-vane air motor delivers smooth, dependable rotary power using compressed air.
• Reversible configuration enables clockwise and counterclockwise operation for applications requiring bidirectional movement.
• Planetary gear system efficiently multiplies torque while maintaining a compact motor design.
• 0.67 HP output supports industrial pneumatic drive applications requiring reliable performance.
• 4,450 RPM free speed provides a balance of operating speed and torque for versatile equipment applications.
• 1.94 lb-ft starting torque provides dependable load-starting capability.
• 2.59 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated manufacturing and assembly equipment.
• Positioning, indexing, and transfer mechanisms.
• Industrial conveying and material handling systems.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RVR004AR4 reversible?
  A: Yes. This model is designed to operate in both clockwise and counterclockwise directions.
• Q: What is the purpose of the planetary gear system?
  A: The planetary gear arrangement efficiently transfers power while increasing output torque in a compact motor package suitable for industrial machinery.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 4,450 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available as the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
