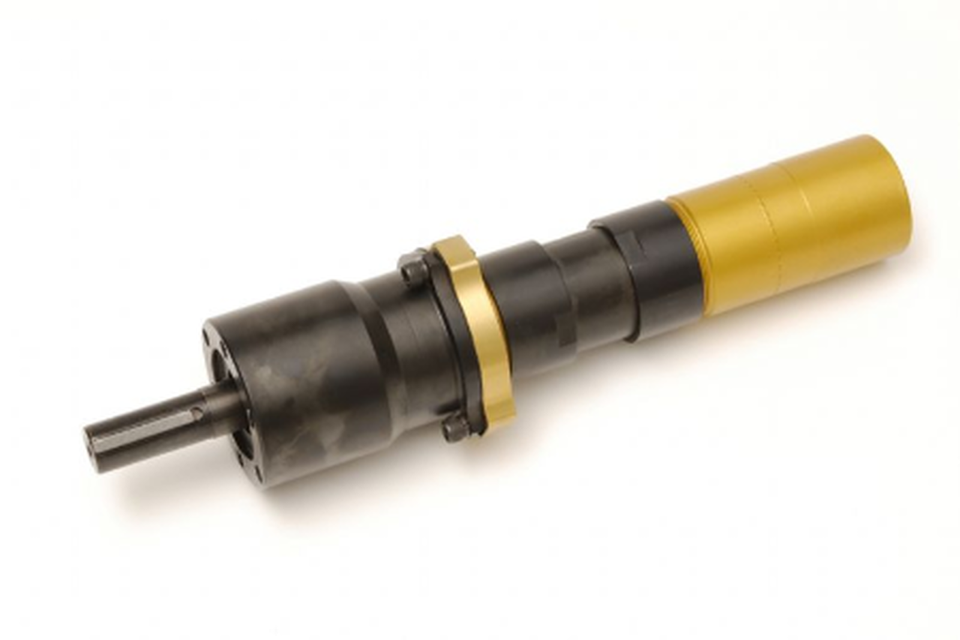

Ingersoll Rand M007RVR009AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.67 HP | 2,240 RPM | 3.86 (ft-lbs) Starting Torque | 5.14 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR009AR4 Multi-Vane Reversible Air Motor is designed to provide dependable pneumatic rotary power for industrial equipment requiring bidirectional operation with an effective balance of speed and torque. Built with a multi-vane design and planetary gearing, this air motor delivers 0.67 HP while operating at a free speed of 2,240 RPM. Its reversible configuration enables clockwise and counterclockwise shaft rotation, making it well suited for OEM machinery, automated production systems, positioning devices, conveyors, and industrial equipment that requires reliable directional changes.

The M007RVR009AR4 develops a 3.86 lb-ft starting torque, providing strong load-starting performance for demanding applications, and delivers a 5.14 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear arrangement efficiently multiplies torque while maintaining a compact motor package for industrial installations where both performance and space efficiency are important.

Type: Multi-Vane Air Motor | Model: M007RVR009AR4 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.67 HP | Free Speed: 2,240 RPM | Starting Torque: 3.86 lb-ft | Stall Torque: 5.14 lb-ft

Features:

• Multi-vane air motor delivers smooth and dependable rotary power using compressed air.
• Reversible configuration supports clockwise and counterclockwise shaft rotation for bidirectional applications.
• Planetary gear system efficiently multiplies output torque while maintaining a compact motor design.
• 0.67 HP output supports industrial pneumatic drive applications requiring reliable performance.
• 2,240 RPM free speed provides an effective balance of operating speed and torque.
• 3.86 lb-ft starting torque provides dependable load-starting capability.
• 5.14 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capability.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated manufacturing and assembly equipment.
• Positioning, indexing, and transfer mechanisms.
• Industrial conveying and material handling systems.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RVR009AR4 reversible?
  A: Yes. This model is designed to operate in both clockwise and counterclockwise directions.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently transfers power while increasing output torque in a compact motor assembly suitable for industrial machinery.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 2,240 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
