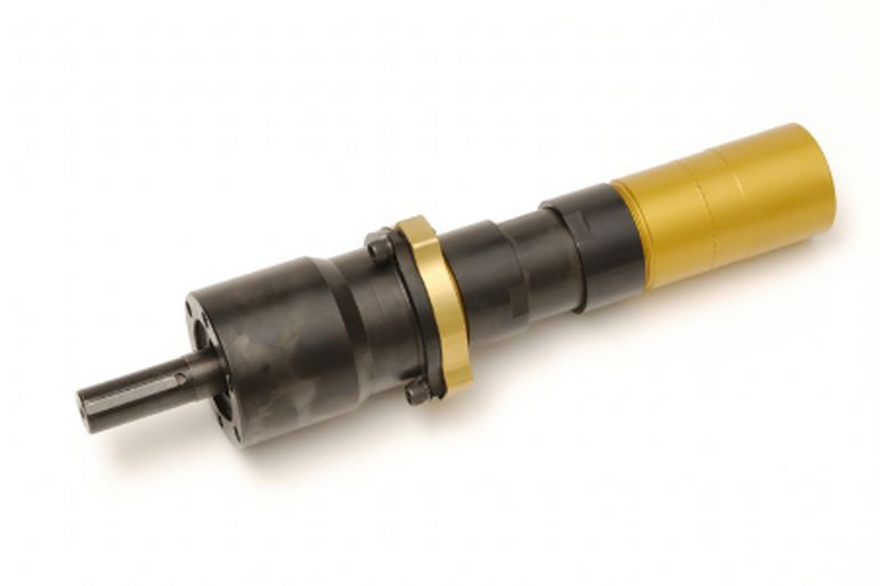

Ingersoll Rand M007RVR000AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.70 HP | 20,000 RPM | 0.47 (ft-lbs) Starting Torque | 0.63 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR000AR4 Multi-Vane Reversible Air Motor is designed for industrial equipment requiring high-speed pneumatic rotary power with the flexibility to operate in either direction. Built with a multi-vane configuration and planetary gearing, this model delivers 0.70 HP at a free speed of 20,000 RPM. Its reversible operation makes it suitable for compatible OEM machinery, automated systems, and mechanisms that require controlled clockwise and counterclockwise rotation.

The M007RVR000AR4 provides 0.47 lb-ft starting torque, which is the torque available as the motor begins moving the connected load. Its 0.63 lb-ft stall torque represents the torque developed when the applied load prevents the output from rotating. These ratings should be evaluated together with the required speed, direction, mounting arrangement, and compressed-air requirements of the intended equipment.

Type: Multi-Vane Air Motor | Model: M007RVR000AR4 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.70 HP | Free Speed: 20,000 RPM | Starting Torque: 0.47 lb-ft | Stall Torque: 0.63 lb-ft

Features:

• Multi-vane pneumatic design converts compressed-air energy into rotary output for compatible machinery.
• Reversible configuration supports clockwise and counterclockwise operation where bidirectional motion is required.
• Planetary gearing provides compact power transmission within the motor assembly.
• 0.70 HP rating provides a defined power reference for application matching.
• 20,000 RPM free speed supports compatible high-speed pneumatic drive requirements.
• 0.47 lb-ft starting torque helps evaluate the motor’s ability to initiate movement of the connected load.
• 0.63 lb-ft stall torque identifies the torque condition reached when the output is prevented from rotating.

Made in USA:

Applications:

• OEM machinery requiring high-speed reversible pneumatic rotary power.
• Automated equipment that alternates between forward and reverse rotation.
• Positioning and indexing mechanisms compatible with the stated speed and torque ratings.
• Compressed-air-powered assemblies requiring bidirectional motor operation.
• Replacement installations where the M007RVR000AR4 specifications and mechanical interfaces match the existing motor.

FAQs:

• Q: Is the Ingersoll Rand M007RVR000AR4 reversible?
  A: Yes. This model is specified as a reversible air motor for applications requiring operation in either rotational direction.
• Q: What is the rated free speed of this motor?
  A: The manufacturer specifies a free speed of 20,000 RPM.
• Q: What does the 0.47 lb-ft starting torque rating mean?
  A: Starting torque is the torque available as the motor begins rotating the connected load.
• Q: Is 0.63 lb-ft the normal continuous operating torque?
  A: No. The 0.63 lb-ft value is stall torque, which occurs when the applied load prevents the output from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation requirements, gear configuration, shaft dimensions, mounting arrangement, and compressed-air specifications using the Ingersoll Rand Air Motor Catalog.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
