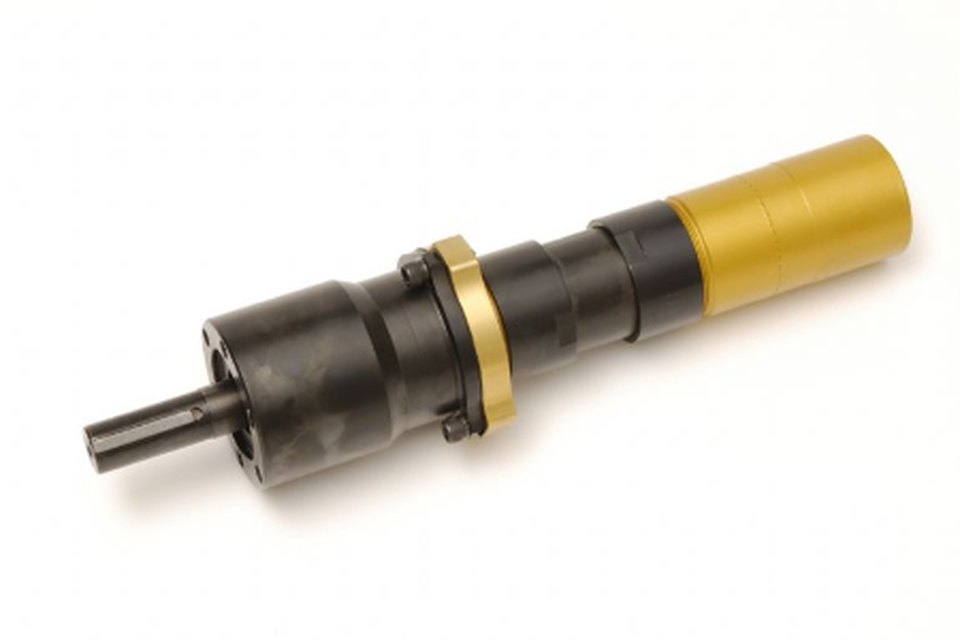

Ingersoll Rand M007RVR006AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.67 HP | 3,045 RPM | 2.84 (ft-lbs) Starting Torque | 3.78 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR006AR4 Multi-Vane Reversible Air Motor is designed to deliver dependable pneumatic power for industrial equipment requiring bidirectional operation with increased output torque and controlled operating speed. Featuring a multi-vane design and planetary gear drive, this air motor produces 0.67 HP while operating at a free speed of 3,045 RPM. Its reversible configuration allows both clockwise and counterclockwise rotation, making it suitable for OEM machinery, automated production systems, positioning equipment, conveyors, and industrial applications that require reliable directional changes.

The M007RVR006AR4 develops a 2.84 lb-ft starting torque, providing strong load-starting capability for demanding applications, and delivers a 3.78 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear arrangement efficiently increases output torque while maintaining a compact motor package suitable for space-constrained industrial installations.

Type: Multi-Vane Air Motor | Model: M007RVR006AR4 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.67 HP | Free Speed: 3,045 RPM | Starting Torque: 2.84 lb-ft | Stall Torque: 3.78 lb-ft

Features:

• Multi-vane air motor delivers smooth and dependable rotary power using compressed air.
• Reversible configuration supports clockwise and counterclockwise shaft rotation for bidirectional applications.
• Planetary gear system efficiently multiplies output torque while maintaining a compact overall design.
• 0.67 HP output supports demanding industrial pneumatic drive applications.
• 3,045 RPM free speed provides a balance of rotational speed and increased torque for versatile equipment.
• 2.84 lb-ft starting torque provides dependable load-starting performance.
• 3.78 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capability.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated manufacturing and assembly equipment.
• Positioning, indexing, and transfer mechanisms.
• Industrial conveying and material handling systems.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RVR006AR4 reversible?
  A: Yes. This model is designed to operate in both clockwise and counterclockwise directions.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently transfers power while increasing output torque in a compact motor assembly suitable for industrial equipment.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 3,045 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
