Ingersoll Rand M007RVR037AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.64 HP | 495 RPM | 15.8 (ft-lbs) Starting Torque | 21.1 (ft-lbs) Stall Torque

Ingersoll Rand M007RVR037AR4 Multi-Vane Reversible Air Motor is engineered to provide dependable pneumatic rotary power for industrial equipment requiring bidirectional operation with increased torque and reduced operating speeds. Featuring a multi-vane design and planetary gearing, this air motor delivers 0.64 HP while operating at a free speed of 495 RPM. Its reversible configuration allows both clockwise and counterclockwise shaft rotation, making it an excellent choice for OEM machinery, automated manufacturing equipment, positioning systems, process machinery, conveyors, and industrial applications that require reliable directional control.

The M007RVR037AR4 develops a 15.8 lb-ft starting torque, providing excellent load-starting capability for demanding applications, and delivers a 21.1 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear arrangement efficiently multiplies output torque while maintaining a compact motor assembly suitable for installations where high torque and limited mounting space are important considerations.

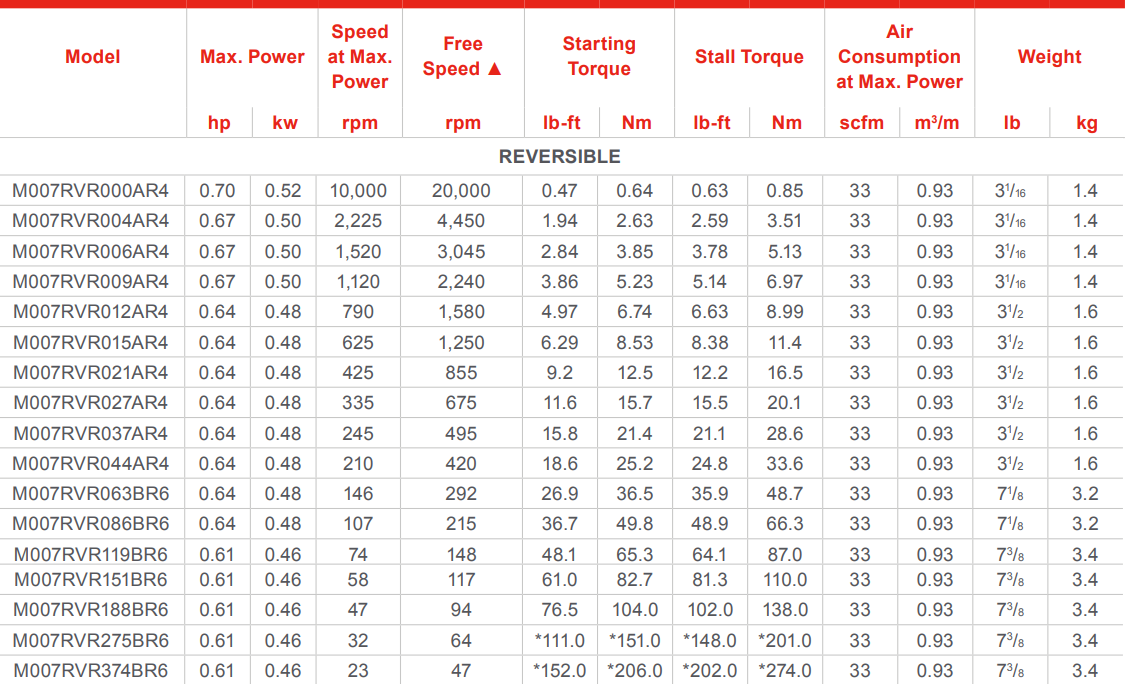

Type: Multi-Vane Air Motor | Model: M007RVR037AR4 | Rotation: Reversible | Gear Type: Planetary Gear | Power: 0.64 HP | Free Speed: 495 RPM | Starting Torque: 15.8 lb-ft | Stall Torque: 21.1 lb-ft

Features:

• Multi-vane air motor delivers smooth and dependable rotary power using compressed air.
• Reversible configuration supports clockwise and counterclockwise shaft rotation for bidirectional applications.
• Planetary gear system efficiently multiplies output torque while maintaining a compact drive assembly.
• 0.64 HP output supports demanding industrial pneumatic drive applications.
• 495 RPM free speed provides controlled operation for applications requiring higher torque at lower speeds.
• 15.8 lb-ft starting torque provides strong load-starting capability for demanding industrial equipment.
• 21.1 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Automated manufacturing and assembly equipment.
• Industrial positioning, indexing, and transfer mechanisms.
• Material handling and conveying systems.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RVR037AR4 reversible?
  A: Yes. This model is designed for clockwise and counterclockwise operation to support applications requiring bidirectional rotation.
• Q: What is the advantage of the planetary gear system?
  A: The planetary gear arrangement efficiently transfers power while increasing output torque in a compact motor package, making it suitable for industrial equipment requiring higher torque at lower speeds.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 495 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
