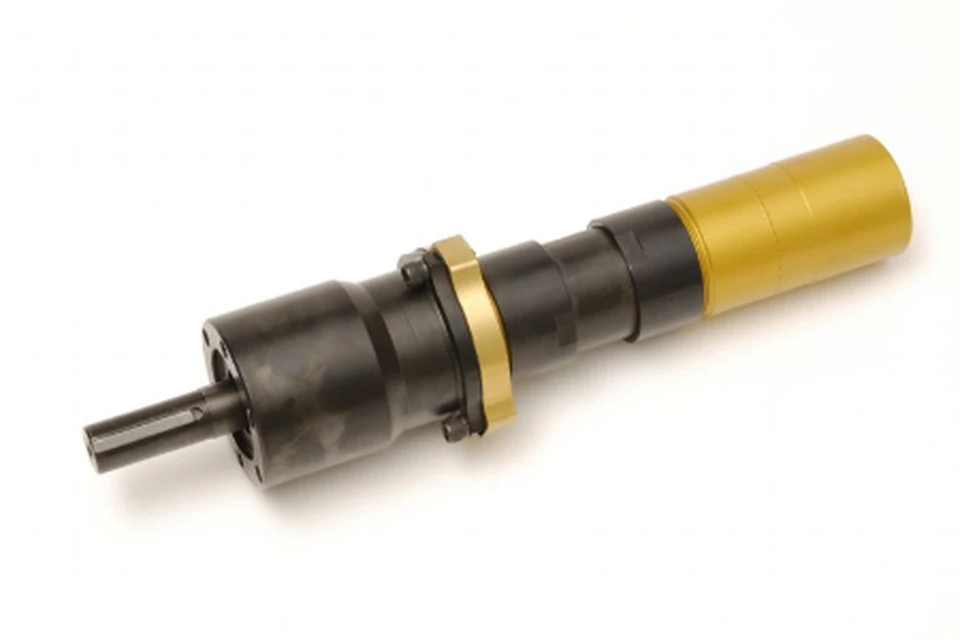

Ingersoll Rand M007RHR275BR6 Multi-Vane Non-Reversible Air Motor | Planetary Gear | 0.76 HP | 70 RPM | 140 (ft-lbs) Starting Torque | 187 (ft-lbs) Stall Torque

Ingersoll Rand M007RHR275BR6 Multi-Vane Non-Reversible Air Motor is engineered to deliver exceptionally high pneumatic torque for industrial applications requiring extremely low operating speeds and dependable single-direction rotary power. Built with a multi-vane design and planetary gearing, this air motor produces 0.76 HP and operates at a free speed of 70 RPM. Its non-reversible configuration is designed for continuous one-direction operation, making it ideal for OEM machinery, heavy-duty indexing systems, material handling equipment, process machinery, positioning systems, and automated production equipment where maximum rotary force is essential.

The M007RHR275BR6 develops an impressive 140 lb-ft starting torque, providing outstanding load-starting capability for demanding applications, and delivers a 187 lb-ft stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. The planetary gear system efficiently multiplies torque while maintaining a compact motor assembly, making this model well suited for installations requiring substantial output torque within limited mounting space.

Type: Multi-Vane Air Motor | Model: M007RHR275BR6 | Rotation: Non-Reversible | Gear Type: Planetary Gear | Power: 0.76 HP | Free Speed: 70 RPM | Starting Torque: 140 lb-ft | Stall Torque: 187 lb-ft

Features:

• Multi-vane air motor delivers smooth and dependable rotary power using compressed air.
• Non-reversible configuration is designed for continuous operation in one rotational direction.
• Planetary gear system efficiently multiplies output torque while maintaining a compact motor profile.
• 0.76 HP output supports demanding industrial pneumatic drive applications.
• 70 RPM free speed is ideal for applications requiring controlled, high-torque rotary motion.
• 140 lb-ft starting torque provides exceptional load-starting capability for heavy-duty industrial equipment.
• 187 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capacity.

Made in USA:

Applications:

• OEM machinery requiring dependable single-direction pneumatic rotary power.
• Heavy-duty conveyors and material handling systems.
• Industrial processing, batching, and mixing equipment.
• Indexing, positioning, and automated manufacturing machinery.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand M007RHR275BR6 reversible?
  A: No. This model is manufactured as a non-reversible air motor intended for continuous operation in one rotational direction.
• Q: What is the benefit of the planetary gear system?
  A: The planetary gear arrangement efficiently multiplies output torque while maintaining a compact motor design, making it suitable for demanding low-speed industrial applications requiring substantial rotary force.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 70 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
