Coxreels 1125-4-200 Hand Crank Hose Reel | 1125 Series | 1/2" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

For longer hose runs where powered rewind is not required, the Coxreels 1125-4-200 Hand Crank Hose Reel provides manual hose storage in the 1125 Series platform. This less-hose reel is sized for 1/2" I.D. hose with a 200 ft hose capacity and a 3,000 PSI maximum pressure rating, making it a practical reel-only choice for air, water, oil, pressure wash, spray, chemical transfer, and compatible medium-pressure fluid handling applications where hose selection needs to be handled separately.

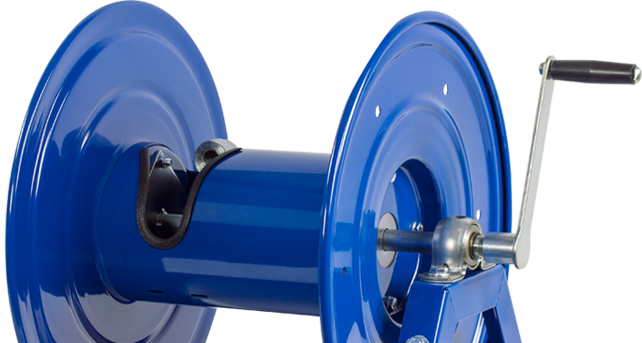

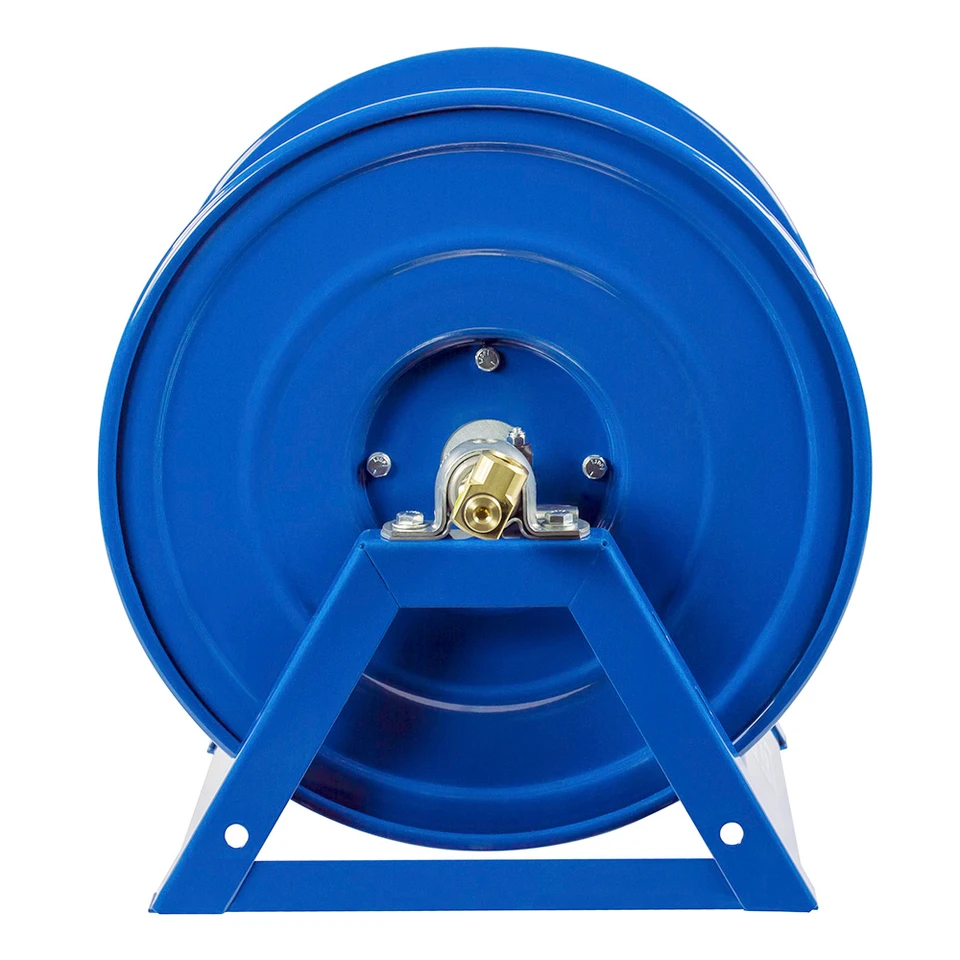

The 1125-4-200 uses a hand crank rewind, meaning the operator manually retrieves the hose using the crank handle instead of a spring or motor. The 1125 Series design features a one-piece all-welded steel A frame base, low-profile outlet riser, open drum slot for a flatter hose wrap, permanently lubricated self-aligning pillow block bearings, an adjustable tension brake to help reduce freewheeling, and a front bevel geared crank for easier mechanical retraction. Its 12" drum width supports longer 1/2" hose storage while keeping the reel suitable for fixed shop, truck, washdown, service, and maintenance installations.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Hose Reel | Series: 1125 Series | SKU: 1125-4-200 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Drum Width: 12" | Rewind Type: Hand Crank | Ship Weight: 39 lb | Overall Dimensions: 25.5" W x 18.75" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 15.38" Y

Features:

• Less-hose configuration allows the buyer to install hose selected for the application, pressure requirement, chemical compatibility, temperature range, and fitting style.
• Manual hand crank rewind gives operators direct control over hose retrieval without relying on spring rewind or electric, air, or hydraulic rewind power.
• One-piece all-welded steel A frame base provides a rigid mounting structure for longer hose storage.
• Low-profile outlet riser and open drum slot help guide hose onto the reel in a flatter, smoother wrap.
• Permanently lubricated self-aligning pillow block bearings support smooth reel rotation during hose payout and rewind.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Adjustable tension brake helps reduce freewheeling when pulling hose from the reel.
• CPC powder coat finish, rolled ribbed discs, and CNC spun reel discs support routine use in shop, truck, washdown, and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Pressure wash and washdown setups where the installed 1/2" hose, fittings, and operating pressure match the 3,000 PSI reel rating.
• Service trucks, maintenance trailers, and mobile equipment where manual rewind provides simple hose retrieval without requiring powered rewind components.
• Air, water, oil, spray, and compatible fluid transfer stations where a 200 ft hose capacity provides extended reach from a fixed reel location.
• Fleet, facility, and industrial MRO areas where a reel-only purchase supports custom hose installation or standardized hose inventory.
• Wall, floor, bench, skid, vehicle, or equipment-mounted installations where a sturdy hand crank reel is preferred for longer hose lengths.

FAQs:

• Q: Does the Coxreels 1125-4-200 include hose?
  A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed.
• Q: What hose size is this reel designed to hold?
  A: The 1125-4-200 is sized for up to 200 ft of 1/2" I.D. hose with a 7/8" hose O.D. Using hose with a different outside diameter may change the usable hose capacity.
• Q: What does the 1125 Series design offer compared with smaller hand crank reels?
  A: The 1125 Series uses a larger welded A frame structure, low-profile outlet riser, open drum slot, pillow block bearings, and wide drum options for longer hose capacities.
• Q: How is the 1125-4-200 different from the 1125-4-100?
  A: The 1125-4-200 is sized for 200 ft of 1/2" hose, while the 1125-4-100 is sized for 100 ft. Choose the 200 ft model when the application requires twice the hose reach in the same hose diameter.
• Q: Can this reel be used for pressure washing?
  A: Yes, when the installed hose, fittings, temperature range, chemical exposure, and system pressure match the reel's 3,000 PSI rating and the pressure washer's requirements.
