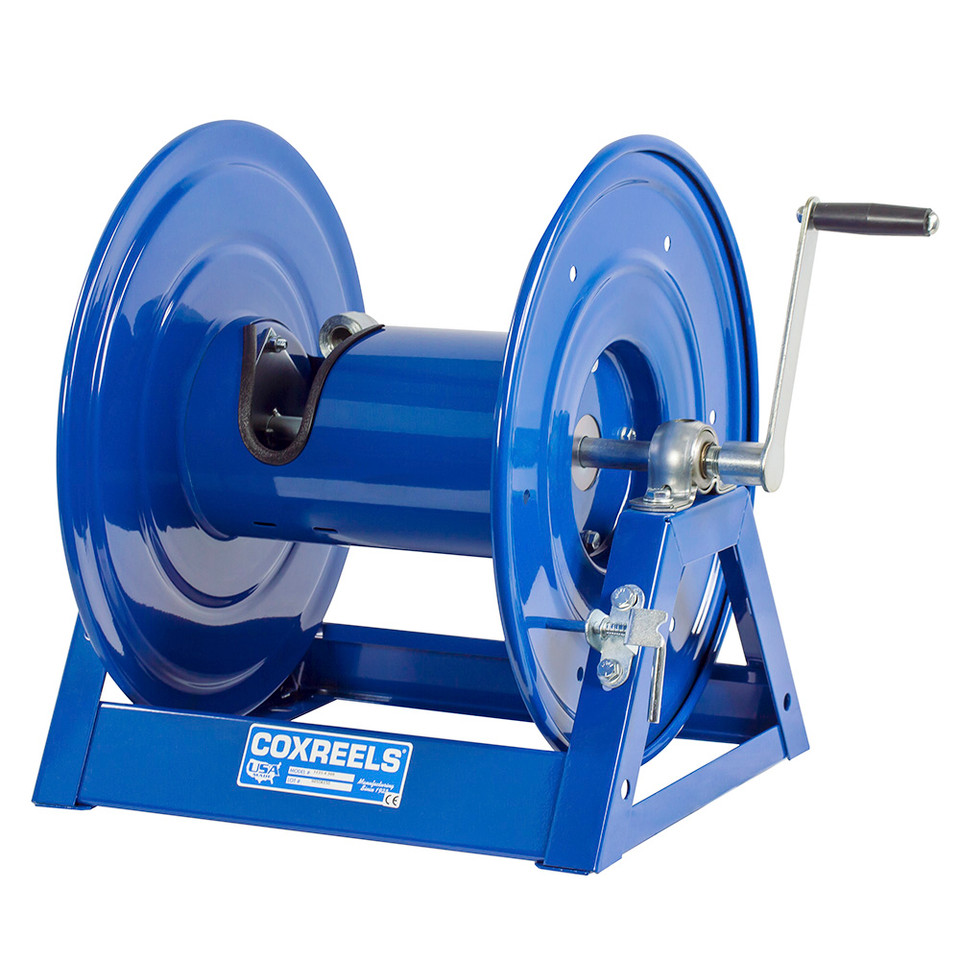

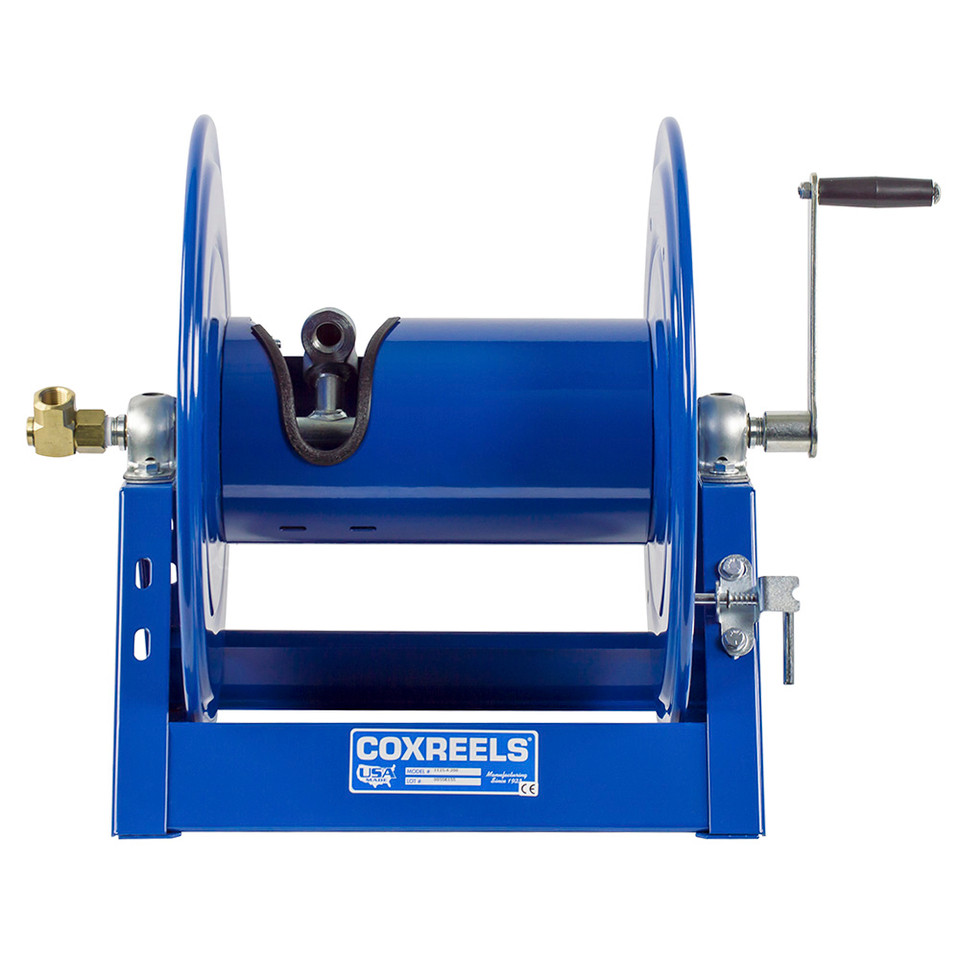

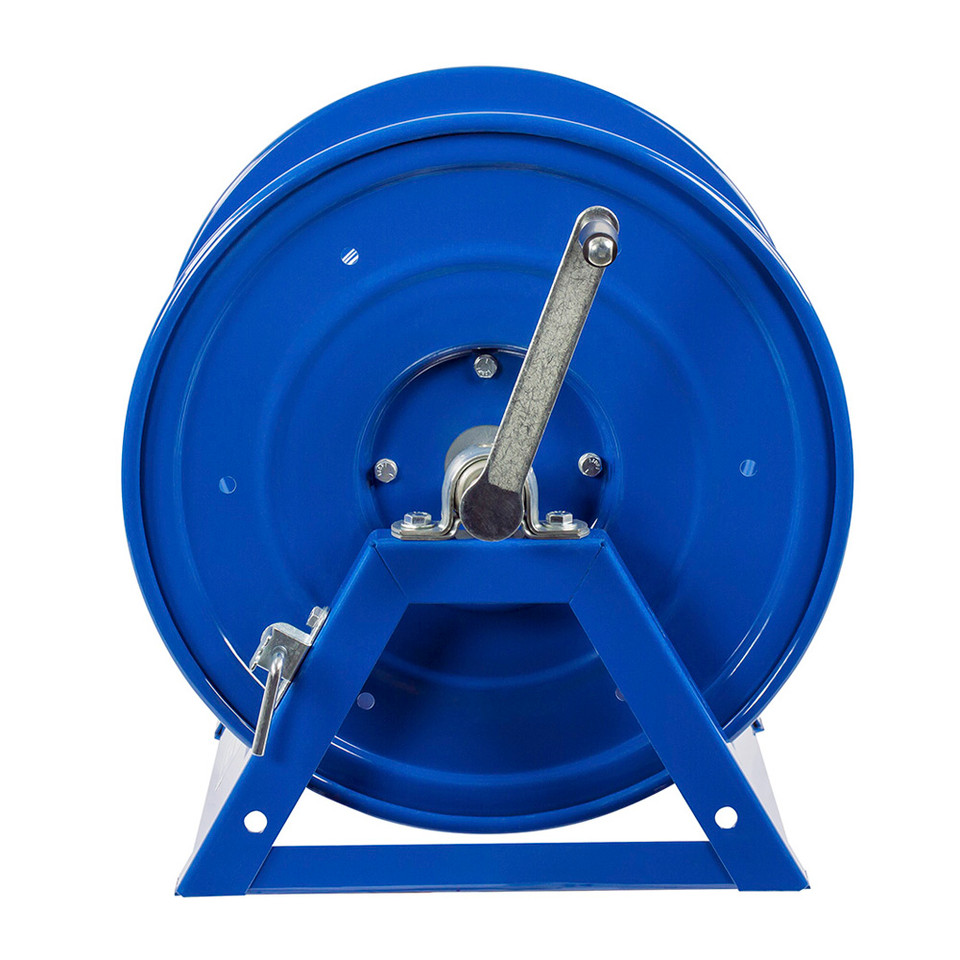

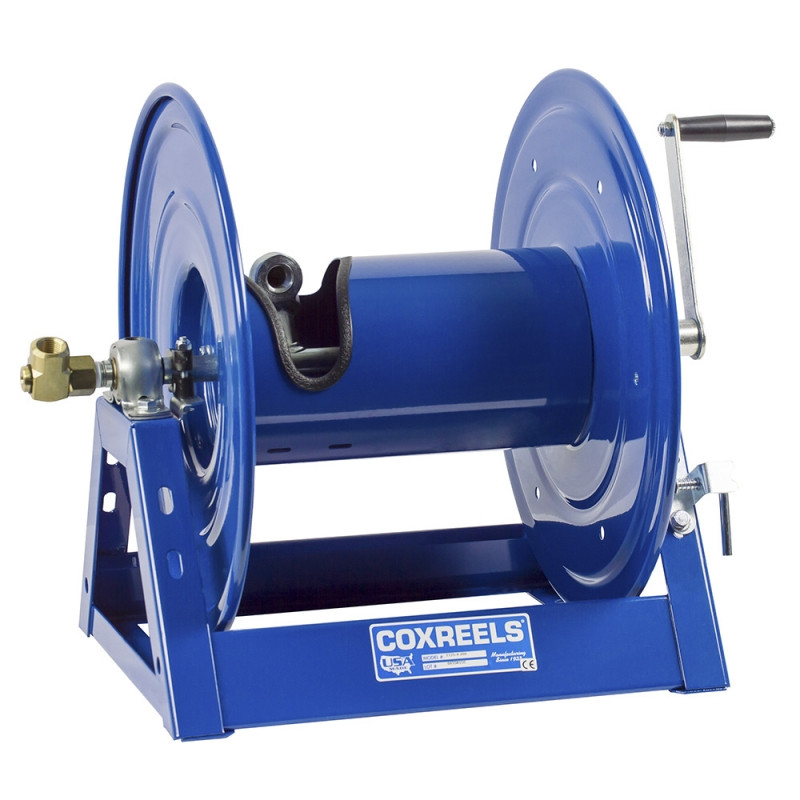

For work sites and maintenance areas that need controlled hose retrieval without electrical or pneumatic power, the Coxreels 1125-4-200-C Hand Crank Hose Reel stores up to 200 feet of 1/2-inch I.D. hose. The front-mounted bevel geared crank changes the direction of the hand-crank drive, providing a practical operating position for vehicle compartments, equipment skids, and fixed installations where side-crank access may be restricted. Its 3,000 PSI maximum working pressure supports compatible air, water, oil, lubrication, and hydraulic fluid applications when the separately installed hose and fittings meet the required ratings.
Part of the 1125 Series, this reel uses a one-piece welded steel A-frame to support the drum during repeated payout and retrieval. A low-profile outlet riser and open drum slot promote a flat, non-crimping hose wrap, while permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly. An adjustable tension brake limits unwanted free-wheeling, and a long-handled locking pin secures the reel during transportation or storage.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1125 Series | Model: 1125-4-200-C | Configuration: Less Hose | Rewind Method: Front-Mounted Bevel Geared Hand Crank | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Swivel Inlet and Outlet: 1/2" Female NPT | Drum Width: 12" | Overall Dimensions: 25.5" W x 18.75" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base Dimensions: 17.38" X x 15.38" Y
Features:
- Front-mounted bevel geared hand crank provides controlled manual rewind from a convenient operating position.
- One-piece, all-welded steel A-frame construction creates a rigid mounting platform for mobile and stationary installations.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports efficient fluid transfer.
- Low-profile outlet riser and open drum slot promote a flat, smooth hose wrap without sharp crimping near the connection.
- Permanently lubricated self-aligning pillow block bearings and an adjustable tension brake support smooth, controlled drum rotation.
- Long-handled locking pin, rolled disc edges, and CPC powder-coated finish support secure storage and protect the steel reel structure.
Made in USA:
Applications:
- Industrial plant and grounds maintenance using long air, water, oil, or compatible fluid hose.
- Service vehicles and equipment compartments where front-crank access is more practical than a side-mounted handle.
- Agricultural spraying, farming, and landscape maintenance requiring extended hose reach.
- Washdown, pressure-washing, and high-flow watering systems within the reel's pressure and media limits.
- Construction sites and mobile equipment installations without a dedicated rewind power source.
FAQs:
- Q: Does the Coxreels 1125-4-200-C include hose?
A: No. This model is supplied without hose. Install a compatible 1/2-inch I.D. hose with an outside diameter no greater than 7/8 inch and suitable pressure, temperature, and fluid ratings. - Q: What does the 'C' suffix mean?
A: The C suffix identifies the front-mounted bevel geared hand-crank option. The bevel gears redirect the crank drive so the handle can be operated from the front of the reel. - Q: How is this model different from the standard 1125-4-200?
A: Both models provide the same 200-foot capacity for 1/2-inch hose. The 1125-4-200-C adds the front bevel geared crank configuration for installations where its handle position provides better access. - Q: Can this reel be used at the full 3,000 PSI rating?
A: Yes, provided the installed hose, fittings, and every component in the fluid path are rated for the intended pressure. The completed assembly is limited by its lowest-rated component.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 1125 Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 7/8
- Hose Length (ft.)
- 200
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Drum Width (in.)
- 12
- Width (in.)
- 25.5
- Height (in.)
- 18.75
- Length (in.)
- 17.63
- Mounting Pattern (in.)
- 15.44M
- Mounting Pattern (in.)
- 10N
- Base (in.)
- 17.38X
- Base (in.)
- 15.38Y
