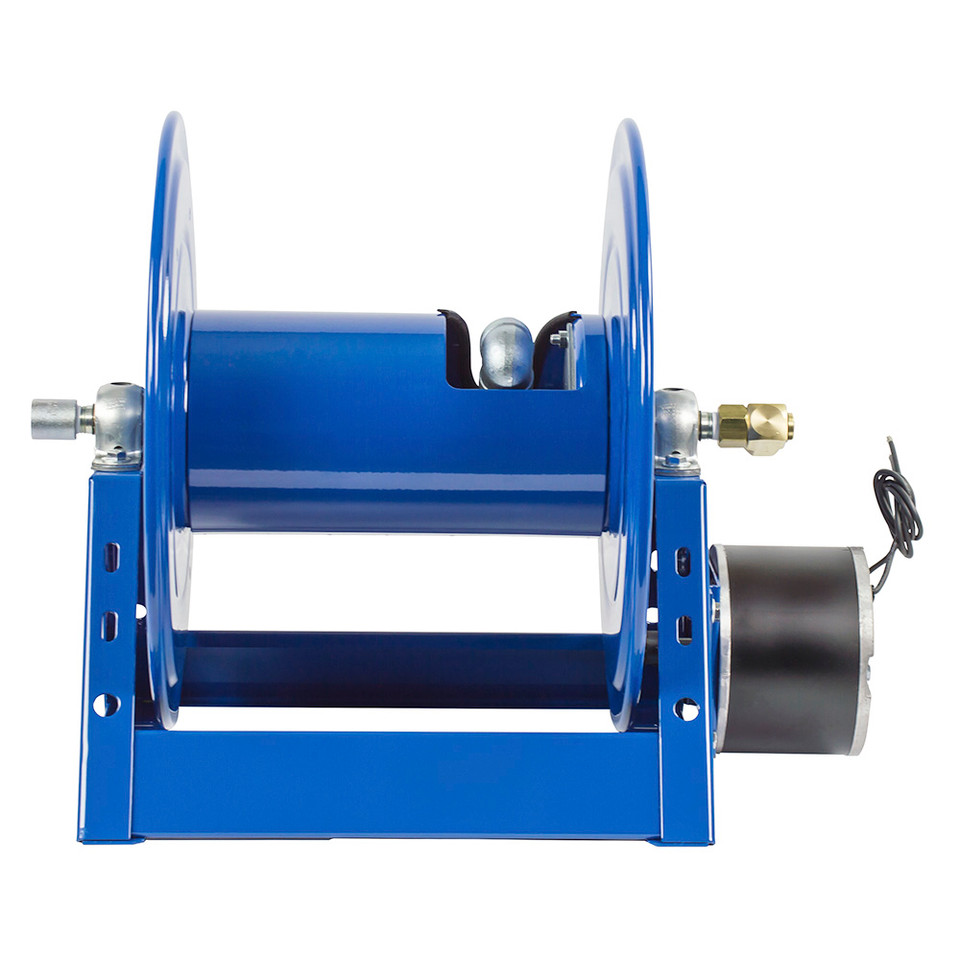

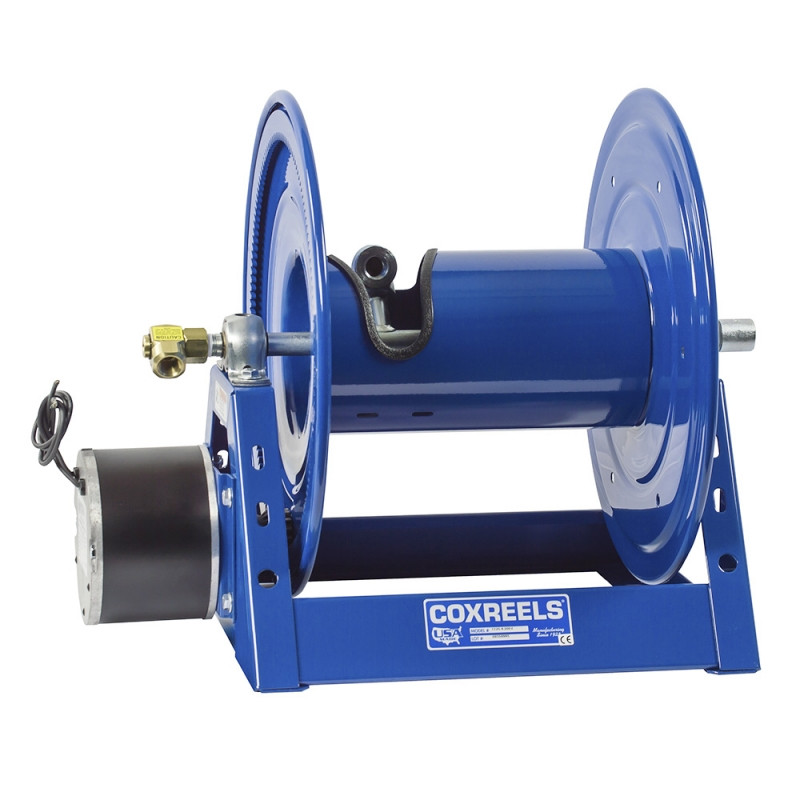

Coxreels 1125-4-200-EB electric 24V DC 1/2 HP motor rewind hose reel provides automated hose management for up to 200' of 1/2" hose in industrial and workshop environments. Its 24V DC 1/2 HP motor delivers smooth, reliable hose retraction, minimizing manual effort and extending hose life. Rated for 3,000 PSI, the 1125 Series supports air, water, and oil service, making it suitable for maintenance, chemical, and heavy-duty industrial applications.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 24V DC 1/2 HP Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 24V DC
Features:
- 24V DC 1/2 HP motor provides smooth, automated hose rewind for minimal manual effort
- Durable steel construction resists wear and industrial impact
- Swivel mounting allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design conserves workspace while accommodating full hose length
- Mounting hardware included for secure installation
Made in USA:
Applications:
- Industrial maintenance and workshop environments requiring automated hose management
- Chemical service areas needing reliable DC-powered rewind
- Fleet service and tool stations requiring long 200' hose deployment
- Air, water, or oil transfer applications in heavy-duty industrial settings
FAQs:
- Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: How is the hose rewind powered?
A: The 24V DC motor provides controlled automated retraction. - Q: Can it handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1/2" hose diameter. - Q: Can it be mounted in different orientations?
A: Yes, the swivel mount allows wall, ceiling, or bench installation. - Q: Is outdoor use recommended?
A: The reel is designed primarily for indoor industrial use; protection is advised if used outdoors.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motorized Hose Reel
- Series
- 1125 Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 7/8
- Hose Length (ft.)
- 200
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
