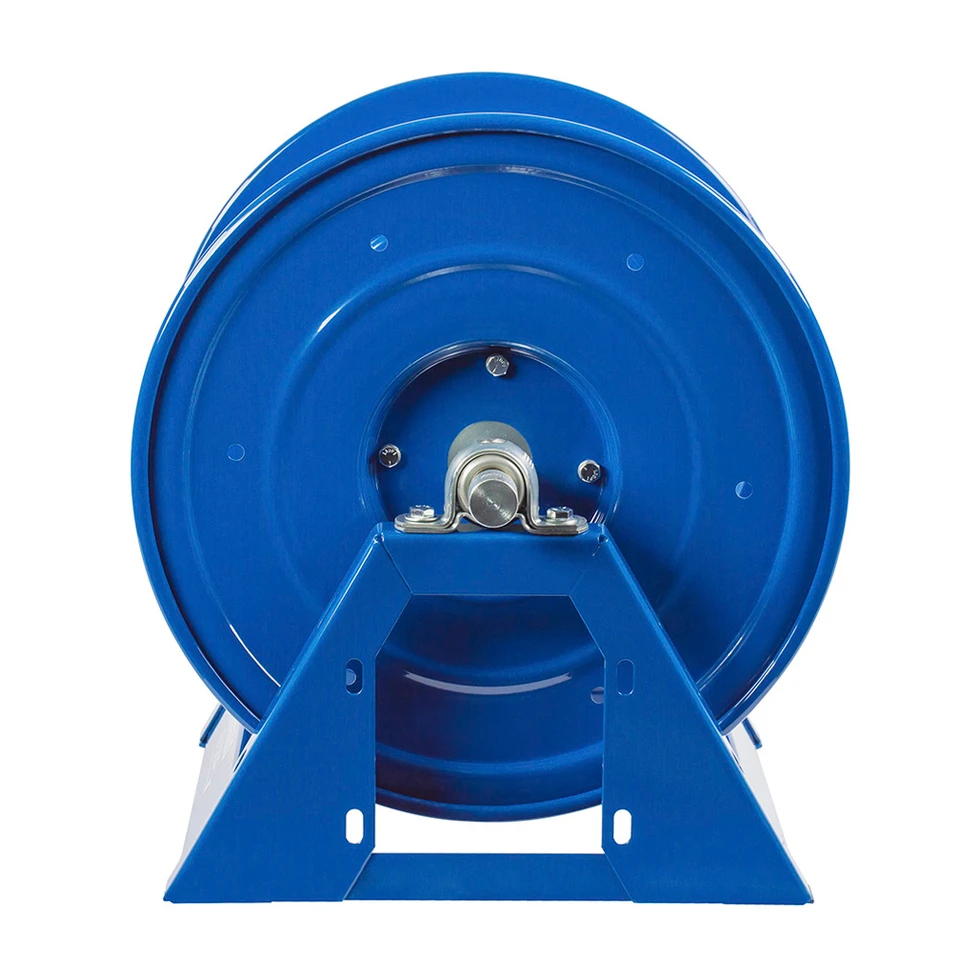

Coxreels 1125-4-200-EF electric 24V DC 1/3 HP motor rewind hose reel offers automated hose management for up to 200' of 1/2" hose. Its 24V DC 1/3 HP motor provides smooth and reliable hose retraction, reducing manual effort and extending hose life. Rated for 3,000 PSI, the 1125 Series supports air, water, and oil service, making it suitable for maintenance, chemical, and industrial applications requiring efficient hose handling over long distances.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 24V DC 1/3 HP Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 24V DC
Features:
- 24V DC 1/3 HP motor provides automated hose rewind with minimal manual effort
- Durable steel construction resists industrial wear and impact
- Swivel mounting allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design preserves workspace while accommodating full hose length
- Mounting hardware included for secure installation
Made in USA:
Applications:
- Industrial maintenance and workshop environments requiring automated hose management
- Chemical service areas needing reliable DC-powered rewind
- Fleet service and tool stations requiring long 200' hose deployment
- Air, water, or oil transfer applications in heavy-duty industrial settings
FAQs:
- Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: How is the hose rewind powered?
A: The 24V DC motor provides controlled automated retraction for heavy-duty use. - Q: Can it handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1/2" hose diameter. - Q: Can it be mounted in different orientations?
A: Yes, the swivel mount allows wall, ceiling, or bench installation. - Q: Is outdoor use recommended?
A: The reel is designed primarily for indoor industrial use; protection is advised if used outdoors.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
