Description

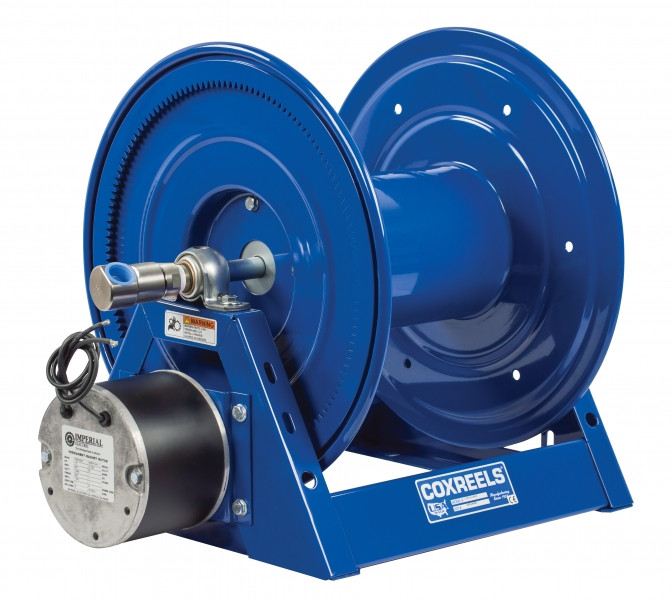

Coxreels HP1125-4-200-EB electric 24V DC 1/2 HP motor rewind hose reel provides automated hose management for up to 200' of 1/2" hose in industrial and maintenance settings. Its 24V DC 1/2 HP motor delivers smooth and reliable hose retraction, reducing manual effort while maintaining high-pressure performance. Rated for 5,000 PSI, the HP1125 Series is suitable for air, water, and oil service, ideal for heavy-duty workshops, chemical service, and industrial applications requiring efficient long-reach hose handling.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Features:

24V DC 1/2 HP motor provides smooth, automated hose rewind for minimal manual effort
Durable steel construction resists industrial wear and impact
Swivel mounting allows flexible wall, ceiling, or bench installation
Adjustable hose stop ensures controlled payout and prevents overextension
Compact design preserves workspace while accommodating full hose length
Mounting hardware included for secure installation

Made in USA:

2 Year Warranty

Applications:

Industrial maintenance and workshop environments requiring high-pressure hose management
Chemical service areas needing reliable DC-powered rewind
Fleet service and tool stations requiring 200' hose deployment
Air, water, or oil transfer applications in demanding industrial settings

FAQs:

Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately.
Q: How is the hose rewind powered?
A: The 24V DC motor provides controlled automated retraction for heavy-duty service.
Q: Can it handle 5,000 PSI applications?
A: Yes, it is rated for up to 5,000 PSI with 1/2" hose diameter.
Q: Can it be mounted in different orientations?
A: Yes, the swivel mount allows wall, ceiling, or bench installation.
Q: Is outdoor use recommended?
A: Designed primarily for industrial indoor use; protection from extreme conditions is advised.

AVAILABLE VARIATIONS AND SPECIFICATIONS−

LESS HOSE												SIZE INDEX
SKU	STANDARD CAP			OPTIONAL CAP. Reducer required			INLET SWIVEL & OUTLET RISER	PSI	HP SKU	HP PSI	APRX. LBS.
SKU	I.D.	O.D.	FT.	I.D.	O.D.	FT.	INLET SWIVEL & OUTLET RISER	PSI	HP SKU	HP PSI	APRX. LBS.
1125-4-200	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-A	5,000	39	2
1125-4-200-A	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-AB	5,000	39	2
1125-4-200-AB	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-C	5,000	39	2
1125-4-200-C	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-E	5,000	39	2
1125-4-200-E	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-EA	5,000	39	2
1125-4-200-EA	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-EB	5,000	39	2
1125-4-200-EB	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-ED	5,000	39	2
1125-4-200-EF	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-EF	5,000	39	2
1125-4-200-ED	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200-H	5,000	39	2
1125-4-200-H	1/2"	7/8"	200	3/8"	3/4"	300	1/2" F NPT	3,000	HP1125-4-200	5,000	39	2

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com

Specifications

Type: Motorized Hose Reel
Series: HP1125 Series
Hose Inside Diameter (in.): 1/2
Hose Outside Diameter (in.): 7/8
Hose Length (ft.): 200
Hose Included: No
Maximum Working Pressure (PSI): 5000

Warranty Information

Two year warranty against defects in workmanship and materials. Coxreels are warranted for a period of two years from the date of sale to original purchaser.
