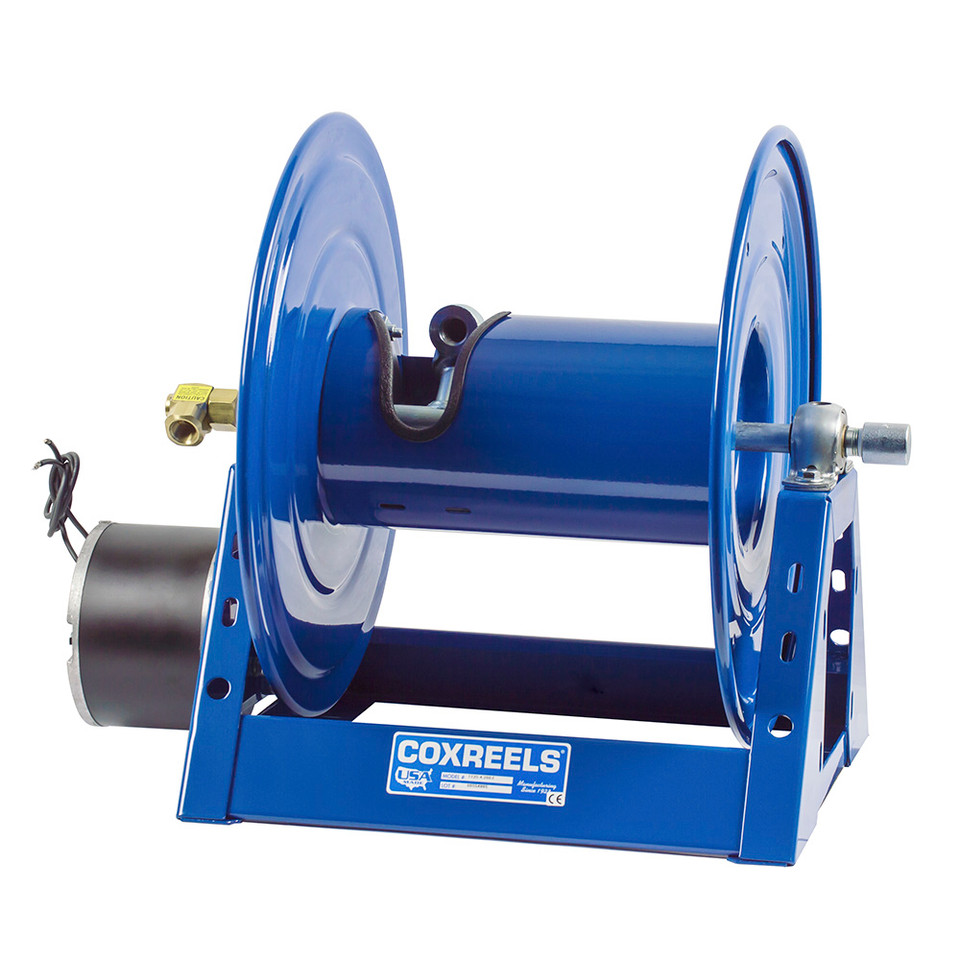

Coxreels 1125-4-200-AB compressed air #6 Gast motor rewind hose reel provides automated hose management for up to 200' of 1/2" hose. Its compressed air-powered #6 Gast motor ensures smooth and reliable hose retraction, reducing manual effort while extending hose life. Rated for 3,000 PSI, the 1125 Series is suitable for air, water, and oil service, making it ideal for industrial maintenance, chemical, and workshop applications requiring dependable hose handling and long reach.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Compressed Air #6 Gast Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil
Features:
- #6 Gast compressed air motor provides smooth, automated hose rewind
- Durable steel construction for industrial wear and impact resistance
- Swivel mounting allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design preserves workspace while accommodating full hose length
- Mounting hardware included for secure installation
Made in USA:
Applications:
- Industrial maintenance and workshop environments requiring automated hose management
- Chemical service areas needing reliable compressed air-powered rewind
- Fleet service and tool stations requiring long 200' hose deployment
- Air, water, or oil transfer applications in heavy-duty industrial settings
FAQs:
- Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: How is the hose rewind powered?
A: The #6 Gast compressed air motor provides automated hose retraction. - Q: Can it handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1/2" hose diameter. - Q: Can it be mounted in different orientations?
A: Yes, the swivel mount allows wall, ceiling, or bench installation. - Q: Is outdoor use recommended?
A: The reel is designed primarily for indoor industrial use; protection is advised if used outdoors.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
