Built for locations that require AC-powered hose retrieval, the Coxreels 1125-4-200-EA Motor Rewind Hose Reel stores up to 200 feet of 1/2-inch I.D. hose and uses a 115V AC, 1/2 HP explosion-proof electric motor to rewind the drum. This 1125 Series reel is suited to fixed industrial installations where compatible electrical service is available and manual retrieval of a long hose assembly would be inefficient. Its 3,000 PSI maximum working pressure supports compatible air, water, oil, lubrication, and hydraulic fluid systems when the separately installed hose and fittings meet the required pressure, temperature, and media ratings.
The reversible motor powers a direct gear drive, transferring force to the reel drum without a chain for smooth, controlled hose retrieval. A low-profile outlet riser and open drum slot encourage an even hose wrap while reducing sharp bends near the connection point. Permanently lubricated self-aligning pillow block bearings support steady drum movement, and the adjustable tension brake helps limit unwanted free-wheeling during payout. The all-welded steel A-frame provides a rigid mounting base for plant maintenance areas, machinery skids, processing equipment, and other stationary hose-management systems.

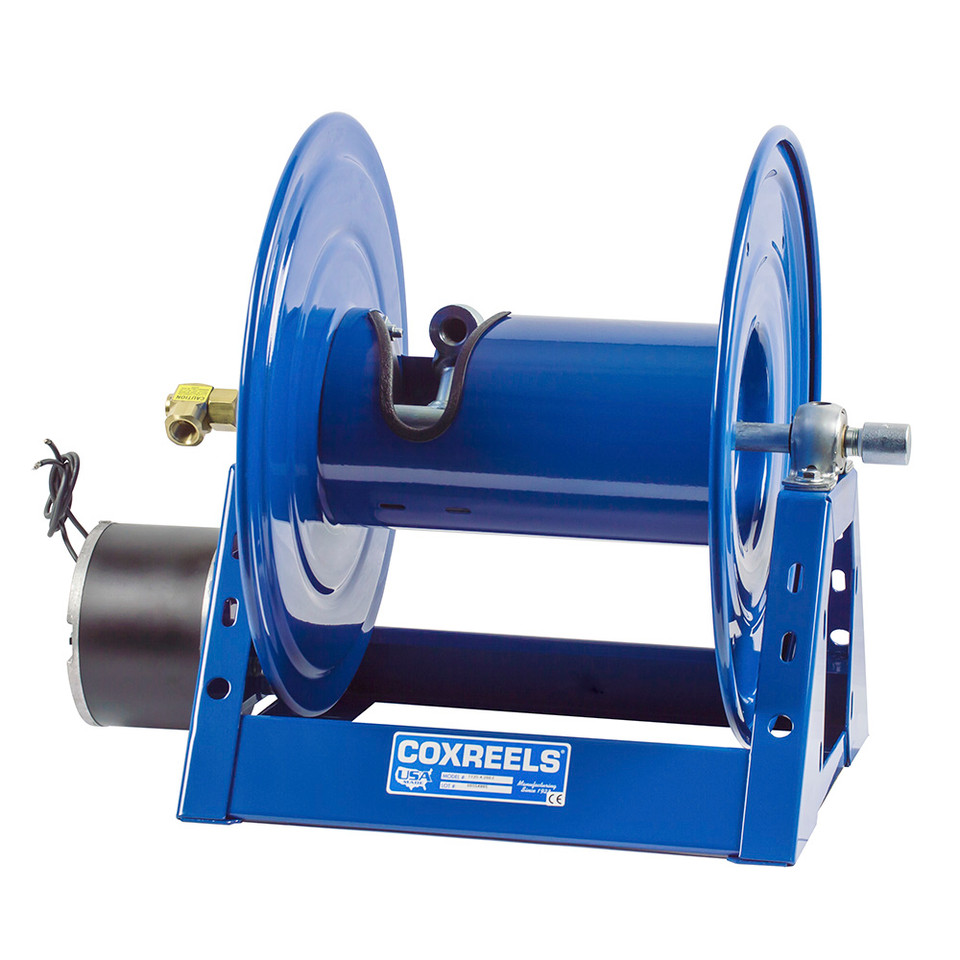

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric AC Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Motor: 115V AC, 1/2 HP Explosion-Proof Reversible Motor | Drive: Direct Gear Drive | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Swivel Inlet: 1/2" Female NPT | Outlet Riser: 1/2" Female NPT | Overall Dimensions: 25.75" W x 19.25" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base Dimensions: 17.38" X x 16" Y
Features:
- 115V AC, 1/2 HP explosion-proof reversible motor provides powered hose retrieval for compatible fixed electrical installations.
- Direct gear drive delivers smooth, quiet drum rotation without a chain-drive mechanism.
- One-piece, all-welded steel A-frame construction creates a rigid mounting platform for stationary equipment and plant installations.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports efficient fluid transfer and serviceable seal replacement.
- Low-profile outlet riser and open drum slot promote a flat, non-crimping hose wrap during payout and rewind.
- Permanently lubricated self-aligning bearings and an adjustable tension brake support smooth, controlled drum operation.
Made in USA:
Applications:
- Industrial maintenance areas requiring powered retrieval of long air, water, oil, or compatible fluid hose.
- Manufacturing and processing facilities equipped with compatible 115V AC electrical service.
- Machinery skids and fixed equipment installations where manual hose rewind would slow routine operations.
- Lubrication and hydraulic service stations handling compatible fluids within the reels pressure rating.
- Facilities requiring an explosion-proof motor configuration as part of a properly evaluated electrical installation.
FAQs:
- Q: Does the Coxreels 1125-4-200-EA include hose?
A: No. This model is supplied as a reel only. Install a compatible 1/2-inch I.D. hose with an outside diameter no greater than 7/8 inch and suitable pressure, temperature, bend-radius, and media ratings. - Q: What does the 'EA' suffix indicate?
A: The EA suffix identifies a 115V AC, 1/2 HP explosion-proof reversible electric motor. The motor powers the direct gear drive used to retrieve the hose. - Q: Can this reel be installed in any hazardous location?
A: No. The explosion-proof motor does not automatically approve the complete reel installation for every hazardous environment. A qualified professional must verify the area classification, wiring method, controls, and all installed components before use. - Q: Can the reel operate at the full 3,000 PSI rating?
A: Yes, provided the hose, fittings, connectors, and every other component in the fluid path are rated for the intended pressure. The completed assembly is limited by its lowest-rated component.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
